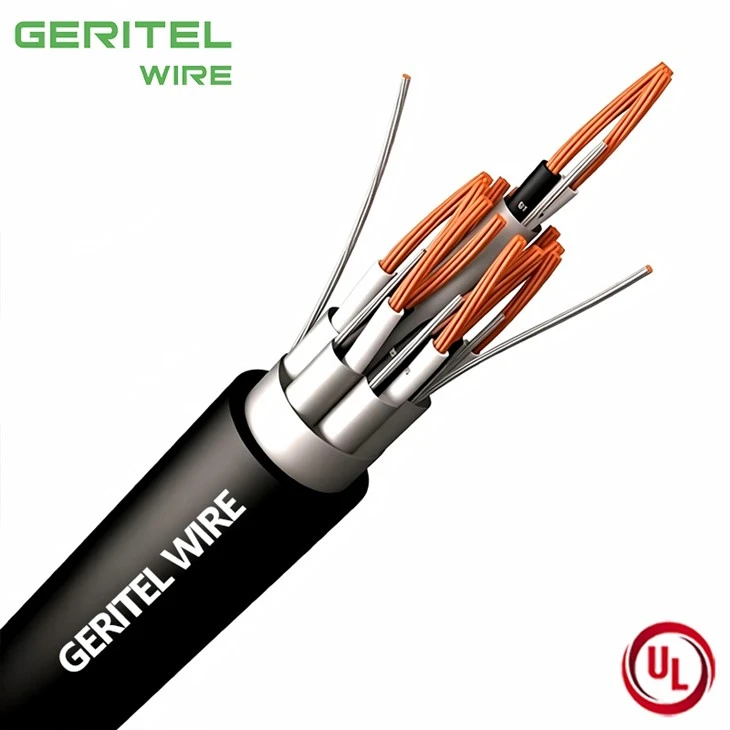

PVC/Nylon/PVC signal and control cable 600V

PRODUCT REAL SHOT

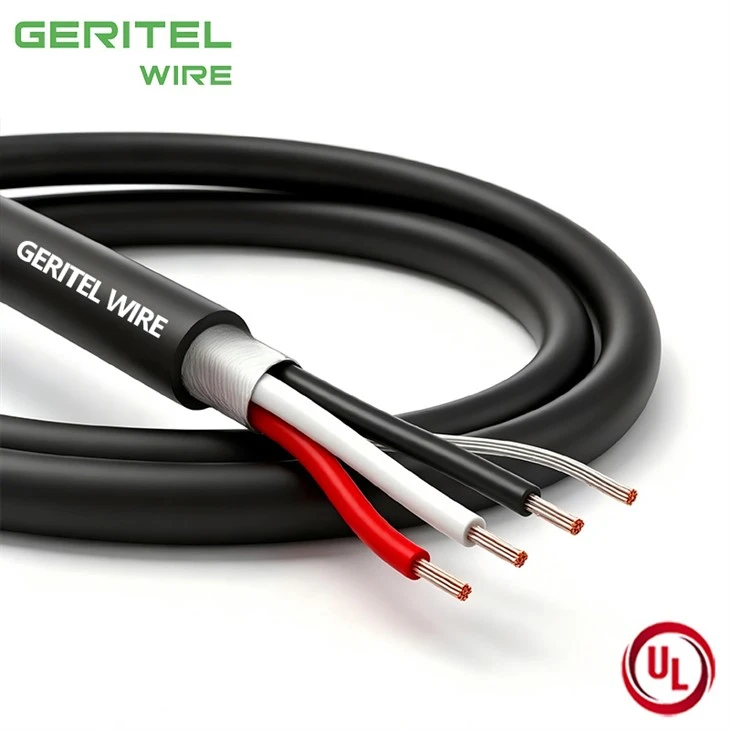

PVC/Nylon/PVC 600V instrumentation cable

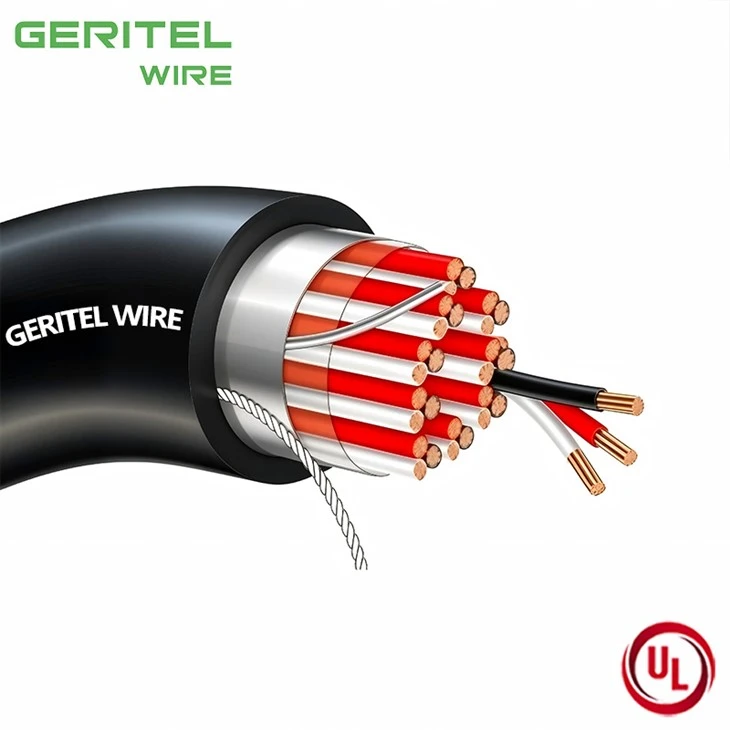

PVC/Nylon/PVC 600V control and instrumentation cable

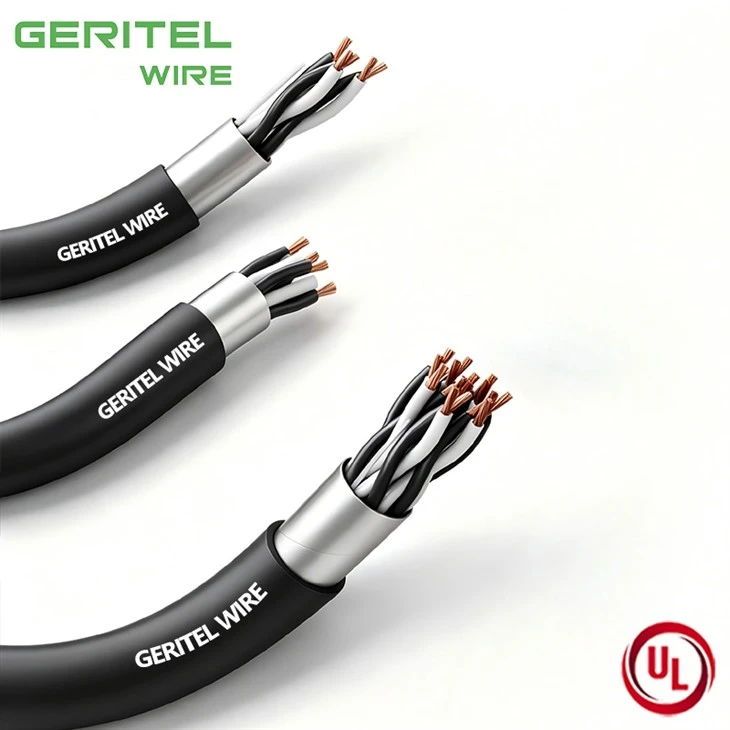

PVC/Nylon/PVC 600V shielded instrumentation cable

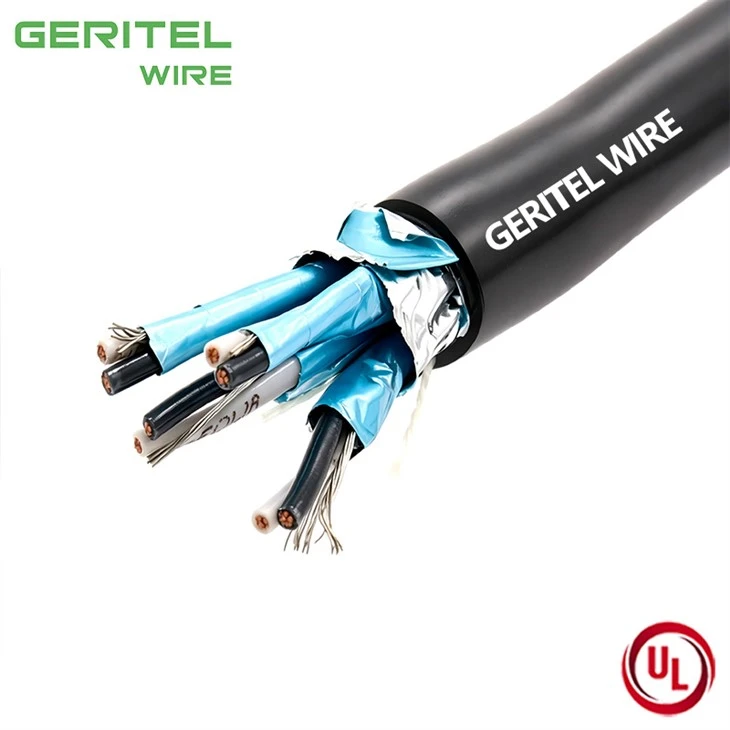

PVC/Nylon/PVC 600V process control cable

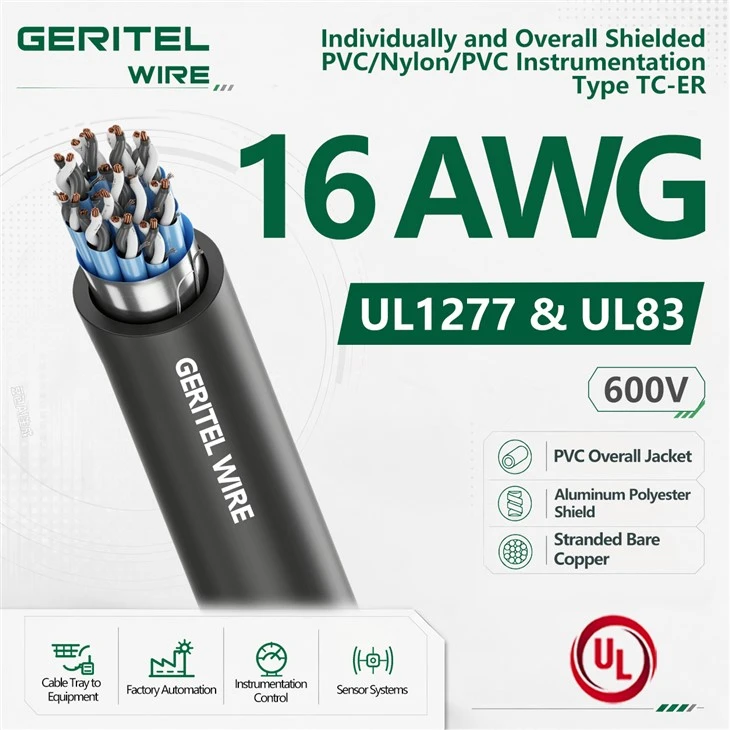

16 AWG TC-ER – Double-Shielded Instrumentation Cable with Nylon Jacket for Enhanced Durability

In industrial automation and process control, a corrupted sensor signal can cause costly production errors or equipment damage. This 16 AWG instrumentation cable solves that risk with individually shielded pairs plus an overall aluminum/polyester shield, delivering two layers of EMI protection for sensitive analog and digital signals. The stranded bare copper conductors provide excellent flexibility for routing through cable trays and conduits, while the PVC/Nylon/PVC construction adds a tough nylon layer that resists abrasion and mechanical stress during installation and service. Certified to UL1277 and UL83 with a 600V rating, this cable is Type TC-ER rated for exposed run tray installations without conduit, making it a practical choice for factory automation, sensor systems, and instrumentation control in demanding industrial environments. The nylon jacket provides superior protection against oil, chemicals, and physical wear, extending cable life in harsh manufacturing settings.

PRODUCT SPECIFICATIONS

PVC Nylon PVC 600V industrial instrumentation cable

Product Description

The PVC/Nylon/PVC, 600V Instrumentation, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors (in pairs or triads), covered with Polyvinyl Chloride (PVC) and clear Nylon insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Used as a non-power-limited fire alarm circuit cable (NPLF) per NEC Article 760
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Polyvinyl Chloride (PVC) covered with Nylon
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE CABLE XXAWG XX/PR (or TR) PVC/NYLON/ PVC OS (or IS or IS/OS) 600V 90C WET OR DRY TYPE TC(or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8, ASTM B33 ASTM B33,UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 57/ICEA S-73-532 FT4/IEEE1202 (flame compliance) NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	-	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(61)
-	1	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(75)
2	-	18	0.020(0.51)	0.045(1.14)	0.40(10.1)	70(101)
3	-	18	0.020(0.51)	0.045(1.14)	0.42(10.7)	90(128)
4	-	18	0.020(0.51)	0.045(1.14)	0.46(11.6)	110(156)
5	-	18	0.020(0.51)	0.045(1.14)	0.50(12.7)	125(186)
7	-	18	0.020(0.51)	0.060(1.52)	0.58(14.6)	180(264)
12	-	18	0.020(0.51)	0.060(1.52)	0.75(19.0)	280(412)
16	-	18	0.020(0.51)	0.060(1.52)	0.83(21.0)	350(520)
20	-	18	0.020(0.51)	0.080(2.03)	0.96(24.3)	465(685)
24	-	18	0.020(0.51)	0.080(2.03)	1.06(26.9)	540(803)
36	-	18	0.020(0.51)	0.080(2.03)	1.21(30.6)	755(1,117)
1	-	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(75)
-	1	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(94)
2	-	16	0.020(0.51)	0.045(1.14)	0.44(11.1)	90(128)
3	-	16	0.020(0.51)	0.045(1.14)	0.46(11.8)	115(165)
4	-	16	0.020(0.51)	0.045(1.14)	0.51(12.9)	140(205)
5	-	16	0.020(0.51)	0.060(1.52)	0.58(14.9)	185(271)
7	-	16	0.020(0.51)	0.060(1.52)	0.63(16.1)	235(347)
12	-	16	0.020(0.51)	0.060(1.52)	0.83(21.0)	375(347)
16	-	16	0.020(0.51)	0.080(2.03)	0.96(24.4)	515(759)
20	-	16	0.020(0.51)	0.080(2.03)	1.06(27.0)	620(918)
24	-	16	0.020(0.51)	0.080(2.03)	1.18(29.9)	730(1,081)
36	-	16	0.020(0.51)	0.080(2.03)	1.34(34.1)	1,025(1,524)

Individually and Overall Shielded

Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	80(112)
3	18	0.020(0.51)	0.045(1.14)	0.46(11.6)	100(143)
4	18	0.020(0.51)	0.045(1.14)	0.50(12.7)	120(177)
5	18	0.020(0.51)	0.060(1.52)	0.58(14.7)	160(236)
7	18	0.020(0.51)	0.060(1.52)	0.63(16.0)	205(300)
12	18	0.020(0.51)	0.060(1.52)	0.82(20.8)	320(474)
16	18	0.020(0.51)	0.080(2.03)	0.95(24.2)	445(657)
20	18	0.020(0.51)	0.080(2.03)	1.05(26.7)	535(792)
24	18	0.020(0.51)	0.080(2.03)	1.17(29.6)	625(930)
36	18	0.020(0.51)	0.080(2.03)	1.33(33.9)	880(1,303)
2	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	95(138)
3	16	0.020(0.51)	0.045(1.14)	0.50(12.8)	125(180)
4	16	0.020(0.51)	0.060(1.52)	0.58(14.8)	170(251)
5	16	0.020(0.51)	0.060(1.52)	0.64(16.2)	205(298)
7	16	0.020(0.51)	0.060(1.52)	0.69(17.6)	260(384)
12	16	0.020(0.51)	0.080(2.03)	0.95(24.2)	450(669)
16	16	0.020(0.51)	0.080(2.03)	1.05(26.8)	570(846)
20	16	0.020(0.51)	0.080(2.03)	1.17(29.6)	690(1,026)
24	16	0.020(0.51)	0.080(2.03)	1.30(32.9)	815(1,209)
36	16	0.020(0.51)	0.080(2.03)	1.48(37.6)	1,150(1,711)
