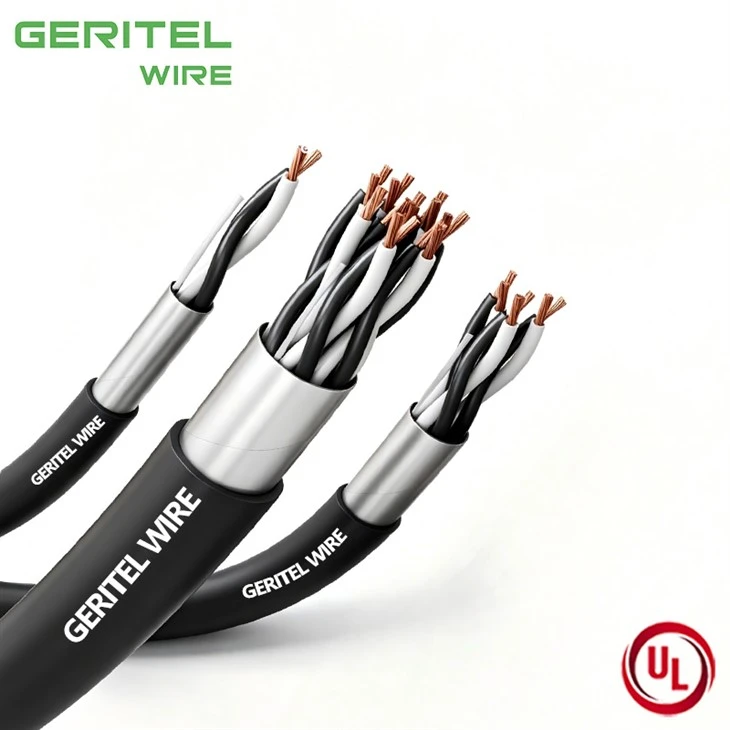

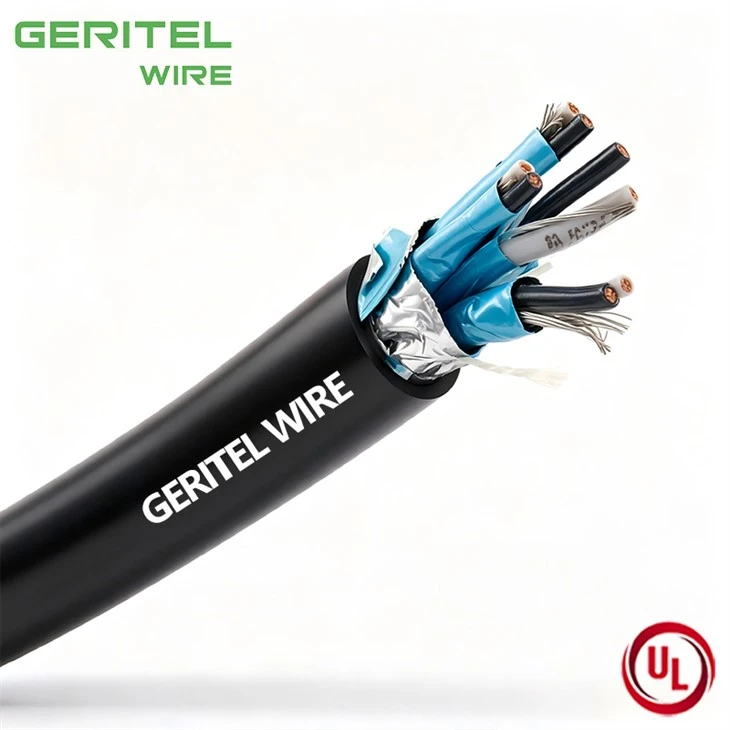

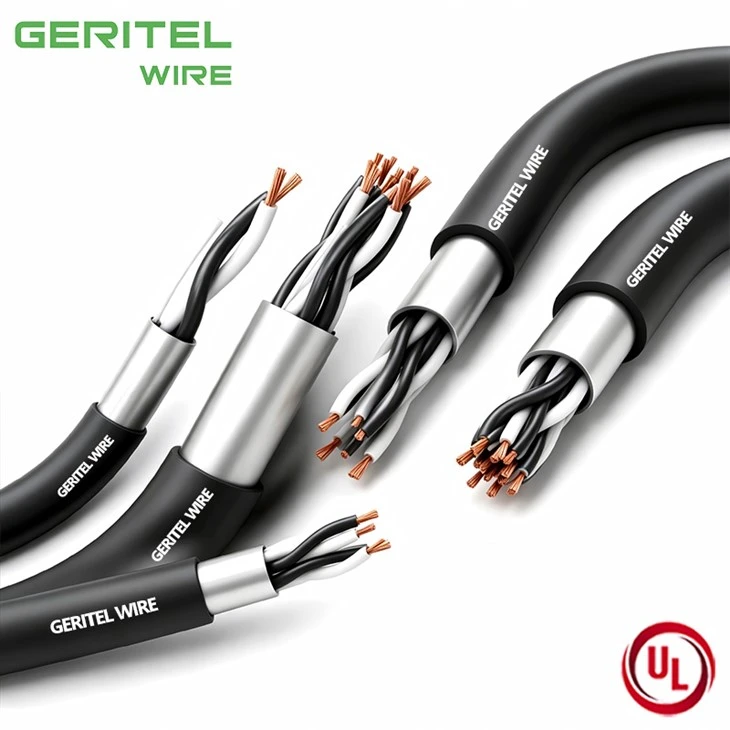

18 AWG Individually and Overall Shielded XLPE/PVC 600V Instrumentation Type TC-ER Cable for Industrial Instrument Signal Transmission

This industrial signal tray cable is the standard 18 AWG Individually and Overall Shielded XLPE/PVC 600V Instrumentation Type TC-ER cable, also known as the full-spec 18 AWG Individually and Overall Shielded 600V XLPE/PVC instrumentation cable, designed with dual individual-and-overall foil shielding to outperform basic single-shielded 18 AWG Overall Shielded XLP/PVC instrumentation cable. Built with Class B fully annealed bare copper conductors, durable XLPE insulation and black PVC outer jacket, it is rated 600V & 90°C for both wet and dry locations, fully compliant with UL 1277 and UL 1685 TC-ER tray cable standards. It supports exposed run, cable tray, conduit and direct burial installation, ideal for precision control systems, alarm circuits, audio intercom and energy management wiring.

PRODUCT SPECIFICATIONS

30 pair overall shielded XLPE/PVC TC-ER cable

Product Description

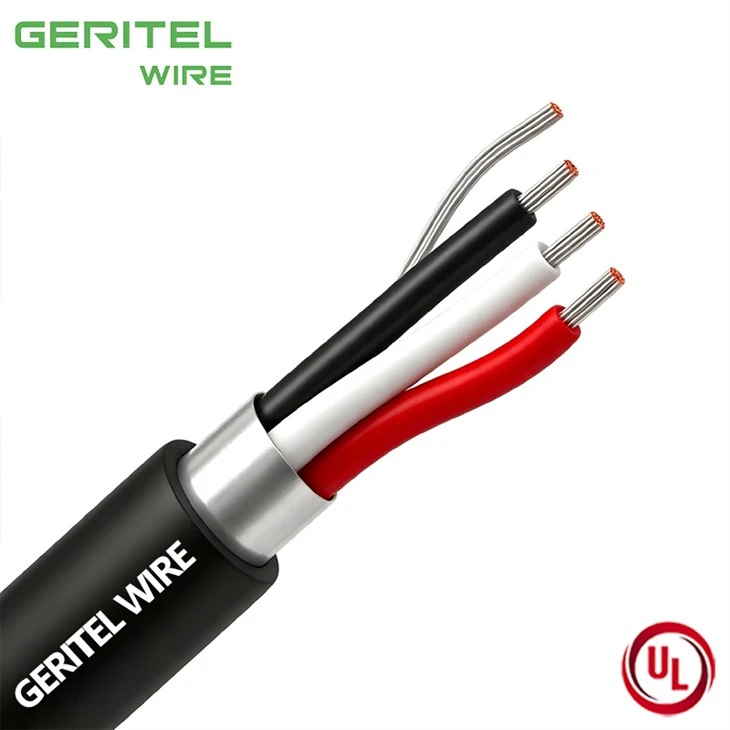

The XLPE/PVC, 600V Instrumentation, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors (in pairs or triads), covered with Cross-linked Polyethylene (XLPE) insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Cross-linked Polyethylene (XLPE)
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE CABLE XXAWG XX/PR (or TR) XLPE/PVC OS (or IS or IS/OS) 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8, ASTM B33 UL® 44 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 57/ICEA S-73-532
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	18	0.030(0.76)	0.045(1.14)	0.32(8.2)	50(68)
-	18	0.030(0.76)	0.045(1.14)	0.34(8.6)	60 (83)
2	18	0.030(0.76)	0.045(1.14)	0.46(11.7)	80(113)
4	18	0.030(0.76)	0.060(1.52)	0.57(14.5)	135(198)
8	18	0.030(0.76)	0.060(1.52)	0.73(18.5)	220(326)
12	18	0.030(0.76)	0.080(2.03)	0.92(23.5)	345(506)
16	18	0.030(0.76)	0.080(2.03)	1.02(26.0)	425(629)
20	18	0.030(0.76)	0.080(2.03)	1.13(28.7)	510(753)
24	18	0.030(0.76)	0.080(2.03)	1.26(31.9)	595(882)
36	18	0.030(0.76)	0.080(2.03)	1.44(36.5)	820(1,219)
1	16	0.030(0.76)	0.045(1.14)	0.35(8.8)	60 (83)
-	16	0.030(0.76)	0.045(1.14)	0.37(9.3)	70(102)
2	16	0.030(0.76)	0.045(1.14)	0.50(12.7)	95(140)
4	16	0.030(0.76)	0.060(1.52)	0.62(15.7)	170 (249)
8	16	0.030(0.76)	0.060(1.52)	0.80(20.2)	285(421)
12	16	0.030(0.76)	0.080(2.03)	1.01(25.6)	440(651)
16	16	0.030(0.76)	0.080(2.03)	1.12(28.4)	550(817)
20	16	0.030(0.76)	0.080(2.03)	1.24(31.4)	665(986)
24	16	0.030(0.76)	0.080(2.03)	1.37(34.9)	780(1,159)
36	16	0.030(0.76)	0.080(2.03)	1.57(40.0)	1,095(1,625)
Individually and Overall Shielded
Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.030(0.76)	0.045(1.14)	0.50(12.8)	85(124)
4	18	0.030(0.76)	0.060(1.52)	0.62(15.7)	150(220)
8	18	0.030(0.76)	0.060(1.52)	0.80(20.3)	250(369)
12	18	0.030(0.76)	0.080(2.03)	1.01(25.7)	390(574)
16	18	0.030(0.76)	0.080(2.03)	1.12(28.5)	485(716)
20	18	0.030(0.76)	0.080(2.03)	1.24(31.5)	580(861)
24	18	0.030(0.76)	0.080(2.03)	1.38(35.1)	680(1,010)
36	18	0.030(0.76)	0.080(2.03)	1.58(40.2)	945(1,406)
2	16	0.030(0.76)	0.060(1.52)	0.58(14.7)	120 (175)
4	16	0.030(0.76)	0.060(1.52)	0.67(17.0)	185(271)
8	16	0.030(0.76)	0.080(2.03)	0.91(23.1)	350(517)
12	16	0.030(0.76)	0.080(2.03)	1.10(27.9)	485(719)
16	16	0.030(0.76)	0.080(2.03)	1.22(31.0)	610(906)
20	16	0.030(0.76)	0.080(2.03)	1.36(34.4)	740(1,095)
24	16	0.030(0.76)	0.080(2.03)	1.51(38.3)	870(1,289)
36	16	0.030(0.76)	0.110(2.79)	1.79(45.5)	1,320(1,963)
