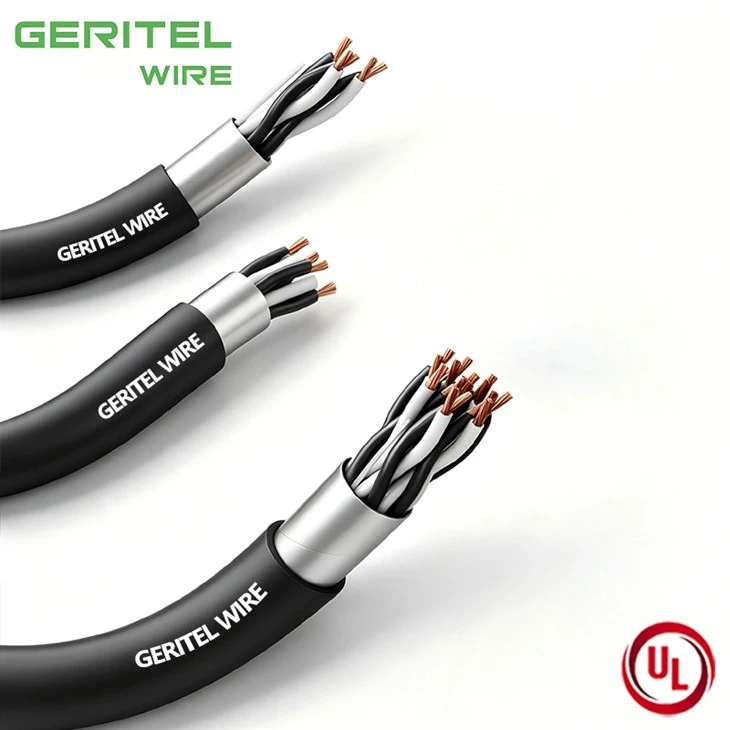

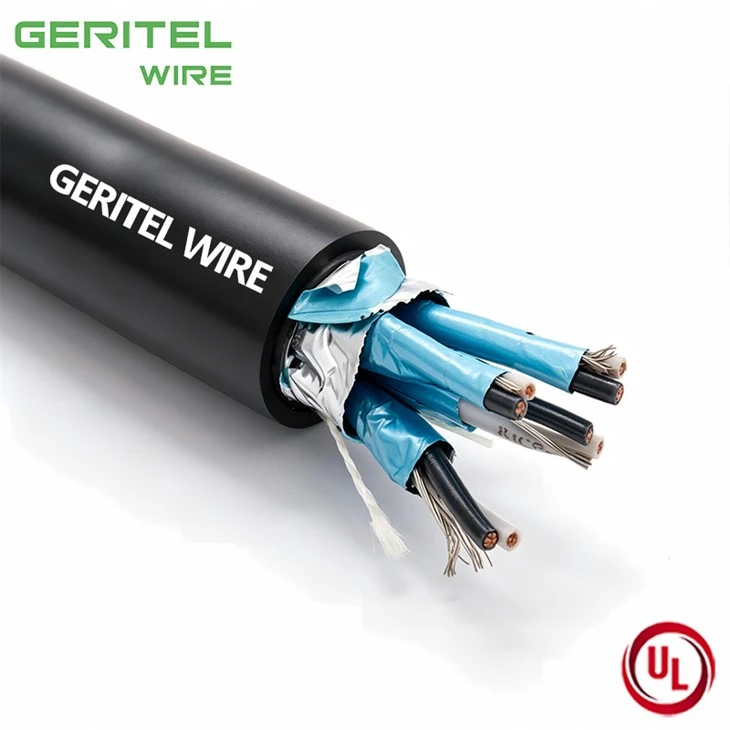

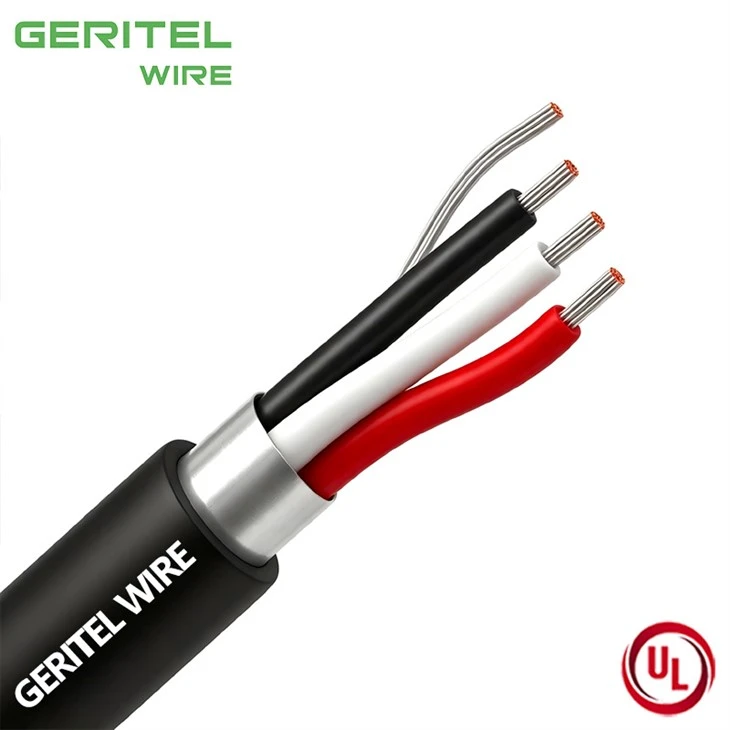

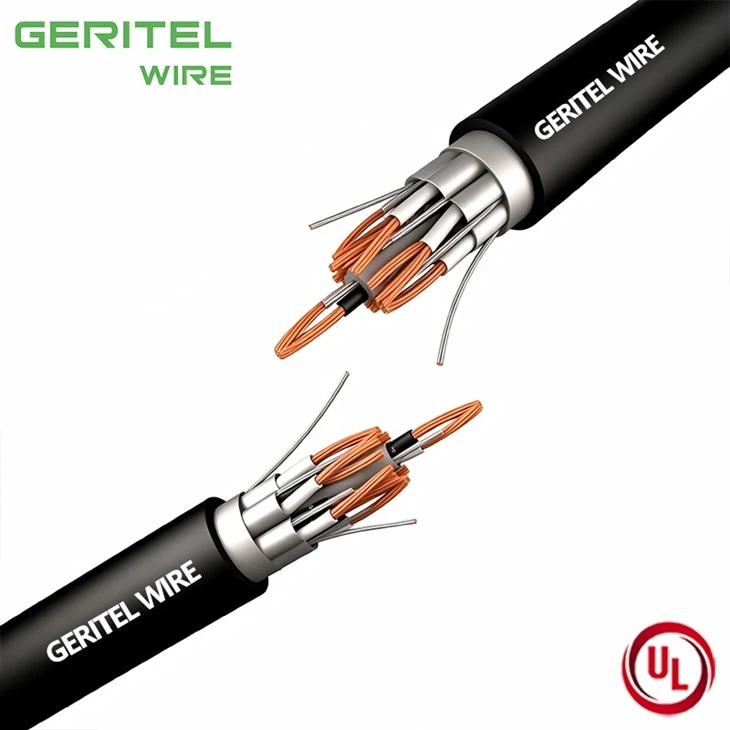

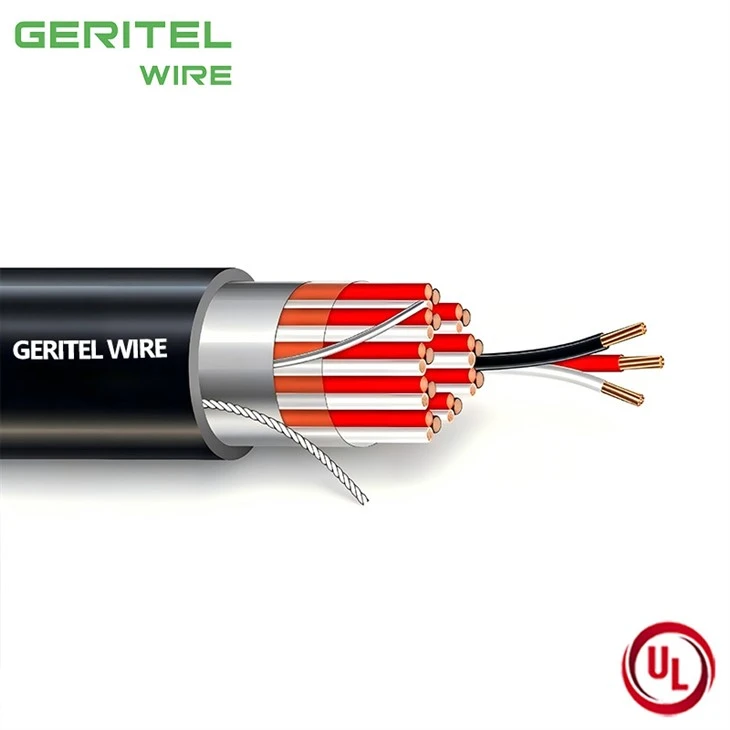

18 AWG TC-ER – Compact Double-Shielded Instrumentation Cable with Nylon Jacket for High-Density Installations

Control cabinets and cable trays in modern factories are more crowded than ever. Fitting multiple instrumentation cables into limited space requires a wire that is both reliable and compact. This 18 AWG instrumentation cable delivers double-shielded protection-individual pair shields plus an overall shield-in a smaller gauge that allows more conductors in the same tray space. The stranded bare copper conductors provide flexibility for installation, while the PVC/Nylon/PVC construction adds a rugged nylon layer that resists abrasion, oil, and mechanical stress in demanding industrial environments. UL1277 and UL83 certified with a 600V rating, this cable is Type TC-ER rated for exposed run tray installations, eliminating the need for conduit and reducing installation costs. The 18 AWG size is ideal for applications requiring dense wiring in factory automation systems, instrumentation panels, and sensor networks where space is at a premium but signal integrity cannot be compromised.

PRODUCT SPECIFICATIONS

600V TC-ER PLTC ITC TC-ER instrumentation cable

Product Description

The PVC/Nylon/PVC, 600V Instrumentation, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors (in pairs or triads), covered with Polyvinyl Chloride (PVC) and clear Nylon insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Used as a non-power-limited fire alarm circuit cable (NPLF) per NEC Article 760
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Polyvinyl Chloride (PVC) covered with Nylon
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE CABLE XXAWG XX/PR (or TR) PVC/NYLON/ PVC OS (or IS or IS/OS) 600V 90C WET OR DRY TYPE TC(or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8, ASTM B33 ASTM B33,UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 57/ICEA S-73-532 FT4/IEEE1202 (flame compliance) NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	-	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(61)
-	1	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(75)
2	-	18	0.020(0.51)	0.045(1.14)	0.40(10.1)	70(101)
3	-	18	0.020(0.51)	0.045(1.14)	0.42(10.7)	90(128)
4	-	18	0.020(0.51)	0.045(1.14)	0.46(11.6)	110(156)
5	-	18	0.020(0.51)	0.045(1.14)	0.50(12.7)	125(186)
7	-	18	0.020(0.51)	0.060(1.52)	0.58(14.6)	180(264)
12	-	18	0.020(0.51)	0.060(1.52)	0.75(19.0)	280(412)
16	-	18	0.020(0.51)	0.060(1.52)	0.83(21.0)	350(520)
20	-	18	0.020(0.51)	0.080(2.03)	0.96(24.3)	465(685)
24	-	18	0.020(0.51)	0.080(2.03)	1.06(26.9)	540(803)
36	-	18	0.020(0.51)	0.080(2.03)	1.21(30.6)	755(1,117)
1	-	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(75)
-	1	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(94)
2	-	16	0.020(0.51)	0.045(1.14)	0.44(11.1)	90(128)
3	-	16	0.020(0.51)	0.045(1.14)	0.46(11.8)	115(165)
4	-	16	0.020(0.51)	0.045(1.14)	0.51(12.9)	140(205)
5	-	16	0.020(0.51)	0.060(1.52)	0.58(14.9)	185(271)
7	-	16	0.020(0.51)	0.060(1.52)	0.63(16.1)	235(347)
12	-	16	0.020(0.51)	0.060(1.52)	0.83(21.0)	375(347)
16	-	16	0.020(0.51)	0.080(2.03)	0.96(24.4)	515(759)
20	-	16	0.020(0.51)	0.080(2.03)	1.06(27.0)	620(918)
24	-	16	0.020(0.51)	0.080(2.03)	1.18(29.9)	730(1,081)
36	-	16	0.020(0.51)	0.080(2.03)	1.34(34.1)	1,025(1,524)

Individually and Overall Shielded

Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	80(112)
3	18	0.020(0.51)	0.045(1.14)	0.46(11.6)	100(143)
4	18	0.020(0.51)	0.045(1.14)	0.50(12.7)	120(177)
5	18	0.020(0.51)	0.060(1.52)	0.58(14.7)	160(236)
7	18	0.020(0.51)	0.060(1.52)	0.63(16.0)	205(300)
12	18	0.020(0.51)	0.060(1.52)	0.82(20.8)	320(474)
16	18	0.020(0.51)	0.080(2.03)	0.95(24.2)	445(657)
20	18	0.020(0.51)	0.080(2.03)	1.05(26.7)	535(792)
24	18	0.020(0.51)	0.080(2.03)	1.17(29.6)	625(930)
36	18	0.020(0.51)	0.080(2.03)	1.33(33.9)	880(1,303)
2	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	95(138)
3	16	0.020(0.51)	0.045(1.14)	0.50(12.8)	125(180)
4	16	0.020(0.51)	0.060(1.52)	0.58(14.8)	170(251)
5	16	0.020(0.51)	0.060(1.52)	0.64(16.2)	205(298)
7	16	0.020(0.51)	0.060(1.52)	0.69(17.6)	260(384)
12	16	0.020(0.51)	0.080(2.03)	0.95(24.2)	450(669)
16	16	0.020(0.51)	0.080(2.03)	1.05(26.8)	570(846)
20	16	0.020(0.51)	0.080(2.03)	1.17(29.6)	690(1,026)
24	16	0.020(0.51)	0.080(2.03)	1.30(32.9)	815(1,209)
36	16	0.020(0.51)	0.080(2.03)	1.48(37.6)	1,150(1,711)

CERTIFICATIONS

600V UL 1277 TC-ER instrumentation cable

PACKAGING

600V UL 1277 TC-ER signal and control cable

Roll

600V UL 1277 TC-ER process control cable

Plastic Reel

PVC nylon insulation PVC jacket TC-ER cable

Small Wooden Reel

APPLICATION

PVC/Nylon/PVC power and control tray cable 600V

Factory Automation

600V instrumentation cable with PVC nylon insulation

Process Instrumentation

PVC/Nylon/PVC 600V control and instrumentation cable

Water Treatment Control Systems

CASE

PVC/Nylon/PVC 600V signal and control cable

BASF Ludwigshafen Verbund Site

PVC Nylon PVC 600V instrumentation cable

MWRA Deer Island Wastewater Treatment Plant

PVC Nylon PVC 600V process control cable

Siemens Electronic Works Amberg Factory

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

PVC/Nylon/PVC Type TC-ER PLTC ITC instrumentation cable

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

PVC/Nylon/PVC Type TC-ER process control cable

PVC/Nylon/PVC PLTC/ITC instrumentation tray cable

PVC/Nylon/PVC PLTC/ITC signal and control cable

600V Type TC-ER signal and control cable

600V TC-ER PLTC ITC industrial instrumentation cable

600V TC-ER PLTC ITC shielded instrumentation cable

GLOBAL CERTIFICATIONS

600V TC-ER PLTC ITC signal and control cable

CUSTOMER PHOTOS

PVC Nylon PVC 600V TC-ER instrumentation cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

PVC nylon insulation PVC jacket process control cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

18 AWG STOS 600V TC-ER PLTC ITC instrumentation cable

18AWG Overall Shield 600V TC-ER PLTC ITC instrumentation cable

18AWG TOS PVC nylon PVC instrumentation tray cable

600V TC-ER PLTC ITC instrumentation cable for relay wiring

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

1 pair PVC/Nylon/PVC 600V instrumentation cable

FAQ

Why would I choose 18 AWG over 16 AWG for instrumentation?

18 AWG allows more conductors in the same cable tray or conduit space, making it ideal for high-density installations where tray space is limited.

Does the smaller gauge affect signal quality?

For most instrumentation signals (4-20mA, thermocouple, RTD), 18 AWG provides adequate signal quality. For very long runs, consult the signal manufacturer's distance recommendations.

What does the TC-ER rating mean for this cable?

TC-ER allows the cable to be installed exposed in cable trays without conduit, subject to code requirements. This saves installation time and reduces material costs.

Is the nylon jacket necessary for all installations?

The nylon jacket provides extra protection against abrasion and oil, making it particularly beneficial in industrial environments where cables are subject to mechanical stress and chemical exposure. It extends the cable's service life in harsh conditions.
