In the Australian and New Zealand markets, there are extremely high safety requirements for power transmission systems, especially medium voltage cable products. In response to this demand, Greater Cable has launched a series of medium-voltage cables that comply with the AS/NZS 1429.1 standard and have obtained SAA certification, further demonstrating its technical strength and product quality.
1. Certification Standards and Their Significance

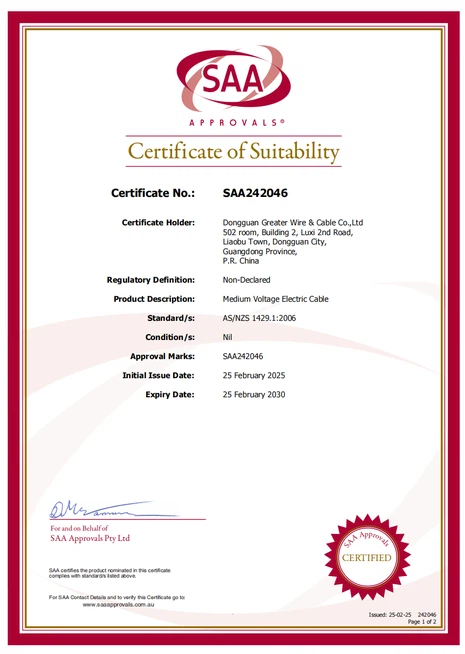

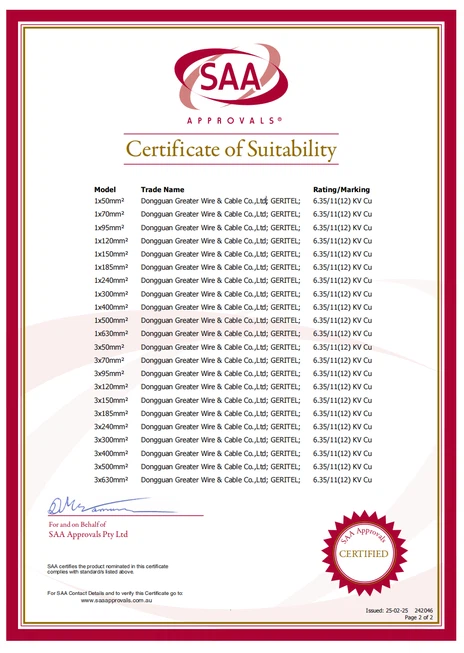

SAA certification is awarded by SAA Approvals, which is authorized by the Joint Accreditation Service of Australia and New Zealand (JAS-ANZ) to conduct third-party safety certification for electrical equipment, ensuring that products comply with Australian safety regulations. The AS/NZS 1429.1 standard specifically targets polymer-insulated medium-voltage cables (polyethylene insulation) with an applicable voltage range of 1.9/3.3 (3.6kV) to 19/33 (36kV).
Greater Cable's mv cables are rated at 6.35/11(12)kV within this range, fully meeting the standard's positioning. This certification is highly valuable to customers: on the one hand, it indicates that the product has passed rigorous safety testing in Australia and New Zealand; on the other hand, it is often a required qualification in engineering bidding and power facility projects, enhancing market competitiveness.
2. Product Specifications and Technical Features
Greater Cable's medium voltage cables cover the following key specifications:
Rated voltage: 6.35/11 (12) kV, belonging to the medium voltage level, suitable for municipal and industrial power supply applications;

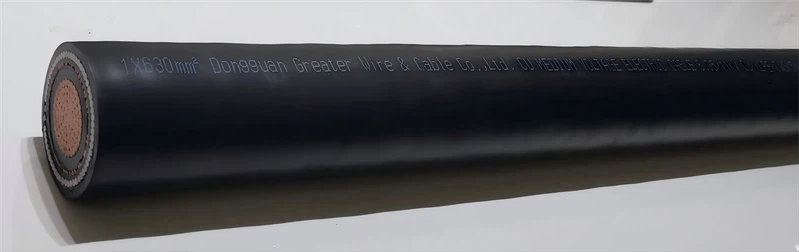

Cross-sectional area range: from 50mm² to 630mm², covering small and medium loads to high power transmission needs, which is conducive to the design of different load capacities;

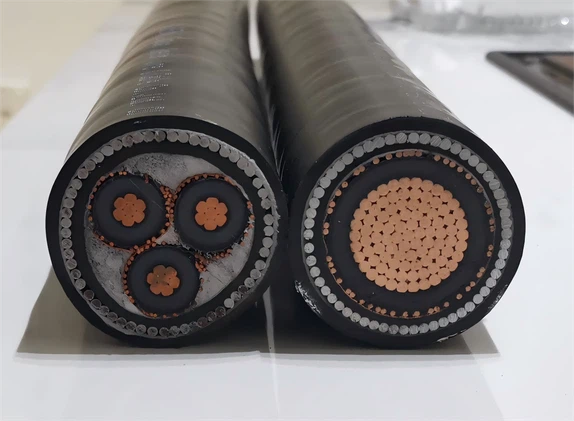

Number of cores: single-core (1 core) and three-core (3 core) structures are available, suitable for different system requirements, such as urban three-phase distribution or single-phase dedicated lines;

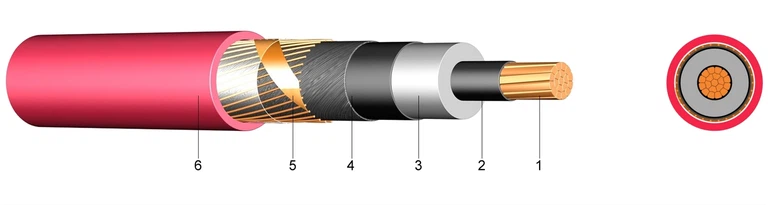

Insulation and structure: XLPE (cross-linked polyethylene) insulation is used, with excellent heat resistance, aging resistance and electrical strength; it also has a shield layer, metal sheath (such as copper or aluminum shield), and PVC or LSZH (low smoke zero halogen) sheath design;
Certification guarantee: The product has obtained SAA certification, ensuring that its insulation, conductor, electrical performance and safety standards comply with the provisions of AS/NZS 1429.1
In addition, Greater Cable's aluminum conductor versions also comply with AS/NZS 1125 conductor specifications and offer advanced structural options, including shielding and armoring, to accommodate applications with harsh mechanical, chemical, and environmental conditions.
3. Application Scenarios and Product Advantages
This SAA-certified AS/NZS 1429.1 (6.35/11kV) medium-voltage cable offers the following significant advantages:
1.Strong Compliance: With safety certification recognized in Australia and New Zealand, it is a compliant option in tenders and system integration.
2.Wide Applications:
Municipal/Industrial Power Distribution: Suitable for substations supplying power to residential areas, industrial parks, and commercial buildings.
Infrastructure: Suitable for the stringent safety and durability requirements of projects such as subways, tunnels, airports, and railways.
Special Environments: Designed for underground, cable trench, overhead, and harsh outdoor environments, it is even available in UV-resistant, flame-retardant, or low-smoke, halogen-free versions.
3.Proven Technical Structure:
XLPE insulation ensures long-term operational reliability.
Shielding and armoring enhance resistance to short circuits and mechanical shock.
Diverse sheath materials meet requirements for chemical corrosion and moisture resistance.
4.Flexible Specifications: Available in sizes from 50mm² to 630mm², with single-core and three-core configurations, to meet diverse project design needs.
4. Summary and Market Outlook
In summary, the AS/NZS 1429.1 medium voltage cable series (rated voltage 6.35/11(12)kV, cross-sectional area 50–630mm², 1–3 core structure) launched by Greater Cable has the following comprehensive advantages:
Authoritative certification support: obtained SAA safety certification, in line with the regulatory compliance requirements of Australia and New Zealand;
Excellent technical performance: XLPE insulation, shielding structure and sheath combination improve safety and durability;
Wide coverage: meet the diverse needs of municipal, industrial and infrastructure fields;
Strong market competitiveness: certification and product compatibility give it a clear advantage in the bidding process and engineering applications.
In the future, Greater Cable can continue to expand more rated voltage and structure combinations, such as 3.8/6.6kV or 12.7/22kV versions in the same series, to meet more diverse engineering design requirements; at the same time, further optimize the sheath material and environmental protection properties (such as low smoke and halogen-free design) to enhance its competitiveness in the high-end market.
