When you are buying battery cable, you will often see two options: bare copper and tinned copper. They look similar. They are both copper. But the difference between them can determine whether your battery connections last for years or fail prematurely.
So which one should you choose?
The answer comes down to one question: where will the cable be installed?
This article explains the difference between bare copper and tinned copper battery cables, when to use each, and how to make the right choice for your application.
1. What Is the Difference Between Bare Copper and Tinned Copper?
The difference is simple: tinned copper is bare copper with a thin layer of tin coating applied to the surface.
Bare copper is exactly what it sounds like-pure copper with no coating. It is the standard conductor material for most electrical applications. It offers excellent conductivity and is cost-effective.
Tinned copper starts with the same bare copper conductor, but it goes through an additional process where a thin layer of tin is electroplated or hot-dipped onto the copper surface. This tin coating is typically 1-2 microns thick-enough to protect the copper without significantly affecting its flexibility.
Why tin? Tin is more resistant to corrosion than copper. The tin layer acts as a sacrificial barrier, protecting the copper underneath from moisture, oxygen, and corrosive chemicals.
A bare copper battery cable is the standard choice for most applications. A tinned copper battery cable is the upgraded version for harsh environments.
2. The Problem with Bare Copper: Oxidation
Bare copper has one weakness: it oxidizes.
When bare copper is exposed to air and moisture, it reacts with oxygen to form copper oxide-a dark, non-conductive layer on the surface of the conductor. Over time, this oxidation layer:
- Increases electrical resistance
- Reduces conductivity
- Creates heat at connection points
- Can cause intermittent connections or complete failure
In dry, indoor environments, oxidation is slow and rarely a problem. But in wet, humid, or corrosive environments, oxidation accelerates.
The corrosion factor. In marine environments, copper corrosion is accelerated by salt water. In industrial settings, chemicals and acids can attack the copper surface. In outdoor installations, rain and humidity take their toll.
For a bare copper battery cable for automotive applications in dry environments, oxidation is minimal. But in marine or coastal applications, the same cable may fail within months.
Tinned copper battery cable corrosion resistance is the key advantage here. The tin layer prevents oxygen and moisture from reaching the copper surface, eliminating oxidation at the source.
3. What Tinned Copper Offers: Protection Without Sacrifice
Tinning copper provides protection without significantly affecting electrical performance.
- Corrosion resistance. The tin layer acts as a barrier against moisture, salt, and chemicals. In marine environments, tinned copper is the standard choice because it withstands salt water exposure that would quickly corrode bare copper.
- Oxidation prevention. Tinned copper does not develop the green or black oxidation layer that bare copper does. This means connections stay clean and conductive over time.
- Solderability. Tinned copper is easier to solder than bare copper. The tin layer accepts solder readily, while bare copper requires more heat and flux to achieve a good solder joint.
- Same conductivity. Tinned copper has essentially the same conductivity as bare copper. The tin layer is so thin that it does not measurably affect current-carrying capacity.
- Longer shelf life. Bare copper oxidizes on the shelf over time. Tinned copper stays clean and solderable for years.
For a tinned copper battery cable, the extra protection comes with a slightly higher price tag-but the longer service life often justifies the cost.
4. Three Key Applications for Bare Copper Battery Cable
Bare copper battery cable is the right choice when the installation environment is dry, clean, and protected. Here are three common applications:
- Indoor battery rooms. In climate-controlled battery rooms, humidity is low and corrosion is minimal. Bare copper performs perfectly for UPS systems, telecom backup power, and data center battery banks. A 35mm² bare copper battery cable is a common choice for indoor battery connections where cost-effectiveness is important and moisture is not a concern.
- Short-term or budget-sensitive projects. If the project has a limited lifespan or budget is the primary concern, bare copper is the more economical choice. For temporary installations or equipment with a 5-10 year service life, the lower cost of bare copper makes sense.
- Automotive applications in dry climates. In vehicles that operate in dry, non-coastal regions, bare copper battery cable is sufficient. A 2 AWG bare copper battery cable is commonly used for starter and ground connections in passenger vehicles and light trucks where the under-hood environment remains relatively dry.
For a bare copper battery cable, the lower cost makes it attractive for applications where corrosion is not a concern. In dry environments, bare copper provides the same electrical performance as tinned copper at a lower price.
5. Three Key Applications for Tinned Copper Battery Cable
Tinned copper battery cable is the right choice when the installation environment is wet, humid, or corrosive. Here are three common applications:
- Marine and boating applications. Salt water is highly corrosive to bare copper. Tinned copper is the standard for marine battery connections. In boats, the combination of salt water, humidity, and vibration makes tinned copper essential for long-term reliability. A 4/0 AWG tinned copper battery cable is commonly used for main battery bank connections in marine vessels, providing both the ampacity needed and the corrosion protection required in salt water environments.
- Coastal and outdoor installations. Even if not directly in salt water, coastal areas have salt in the air. Outdoor installations exposed to rain and humidity benefit from tinned copper. Solar farms, outdoor lighting systems, and coastal industrial facilities all benefit from the extra protection. A 350 kcmil tinned copper battery cable is often specified for large solar storage systems where the cable runs between battery banks and inverters in outdoor or semi-outdoor environments.
- Industrial environments with chemical exposure. Chemical plants, wastewater treatment facilities, and other industrial settings expose cables to corrosive substances. Tinned copper provides the protection needed for long-term reliability in these demanding conditions.
A tinned copper battery cable is the standard choice for marine, coastal, and outdoor applications where corrosion is a real concern. For these environments, the added cost is easily justified by the extended service life.
FAQ
Q1: Is tinned copper more conductive than bare copper?
No. Bare copper has slightly higher conductivity. However, the difference is negligible for battery cable applications. The tin layer is so thin that it does not measurably affect current-carrying capacity.
Q2: Does bare copper corrode in dry environments?
Bare copper oxidizes slowly in dry environments. The oxidation layer is thin and does not significantly affect performance in indoor, climate-controlled conditions.
Q3: How much more does tinned copper cost?
Tinned copper typically costs 10-30% more than bare copper, depending on the gauge and quantity. For most projects, the additional cost is small compared to the cost of replacing corroded cables.
Q4: Can I use bare copper battery cable in a boat?
It is not recommended. Marine environments are highly corrosive to bare copper. Tinned copper is the standard choice for marine battery connections.
Q5: Does tinned copper last longer than bare copper?
Yes, especially in wet or corrosive environments. The tin layer prevents oxidation and corrosion, significantly extending the cable's service life.
Q6: Is tinned copper harder to crimp than bare copper?
No. Tinned copper crimps the same way as bare copper. The tin layer is soft and does not interfere with the crimping process.
Need Bare Copper or Tinned Copper Battery Cable for Your Project?

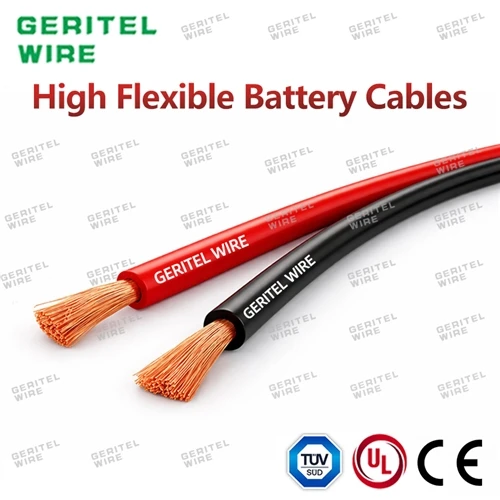

Our flexible copper battery cables are available in both bare copper and tinned copper constructions, with red/black color coding and fine stranding for maximum flexibility. Whether you need 35mm² bare copper for indoor battery rooms, 2 AWG bare copper for automotive applications, or 4/0 AWG and 350 kcmil tinned copper for marine and outdoor installations, we have the right cable for your project.
