In residential and commercial wiring projects across the United States and Canada, NM-B cable (Non-Metallic Sheathed Cable, Type B) is one of the most widely used electrical wires.
When international customers consult us for cable purchases, a common question often arises:
👉 Can NM-B cable be run through walls?
This question is critical, as it relates not only to the safety and compliance of the installation, but also to the cost-effectiveness and efficiency of the wiring project. In fact, wiring inside walls is a core step in residential construction, and NM-B cable is among the most common options. Its applicability and regulatory requirements must be fully understood by contractors, electricians, and overseas buyers alike.
This article focuses on the topic "Can NM-B be run through walls?", providing detailed explanations of NM-B cable structure, NEC compliance, application scenarios, and model selection. We will also compare NM-B with other popular UL-listed cables to provide international customers with a professional, technical buying guide.
Definition and Basics of NM-B Cable
Meaning of NM-B
- NM = Non-Metallic Sheathed Cable.
- B = Heat resistance rating up to 90°C (dry environments).
Thus, NM-B refers to non-metallic sheathed residential-use cable with a 90°C dry temperature rating.

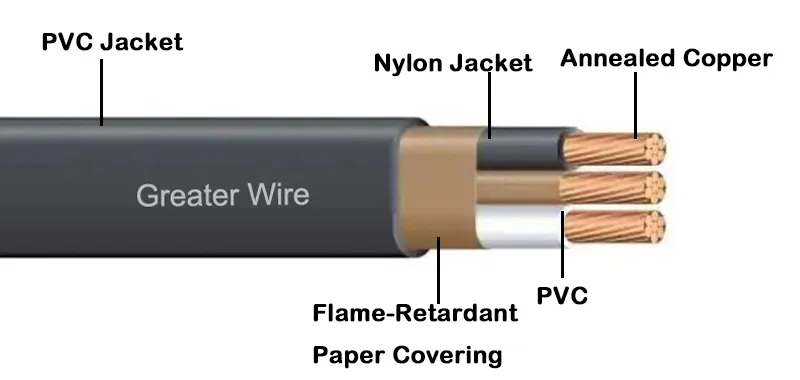

Construction of NM-B Cable
- Copper conductors: Solid or stranded, providing excellent conductivity.
- Insulation: Thermoplastic PVC insulation ensures electrical safety and temperature resistance.
- Outer sheath: PVC jacket, with different colors indicating different sizes (e.g., yellow for 12 AWG, white for 14 AWG).
Common Applications
- Indoor residential branch circuits
- Concealed wall and ceiling wiring
- Lighting and receptacle circuits
Can NM-B Cable Be Run Through Walls? - The Authoritative Answer
NEC Code Compliance
According to NEC (National Electrical Code) Article 334, NM-B cable is approved for use in indoor dry locations, including concealed wall, floor, and ceiling wiring. Therefore, NM-B can absolutely be run through walls.
Usage Conditions and Restrictions
- Dry environments only: NM-B is not rated for wet or damp locations.
- Wall penetrations: Must use bushings or conduit sleeves to protect the cable from sharp edges.
- Exposure limits: Cannot be exposed to sunlight or direct outdoor conditions.
Real Engineering Examples
- Residential receptacle circuits: Living room and bedroom receptacles wired through wall cavities.
- Lighting circuits: Switch-to-light runs through walls and ceilings.
- Kitchen circuits: Powering ovens, refrigerators, and small appliances through walls.
✅ Conclusion: NM-B cable can be safely installed inside walls, as long as NEC regulations and correct installation practices are followed.
When Do You Need to Run Cable Through Walls?
Running NM-B cable through walls is often required in residential and light commercial construction. Typical scenarios include:
- New home construction: All branch circuits for receptacles, switches, and lighting must be routed through studs and wall cavities.
- Renovation projects: When adding new outlets or lighting points, cables need to be fished through existing walls.
- Appliance installations: Large appliances such as ovens, dryers, or water heaters require dedicated circuits that often pass through walls.
- Code compliance: In most U.S. installations, electrical wiring must be concealed inside walls or ceilings for safety and aesthetics, rather than left exposed.
👉 In short, any time wiring must connect devices located in different rooms, or when outlets and lights are mounted on walls, NM-B cable is typically run through the wall cavities.
Comparing NM-B With Other Cable Types
To help buyers better understand the strengths and limitations of NM-B, here's a comparison with other common UL-listed wires:
| Cable Type | Typical Applications | Wall Use | Temperature Rating | Moisture Resistance | Notes |
|---|---|---|---|---|---|
| NM-B | Indoor residential wall wiring | ✅ | 90°C (dry only) | ❌ | Most common for U.S. homes |
| THHN | Conduit installations, commercial projects | Requires conduit | 90°C (dry/wet) | ✅ | Common in industrial wiring |
| UF-B | Direct burial or outdoor use | ✅ | 90°C | ✅ | Can run in walls, but designed for outdoor |
| XHHW | High-moisture, high-heat environments | Requires conduit | 90°C–110°C | ✅ | Used in industrial and power distribution |
- 📌 Key takeaway:
- NM-B is ideal for indoor wall wiring.
- THHN/XHHW are better suited for conduit and industrial/commercial use.
- UF-B is the go-to option for outdoor or underground installations.
How to Select the Right NM-B Cable Model?
By Ampacity (Current Load)
- 14 AWG: 15A circuits (lighting, standard outlets)
- 12 AWG: 20A circuits (kitchen receptacles, small appliances)
- 10 AWG: 30A circuits (water heaters, A/C units)
- 8 AWG – 6 AWG: Higher loads, major appliances, or feeder cables
By Installation Environment
- Wall & ceiling wiring: NM-B
- Conduit runs: THHN or XHHW
- Outdoor/underground: UF-B
Cable Selection Guide
| Wire Gauge (AWG) | Ampacity | Common Applications | Wall Wiring Suitable |
|---|---|---|---|
| 14 AWG | 15A | Lighting, outlets | ✅ |
| 12 AWG | 20A | Kitchens, small appliances | ✅ |
| 10 AWG | 30A | Water heaters, A/C | ✅ |
| 8 AWG | 40A | Ranges, dryers | ✅ |
| 6 AWG | 55A | Large appliances, feeders | ✅ |
Real-World Applications of NM-B Wall Wiring
- Residential outlets: Bedroom and living room receptacle circuits.
- Lighting systems: Switch-to-light runs concealed in walls.
- Kitchen and bathroom wiring: Ovens, refrigerators, and exhaust fans.
- Heavy appliances: Electric dryers, water heaters, and HVAC systems.
⚠️ Reminder: If circuits extend outdoors, UF-B or THHN must be used to comply with moisture and sunlight resistance requirements.
Why Choose Us as Your Electrical Wire Supplier?
In a competitive cable market, choosing a certified, reliable, and service-oriented supplier is essential.
Product Advantages
- Full range of NM-B, THHN, UF-B, XHHW UL-listed cables
- Coverage from 14 AWG – 6 AWG standard models
Certification Guarantee
- UL & cUL certifications, fully compliant with U.S. and Canadian markets
Strong Supply Capability
- Fast delivery
- Support for both small-batch test orders and large-scale projects
Service Excellence
- Full technical support from selection to installation
- Pre-sales and after-sales service for worry-free cooperation
Global Cooperation
- Years of manufacturing and export experience
- Long-term partnerships across North America, Europe, and the Middle East
👉 Whether you are an independent contractor or a large-scale engineering company, we provide professional technical guidance, reliable supply capacity, and responsive support.
Key Takeaways and Call to Action
- Technical conclusion: NM-B cable can be safely run through walls under NEC compliance.
- Selection advice: Match cable gauge to circuit ampacity and environment.
- Why us: Certified UL cables, full range of models, quick delivery, and professional global service.
✅ Looking for a reliable supplier of NM-B, THHN, UF-B, or XHHW cables? We are your trusted partner.
