In modern construction and electrical projects, choosing the right wire is not only about ensuring power delivery-it is about guaranteeing safety, compliance, and reliability. A seemingly small decision in wire selection can lead to significant consequences: fire hazards, system failures, or even safety risks to people and property.
For electrical engineers, contractors, and international buyers, understanding the differences between cable types and their applicable environments is essential. One common question we often hear from customers in the North American market is:
"Is NM-B wire plenum rated? Can it be installed in air handling spaces or HVAC plenum areas?"
This article will provide a detailed answer. We will analyze the features of NM-B wire, define what Plenum rating means, highlight real-world application scenarios, compare different cable types, and explain how to choose the right model for your project. Before answering whether NM-B is plenum rated, let's first review the basics of NM-B wire.
What is NM-B Wire?
NM-B stands for Non-Metallic Sheathed Cable, Type B, which is one of the most commonly used residential wires in the United States. It is designed for dry, indoor use and complies with the National Electrical Code (NEC) requirements.

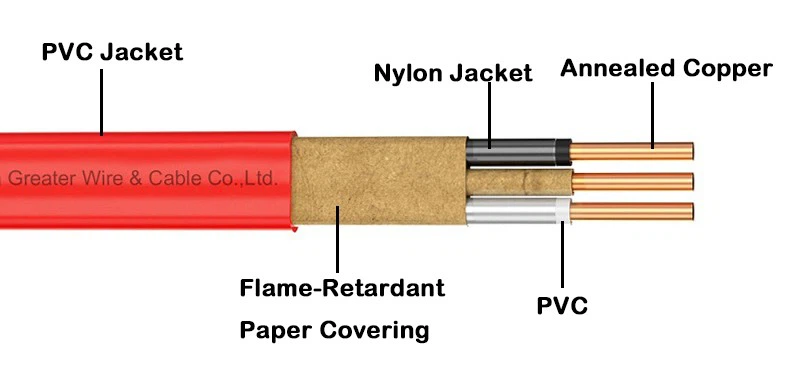

Structure of NM-B Wire
Typical NM-B cable consists of:
- Conductor: Solid or stranded copper conductors for stable conductivity.
- Insulation: Thermoplastic PVC insulation with basic flame-retardant properties.
- Outer Sheath: PVC jacket, usually yellow, orange, or black, with printed identification such as "NM-B 12/2."
Applications of NM-B Wire
- NM-B is widely used in:
- Residential lighting circuits
- Outlet and receptacle wiring
- Small appliance branch circuits
⚠️ Important note: NM-B is not suitable for outdoor use, wet locations, direct burial, or exposed installations.
What Does "Plenum Rated" Mean?
To understand whether NM-B qualifies as plenum rated, we need to clarify what Plenum spaces are and why stricter standards exist.
Definition of Plenum Space
A Plenum space refers to the part of a building used for air circulation, such as air return ceilings, HVAC ducts, or ventilation chambers. Because these areas circulate air throughout a building, any smoke or toxic fumes generated by a fire can spread extremely quickly, posing serious risks to people inside.
Fire Safety Requirements for Plenum Cable
The NEC requires that cables installed in plenum spaces must meet CMP (Communications Plenum Cable) requirements, which include:
- Higher flame resistance
- Minimal smoke generation
- Low toxicity emissions
Comparison of Cable Ratings
| Rating | Suitable Environment | Key Features |
|---|---|---|
| CMP (Plenum Rated) | HVAC ducts, return air ceilings | Highest flame resistance, low smoke, low toxicity |
| CMR (Riser Rated) | Vertical riser shafts between floors | Moderate flame resistance, not for plenum |
| CM/CMG (General Purpose) | General wiring | Basic flame resistance, lowest protection |
Is NM-B Wire Plenum Rated?
The answer is no-NM-B wire is not plenum rated.
Reasons why:
- Jacket Material Limitation
The PVC outer jacket of NM-B only meets residential flame-retardant standards. It does not comply with the strict CMP requirements for plenum spaces.
- Restricted Application
NM-B is designed only for dry, enclosed spaces such as walls, floors, and ceilings. It is not suitable for HVAC ducts or air return spaces.
- Code Compliance
According to NEC Article 300.22, only Plenum-rated cables may be installed in air-handling spaces. NM-B is not listed as an approved option.
👉 In summary: NM-B is safe for residential wiring but cannot be installed in plenum areas. If your project requires wiring in HVAC or return air spaces, you must use CMP-rated cables.
Real-World Application Examples
To better illustrate the difference, let's look at some common installation scenarios:
| Application Scenario | Can NM-B Be Used? | Recommended Cable | Explanation |
|---|---|---|---|
| Residential wall wiring | ✅ Yes | NM-B | Meets NEC requirements, cost-effective |
| Attic wiring in a house | ✅ Yes | NM-B | Suitable for dry environments |
| Commercial return air ceiling | ❌ No | CMP (Plenum Cable) | NM-B lacks low-smoke, high-flame resistance |
| Hospital HVAC ducts | ❌ No | CMP | Strict fire safety requirements |
| Vertical riser shaft | ❌ No | CMR | NM-B not designed for riser environments |
How to Select the Right Cable Model
Choosing the correct cable depends on installation environment, fire rating requirements, and compliance with NEC standards. Below is a practical selection guide:
| Cable Type | Plenum Rated? | Typical Applications | Key Features |
|---|---|---|---|
| NM-B | ❌ No | Residential walls, floors, ceilings | Cost-effective, easy to install |
| THHN/THWN | ❌ No | Conduit wiring in commercial/industrial sites | Heat and moisture resistant |
| UF-B | ❌ No | Direct burial wiring outdoors | Moisture resistant, suitable for underground |
| XHHW | ❌ No | High-temperature and wet environments | Stronger insulation, oil resistance |
| CMP (Plenum Cable) | ✅ Yes | HVAC ducts, return air ceilings | Highest fire rating, low-smoke, halogen-free |
👉 Key takeaway: NM-B is ideal for residential wiring but never for plenum applications. For HVAC or air-handling areas, CMP is the only compliant option.
