Pumps, fans, and compressors are the workhorses of every industrial facility, and their reliable operation depends entirely on the motor control cables that power them. A single cable failure can bring production to a halt, costing thousands of dollars in downtime and repairs. Yet many engineers and maintenance teams still use generic control cables that were never designed for the unique demands of motor applications. This article explains how to select the right motor control cable for your pumps, fans, and compressors, with a focus on UL1277 certified TC-ER cable solutions.
1. Why Generic Control Cables Fail in Motor Applications
Most standard control cables are designed for low-power signal transmission, not the harsh operating conditions of industrial motors. When used with pumps, fans, and compressors, they frequently fail for three critical reasons:
· Voltage surges and EMI: Every time a motor starts, it generates powerful voltage spikes and electromagnetic interference (EMI) that can degrade cable insulation over time. Generic cables lack the necessary shielding and insulation to withstand these repeated surges, leading to premature failure and signal corruption.
· Environmental degradation: Many pumps and compressors operate in outdoor, humid, or oily environments. Ordinary PVC jackets quickly crack, peel, or become brittle when exposed to UV radiation, moisture, or industrial oils, exposing conductors and creating safety hazards.
· Mechanical damage: In industrial settings, cables are often subject to impact, abrasion, and vibration from equipment operation. Generic cables cannot withstand this mechanical stress, leading to broken conductors and intermittent electrical faults.
These failures are not just inconvenient-they can cause catastrophic motor damage, production downtime, and even electrical fires. The good news is that there is a better solution: TC-ER motor control cable.
2. The Advantages of TC-ER Cable for Motor Control Applications

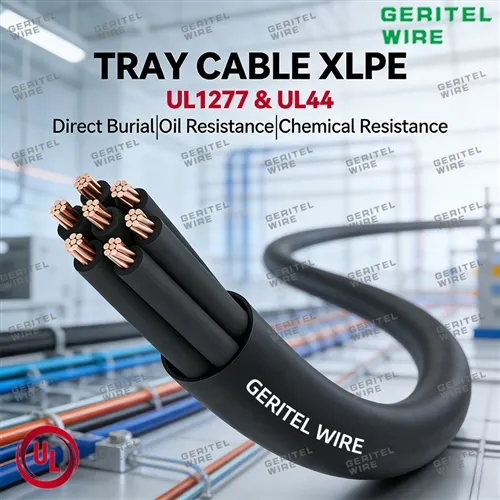

UL1277 certified TC-ER cable (Tray Cable-Exposed Run) is specifically engineered to meet the rigorous demands of industrial motor control. Unlike generic control cables or traditional armored cables, TC-ER cable offers a unique combination of performance, safety, and cost-effectiveness:
· Superior EMI and Voltage Surge Protection
TC-ER motor control cable features robust insulation and optional shielding that provides excellent resistance to electromagnetic interference and voltage surges. This ensures clean signal transmission to motor controllers, preventing false trips and extending both cable and motor life. For variable frequency drive (VFD) applications, shielded TC-ER cable is essential to minimize EMI that can disrupt sensitive control systems.
· Indoor and Outdoor Weather Resistance
Indoor outdoor TC-ER cable is formulated with a heavy-duty PVC jacket that resists UV radiation, moisture, and temperature extremes. This means you can use the same cable for both indoor and outdoor applications, simplifying inventory management and reducing installation complexity. Unlike standard cables that require additional conduit for outdoor use, TC-ER cable can be installed directly in exposed runs.
· Mechanical Durability
TC-ER cable is built to withstand the rough conditions of industrial environments. Its tough jacket provides excellent resistance to abrasion, impact, and crushing forces, making it ideal for areas with heavy equipment traffic. The cable's flexible construction also resists cracking from repeated bending and vibration, ensuring long-term reliability in motor applications.
· Cost-Effective Exposed Run Installation
One of the biggest advantages of TC-ER cable is its ability to be installed directly without additional conduit or raceway, as permitted by NEC standards. This eliminates the need for expensive aluminum interlocked armor or galvanized steel armor conduit, reducing both material and labor costs significantly. Installation is faster and easier, and future modifications or repairs are simplified.
3. TC-ER Cable vs Armored Cable: Which is Better for Motor Control?
When comparing TC-ER cable vs armored cable for motor control applications, TC-ER cable comes out ahead in almost every category:
· Installation cost: Armored cable requires special tools and skilled labor to cut, bend, and terminate. TC-ER cable can be installed with standard tools, reducing labor costs by up to 50%.
· Weight and flexibility: Armored cable is heavy and rigid, making it difficult to handle and install in tight spaces. TC-ER cable is lightweight and flexible, allowing for faster and easier routing.
· Maintenance: Armored cable is prone to corrosion at the fittings, which can lead to ground faults. TC-ER cable has no metal components to corrode, requiring less maintenance over its lifespan.
· Performance: Both cables provide excellent mechanical protection, but TC-ER cable offers superior EMI resistance and weatherability for motor control applications.
While armored cable may still be appropriate for certain high-risk environments, TC-ER cable provides a more cost-effective and reliable solution for most pump, fan, and compressor applications.
4. Practical Selection Guidelines for Motor Control Cables
To ensure you select the right cable for your application, follow these essential guidelines:
· Match voltage rating to your system: Choose between Indoor outdoor TC-ER cable for standard applications and 1000V TC-ER cable for higher voltage systems. Dual rated TC-ER cable is also available for applications that require both 600V and 1000V compatibility.
· Select the correct conductor size: Calculate the required conductor cross-section based on the motor's full-load current and voltage rating. Undersized conductors will overheat and fail prematurely.
· Use shielded cable for VFD motors: All variable frequency drive applications require shielded TC-ER cable to prevent EMI interference. Follow proper VFD cable grounding specifications to ensure optimal performance.
· Choose the right core configuration: Select 3/C TC-ER cable for three-phase motors without a neutral, and 4/C TC-ER cable for motors that require a neutral conductor. All cables should include either a bare ground or insulated green ground conductor for safety.
· Consider environmental factors: If your application involves exposure to oils or chemicals, select a TC-ER cable with oil-resistant insulation. Verify the temperature ratings of different insulation materials to ensure they are suitable for your operating environment.
· Verify certifications: Always use cables that meet both UL44 and UL1277 requirements for motor control cables. These certifications ensure the cable has been tested and approved for industrial applications.
5. Frequently Asked Questions
Q: Can I use regular THHN/THWN-2 wire for motor control?
A: While THHN/THWN-2 wire is commonly used for power wiring, it lacks the necessary shielding and mechanical protection for motor control applications. It is also not approved for exposed run installations without conduit.
Q: Is TC-ER cable suitable for outdoor use?
A: Yes, sunlight-resistant TC-ER cable is approved for both indoor and outdoor exposed run installations. It provides excellent resistance to UV radiation, moisture, and temperature extremes.
Q: What is the difference between shielded and unshielded TC-ER cable?
A: Shielded TC-ER cable includes a foil or braid shield that protects against electromagnetic interference. It is required for all VFD motor applications and recommended for areas with high levels of electrical noise.
Q: How long does TC-ER motor control cable last?
A: When properly installed and maintained, TC-ER cable has a service life of 25-30 years, significantly longer than generic control cables.
