In electrical engineering, cables are not only the core carriers of electricity but also critical for ensuring safety and reliable operation. Different cable colors often indicate different functions and technical characteristics. Orange cables, known for their high visibility and easy identification, are widely used in commercial buildings, industrial facilities, mining operations, and railway systems.
A common question among engineers and purchasers is: "Does an orange cable imply it is a Fire Rated Cable or a Fire-Resistant Cable?" Selecting the appropriate cable is essential for safety, regulatory compliance, and long-term project reliability.
This article provides a comprehensive analysis of orange cables, explains the differences between Fire-Resistant and Fire Rated cables, covers relevant standards and applications, offers a selection guide, helping users choose the right cable efficiently.
Basic Concept of Orange Cable
What is an Orange Cable?

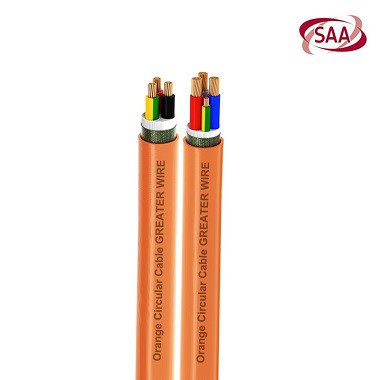

An orange cable refers to a cable with an orange outer sheath, used primarily for high visibility and identification purposes. Common types include:
- Orange Circular Cable: Flexible round-sheath cable suitable for indoor and outdoor industrial installations.
- TPS Cable: Thermoplastic insulated cable suitable for data, control, and power wiring.
- VSD Cable: Used for variable speed drives and motor systems, resistant to interference and high temperature.
- Fire Rated Cable: High fire-resistance performance, tested to specific fire standards.
- Elastomer Cable: Rubber insulated cable, resistant to mechanical wear and chemical corrosion.
- Heavy Duty / Ordinary Duty Cable: Suitable for industrial and general purposes.
- SWA Cable (Steel Wire Armoured): High mechanical strength cable for underground or heavy industrial use.
- Other types: Building Cable, Earthing Cable, Neutral Screen Cable, Instrumentation Cable, Mining Cables, SDL Cable, Rubber Cable.
Key Features:
- High wear and corrosion resistance for demanding environments.
- High visibility for easier identification and maintenance.
- Customizable length, specification, sheath material, and color.
Relationship Between Orange Cable and Fire Performance
In cable applications, Fire-Resistant Cable and Fire Rated Cable are core concepts:
- Fire-Resistant Cable: Maintains power supply for a short period during a fire, ensuring critical systems like emergency lighting or fire alarms remain operational.
- Fire Rated Cable: Tested for fire resistance, able to prevent flame spread and protect building structures and other cables.
Note: An orange cable does not inherently indicate fire or heat resistance, but selected models can have Fire-Resistant or Fire Rated specifications.
Fire-Resistant vs Fire Rated Cable Analysis
Differences
| Feature | Fire-Resistant Cable | Fire Rated Cable |
|---|---|---|
| Definition | Maintains power during fire for short-term operation of critical systems | Flame-retardant performance tested to prevent fire spread |
| Main Function | Power continuity | Fire safety and structural protection |
| Power Supply Duration | Limited (e.g., 30–90 minutes) | Not focused on continuous supply, emphasizes fire rating |
| Application Focus | Emergency lighting, fire alarm systems | Building wiring, fire zone segregatio |
Suitable Applications
| Scenario | Fire-Resistant Cable | Fire Rated Cable |
|---|---|---|
| Commercial buildings | Emergency lighting, fire alarms | Main power supply lines, fire zone segregation |
| Airports / Railways | Signal systems | Corridors, cable risers |
| Hospitals / Public facilities | Backup power in operating rooms | Fireproof corridors, main floor distribution |
| Industrial / Mining | Emergency power for motors / drives | Main distribution lines |
How to Identify
- Labels & Markings: Check the cable sheath for "Fire-Resistant" or "Fire Rated" markings.
- Certification: Verify SAA or IEC certification for fire rating and power continuity.
- Technical Parameters: Confirm fire-resistant temperature, rated power duration, and flame-retardant class.
- Supplier Consultation: Reputable manufacturers provide datasheets and test reports to confirm specifications.
Fire and Heat-Resistant Cable Standards
Australian and Oceania Standards
Orange Fire-Resistant / Fire Rated cables in Australia, New Zealand, Fiji, Papua New Guinea, Solomon Islands, Vanuatu, Samoa, Tonga, Tuvalu, Kiribati must comply with:
- SAA Certification (Australian standards)
- IEC Standards (International Electrotechnical Commission)
These standards ensure cable safety in emergencies and meet local regulations and market requirements.
Common Cable Types and Specifications
| Cable Type | Fire / Heat Standard | Suitable Scenario | Features |
|---|---|---|---|
| Fire Rated Cable | AS/NZS 5000.1 | Commercial buildings, airports | Flame retardant, high temperature resistance, ensures critical system operation |
| Fire-Resistant Cable | AS/NZS 3008 | Emergency power systems | Maintains power for short duration, ensures safety |
| Elastomer Cable | IEC 60245 | Mining, heavy industry | Flexible, wear-resistant, chemically resistant |
| SWA Cable | AS/NZS 4852 | Underground power, industrial | Steel wire armored, high mechanical strength |
| Medium Voltage Cable | IEC 60502 | Substations, distribution | Medium voltage power supply, reliable |
| Orange Circular Cable | IEC 60332 | Industrial installations | High visibility, optional fire rating |
Practical Applications of Orange Cable
1.Commercial Buildings
- Emergency lighting: Fire-Resistant Cable ensures key lighting remains operational during fire.
- Main power distribution: Fire Rated Cable slows flame spread, protecting structures.
2.Airports and Railways
- Signal systems: Fire-Resistant Cable guarantees power for safety-critical systems.
- Corridor and riser wiring: Fire Rated Cable reduces fire propagation risk.
3.Mining and Heavy Industry
- Motors and drive systems: VSD Cable or Elastomer Cable for mechanical and chemical resistance.
- Underground distribution: SWA Cable for mechanical protection and fire rating.
4.Universities, Hospitals, Public Facilities
- Data and power wiring: TPS Cable or Orange Circular Cable improves identification and maintenance safety.
How to Choose the Right Orange Cable Model
By Application
| Scenario | Recommended Cable | Key Parameters |
|---|---|---|
| High-temperature / fire areas | Fire Rated / Fire-Resistant Cable | Flame rating, fire duration, power continuity |
| Underground installations | SWA Cable / Orange Circular Cable | Waterproof, corrosion resistant, mechanical strength |
| Heavy industry | VSD Cable / Elastomer Cable | Wear and chemical resistance |
| Data / instrumentation wiring | TPS / Instrumentation Cable | Signal integrity, EMI resistance |
By Electrical Parameters
- Conductor size: From 1.5mm² upwards, covering industrial and commercial requirements.
- Voltage rating: Low voltage, medium voltage, motor drive systems.
- Insulation & sheath: PVC, rubber, Low Smoke Zero Halogen (LSZH), ensuring safety and durability.
Customization
Materials, specifications, length, color, performance, marking, and packaging can be customized to meet project-specific needs.
Advantages of Dongguan Greater Wire & Cable Co., Ltd.
1.Comprehensive Product Range
- Orange Circular Cable, TPS Cable, Mining Cables, SDL Cable, Rubber Cable, Building Cable, Earthing Cable, Neutral Screen Cable, Instrumentation Cable, etc.
2.Compliance with International Standards
- SAA certified for Australia, New Zealand, and Oceania markets.
3.Extensive Project Experience
- Long-term cooperation with distributors and contractors, serving commercial buildings, airports, universities, railways, and mining projects.
4.Full Specifications & Fast Delivery
- From 1.5mm² up, supporting large and small batch orders.
5.Professional Technical Support
- Pre-sales and after-sales support ensures smooth project implementation.
6.Custom Colors & Specifications
- Material, specification, length, color, performance, marking, and packaging fully customizable.
Recommendations for Purchasing Orange Cable
- Define project requirements: voltage level, environment, fire protection needs.
- Check standards and certifications: ensure compliance with SAA or IEC.
- Choose a reliable supplier: technical support, sufficient stock, experience.
- Consider custom solutions: select the right model based on site conditions for safety, stability, and long-term performance.
