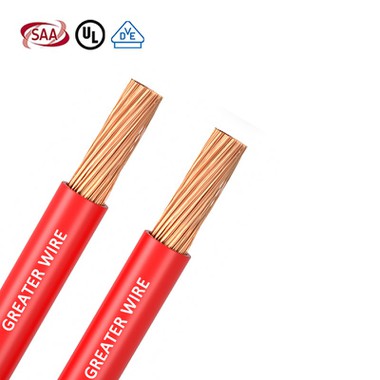

In building electrical systems, conductor sizing is one of the most fundamental yet frequently misunderstood design decisions. The cross-sectional area of a conductor, expressed either as American Wire Gauge (AWG) or square millimeters (mm²), has a direct and decisive impact on the current-carrying capacity, thermal performance, voltage drop, safety, and long-term reliability of a building wire system.
Improper selection of conductor size is a leading cause of overheating, insulation degradation, fire risk, excessive voltage drop, and code non-compliance. Conversely, over-sizing conductors unnecessarily increases material costs and installation difficulty without proportional benefits.
Understanding Conductor Cross-Sectional Area
Definition of Cross-Sectional Area
The conductor cross-sectional area represents the effective metallic area available for current flow. It is typically expressed in:
AWG (American Wire Gauge) – used primarily in North America
mm² (square millimeters) – used in IEC-based regions and internationally
A larger cross-sectional area means lower electrical resistance, allowing more current to flow safely without excessive heat generation.
AWG vs mm²: Conceptual Differences
AWG is a logarithmic scale:
Smaller AWG numbers indicate larger conductors
Larger AWG numbers indicate smaller conductors
In contrast, mm² is a direct linear measurement:
Larger mm² values directly correspond to larger conductors
When selecting building wire, understanding this distinction is critical to avoid sizing errors, especially in cross-border or international projects.
The Relationship Between Conductor Size and Current-Carrying Capacity
Electrical Resistance and Heat Generation
The current-carrying capacity (ampacity) of a building wire is fundamentally limited by heat.
Electrical resistance is inversely proportional to conductor cross-sectional area
As current flows, resistive losses generate heat (I²R losses)
Larger conductors generate less heat for the same current
If heat cannot be dissipated effectively, conductor temperature rises, potentially exceeding insulation limits.
Ampacity as a Thermal Limit
Ampacity is not defined by how much current a conductor can carry momentarily, but by how much it can carry continuously without exceeding the allowable insulation temperature.
Thus, conductor cross-sectional area directly affects:
Maximum continuous current
Allowable short-term overload
Thermal aging of insulation
Ampacity Ratings in Building Wire Standards
Role of Electrical Codes
Ampacity values for building wire are established by electrical codes and standards, such as:
NEC (North America)
IEC 60364 (international)
National adaptations (BS, DIN, JIS, etc.)
These standards account for:
Conductor material (copper or aluminum)
Insulation type and temperature rating
Installation conditions
Insulation Temperature Classes
Common building wire insulation ratings include:
60°C
75°C
90°C
For the same conductor size:
Higher temperature-rated insulation allows higher ampacity
The conductor size itself does not change, but allowable current does
This highlights that conductor area and insulation type must be considered together when selecting building wire.
Conductor Material and Its Influence
Copper vs Aluminum
Copper has lower resistivity than aluminum. For the same cross-sectional area:
Copper carries more current
Aluminum requires a larger cross-section to achieve equivalent ampacity
Therefore, when using aluminum building wire, upsizing is mandatory to maintain safety and compliance.
Mechanical and Termination Considerations
Larger conductor sizes also influence:
Bending radius
Termination compatibility
Lug and connector sizing
These practical factors must be considered alongside ampacity when choosing building wire specifications.
Voltage Drop and Conductor Cross-Sectional Area
Why Voltage Drop Matters
Even if a building wire meets ampacity requirements, insufficient conductor size can cause excessive voltage drop, leading to:
Reduced equipment efficiency
Motor overheating
Control system malfunction
Relationship Between Area and Voltage Drop
Voltage drop is inversely proportional to conductor cross-sectional area:
Larger conductors → lower voltage drop
Smaller conductors → higher voltage drop
Many standards recommend limiting voltage drop to:
3% for branch circuits
5% for feeders and total system
In long cable runs, conductor size selection is often governed by voltage drop rather than ampacity alone.
Installation Conditions and Derating Factors
Ambient Temperature Effects
Higher ambient temperatures reduce the ability of building wire to dissipate heat, requiring:
Ampacity derating
Larger conductor cross-sectional area
Ignoring temperature derating is a common cause of overheating failures.
Grouping and Bundling of Conductors
When multiple building wires are installed together:
Heat accumulates
Individual conductor ampacity must be reduced
To compensate, designers may need to:
Increase conductor size
Reduce circuit loading
Consequences of Undersized Building Wire
Thermal Overstress and Fire Risk
Using a conductor with insufficient cross-sectional area can result in:
Continuous overheating
Insulation degradation
Increased fire risk
These failures often develop gradually and remain hidden until serious damage occurs.
Reduced Service Life
Even without immediate failure, undersized building wire experiences:
Accelerated insulation aging
Reduced dielectric strength
Shortened service life
Consequences of Oversized Building Wire
Cost and Installation Challenges
While electrically safe, oversized building wire can cause:
Higher material costs
Increased labor time
Difficulty in routing and termination
Practical Limitations
Oversizing may exceed:
Conduit fill limits
Terminal and breaker ratings
Equipment design constraints
Correct selection balances safety, performance, and practicality.
How to Select the Correct Conductor Cross-Sectional Area
Step 1: Determine Load Current
Calculate:
Continuous and non-continuous loads
Peak operating current
Apply code-required safety factors.
Step 2: Identify Installation Conditions
Consider:
Ambient temperature
Grouping and routing
Installation environment (dry, damp, wet)
These factors directly affect required conductor size.
Step 3: Select Insulation Type and Temperature Rating
Choose building wire insulation that:
Meets environmental requirements
Provides sufficient thermal margin
Higher temperature-rated insulation may allow smaller conductor sizes within code limits.
Step 4: Verify Voltage Drop Compliance
For long runs or sensitive loads:
Calculate voltage drop
Increase conductor cross-sectional area if necessary
This step is essential for motors, lighting systems, and control circuits.
Step 5: Confirm Compliance with Applicable Standards
Ensure the selected building wire:
Complies with local electrical codes
Uses recognized AWG or mm² sizing
Carries appropriate certifications
Compliance is as critical as technical correctness.
Application Examples
Residential Building Wire
Residential circuits typically prioritize:
Cost efficiency
Standard conductor sizes
Moderate voltage drop limits
Correct sizing ensures safety without unnecessary overspecification.
Commercial and Industrial Building Wire
These applications often require:
Larger conductor cross-sectional areas
Stricter voltage drop control
Higher reliability margins
Conductor size selection is more conservative due to higher loads and duty cycles.
Lifecycle and Economic Considerations
Proper conductor sizing in building wire systems:
Reduces maintenance costs
Improves energy efficiency
Extends service life
Small increases in conductor size can deliver significant long-term benefits.
Common Selection Mistakes to Avoid
Selecting by ampacity only, ignoring voltage drop
Ignoring derating factors
Confusing AWG and mm² equivalence
Failing to consider future load expansion
Avoiding these errors significantly improves system reliability.
Conductor Size Is a Core Safety Parameter
The conductor cross-sectional area of a building wire directly determines its current-carrying capacity, thermal behavior, voltage performance, and compliance status. It is not a simple numerical choice, but a comprehensive engineering decision that must consider:
Electrical load characteristics
Installation and environmental conditions
Insulation temperature rating
Voltage drop requirements
Applicable electrical codes
Correct selection of building wire conductor size ensures electrical safety, system efficiency, regulatory compliance, and long-term reliability. In contrast, incorrect sizing-whether undersized or oversized-introduces avoidable risks and costs.
In professional electrical design and construction, choosing the correct building wire cross-sectional area is one of the most critical decisions influencing the success and safety of the entire electrical system.
