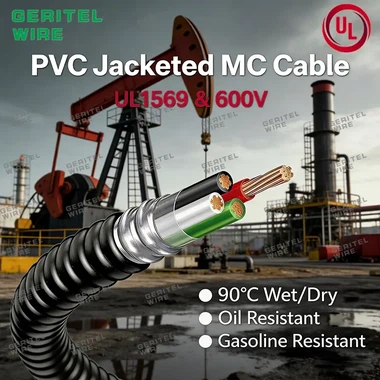

For commercial electrical contractors, few things derail a project faster than a failed electrical inspection. The two most common culprits? Inadequate fire protection for wiring in high-occupancy areas and improper grounding systems. This is exactly why 12/2 THHN/THWN-2 PVC jacketed MC cable has become the workhorse of general commercial wiring: it is engineered to solve both of these critical issues in a single, easy-to-install package.
Unlike standard unjacketed MC cable, which only provides basic mechanical protection, this specialized design adds three layers of safety and reliability that make it indispensable for institutional buildings, office complexes, and retail spaces. For contractors, this means fewer inspection failures, less rework, and faster project completion times.
1. Why 12/2 THHN/THWN-2 PVC Jacketed MC Cable Solves Commercial Wiring's Biggest Risks
· FT4 Fire Rating: Non-Negotiable for High-Occupancy Spaces
The biggest pain point we hear from contractors working on institutional projects is meeting strict fire safety codes. In buildings with 50 or more occupants, even a small electrical fire can have catastrophic consequences, and code officials are increasingly stringent about wiring fire performance.
12/2 PVC jacketed MC cable with FT4 IEEE 1202 rating is designed specifically for these environments. Unlike standard MC cable, which may only meet basic flame resistance requirements, FT4-rated cable limits flame spread and smoke generation during a fire, giving occupants more time to evacuate. This is not just a nice-to-have feature-it is a mandatory requirement for most schools, hospitals, and public assembly buildings across North America.
· Enhanced Moisture Protection for Complex Building Environments
Commercial buildings present a far wider range of environmental conditions than residential homes. From damp mechanical rooms and kitchen areas to unconditioned storage spaces, wiring is constantly exposed to humidity and occasional moisture.

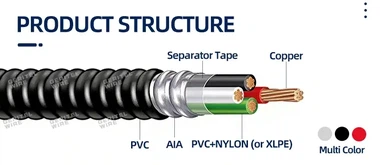

Standard unjacketed MC cable relies solely on its aluminum interlocked armor for protection, which can corrode over time when exposed to consistent moisture. The thick PVC outer jacket on 12/2 MC cable with PVC jacket and ground provides an additional barrier against humidity and spills, significantly extending the cable's service life in these challenging environments.
· Integral Ground: Faster Installation + Guaranteed Continuity
Grounding is the foundation of electrical safety, and improper grounding is the leading cause of electrical shock hazards in commercial buildings. This cable comes with a dedicated integral ground conductor, eliminating the need to pull separate ground wires through conduit.
This not only cuts installation time by up to 30% but also ensures consistent grounding continuity throughout the circuit. For contractors, this means fewer grounding-related inspection failures and greater confidence in the safety of your installations.
2. Three Exact Scenarios Where This Cable Is Non-Negotiable
· 20A general purpose circuits in office buildings: This is the most common application, powering lighting, wall outlets, and small office equipment across entire floors.
· Public areas in institutional buildings: Hallways, classrooms, waiting rooms, and cafeterias in schools and hospitals require FT4 fire-rated wiring for occupant safety.
· Back-of-house areas in retail and restaurants: Kitchens, storage rooms, and mechanical spaces benefit from the PVC jacket's enhanced moisture resistance.
3. The 2 Non-Negotiable Checks Before You Place Your Order
· Verify FT4 IEEE 1202 Compliance on the Specification Sheet
Never take a supplier's word for it that a cable is FT4-rated. Always request a copy of the product specification sheet and confirm that it explicitly lists "FT4 IEEE 1202" as a tested rating. Some suppliers may claim "fire-resistant" without meeting the specific FT4 standard, which will result in a failed inspection.
· Confirm Ground Configuration Matches Project Requirements
12/2 MC cable is available with either a bare ground conductor or an insulated green ground conductor. While both meet basic code requirements, most institutional projects now specify insulated green ground. It provides an extra layer of protection against accidental contact and makes it much easier for electricians to identify and test ground conductors during installation and maintenance.
4. 3 Costly Mistakes Contractors Make When Specifying This Cable
· Using unjacketed MC cable to save money: The small upfront cost difference will be completely erased by the cost of replacing corroded wiring or fixing a failed fire inspection.
· Ignoring ground configuration requirements: Ordering bare ground cable when the project requires insulated green ground will force you to rewire entire circuits, delaying your project by days.
· Overlooking FT4 requirements for public areas: Even if the rest of the building uses standard cable, all public assembly areas require FT4-rated wiring.
5. FAQ
· What is the maximum ampacity of 12/2 THHN/THWN-2 PVC jacketed MC cable?
12/2 THHN/THWN-2 MC cable is rated for 20 amps at 600 volts, making it ideal for the majority of general purpose circuits in commercial buildings.
· Can this cable be used in damp locations?
Yes, the THHN/THWN-2 conductors are rated for damp locations, and the PVC outer jacket provides additional moisture protection. It is not suitable for direct burial unless specifically rated for that application.
· What is the difference between 12/2 and 14/2 MC cable?
12/2 MC cable is rated for 20 amps, while 14/2 is rated for 15 amps. 12/2 is used for higher-load circuits such as kitchen outlets and small appliances, while 14/2 is used for basic lighting and low-power outlets.
· Do I need conduit for 12/2 PVC jacketed MC cable?
No, the aluminum interlocked armor provides the necessary mechanical protection, so conduit is not required for most indoor installations. This is one of the biggest advantages of MC cable over traditional THHN wire in conduit.
6. Get a Project-Specific Quote
As a leading PVC jacketed MC cable supplier, we specialize in providing high-quality FT4-rated 12/2 MC cable for commercial and institutional electrical projects. All our cables are manufactured to strict industry standards, and we offer fast delivery to meet your project deadlines.
If you need help specifying the right cable for your upcoming project or would like to request a competitive quote, contact our team today. We will review your project requirements and provide a customized solution that meets your compliance needs and budget.
