For electrical contractors and institutional project buyers, specifying the right cable for high-occupancy spaces is more than just a compliance check-it's a decision that directly impacts long-term safety, maintenance costs, and project timelines. One of the most common pain points we hear from clients is the premature failure of branch circuit cables in busy institutional buildings, where constant foot traffic, equipment movement, and construction activity lead to unexpected abrasion and mechanical damage.

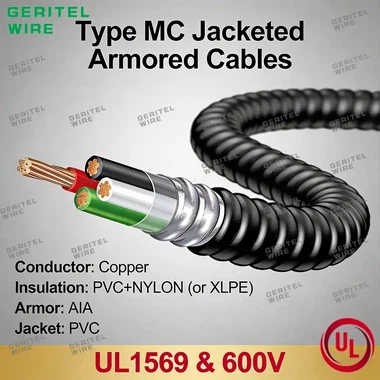

This is exactly why 14/2 THHN/THWN-2 PVC jacketed MC cable has become the industry standard for branch circuit wiring in schools, hospitals, office buildings, and places of assembly. Unlike standard MC cables that rely solely on metal armor for protection, this specialized design adds a durable PVC outer jacket that provides an extra layer of defense against the unique challenges of institutional environments.
1. Why 14/2 THHN/THWN-2 PVC Jacketed MC Cable Is the Go-To for Institutional Branch Circuits?
· Solving the #1 Pain Point in High-Occupancy Spaces: Mechanical Protection
The biggest risk to branch circuit cables in institutional buildings is not electrical failure-it's physical damage. In hallways, classrooms, and back-of-house areas, cables are constantly exposed to bumps from carts, scrapes from furniture, and accidental impacts during renovations. Standard aluminum interlocked armor provides basic protection, but over time, repeated abrasion can wear through the armor, exposing conductors and creating safety hazards.

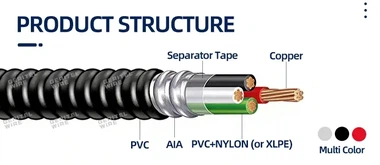

14/2 aluminum armor MC cable PVC jacket solves this problem by adding a thick, impact-resistant PVC outer sheath that acts as a first line of defense. This extra layer absorbs shocks and prevents abrasion from reaching the metal armor, significantly extending the cable's service life in high-traffic areas. For project managers, this means fewer emergency repairs, less downtime, and lower long-term maintenance costs.
· Built for the Demands of Institutional Wiring: Heat and Moisture Resistance
Institutional buildings present a wide range of environmental conditions, from dry office spaces to humid mechanical rooms and kitchen areas. THHN/THWN-2 conductors are rated for 90°C in both dry and wet locations, making them versatile enough to handle nearly any indoor environment you'll encounter in a typical institutional project.
The PVC outer jacket further enhances this moisture resistance, providing an additional barrier against humidity and occasional spills. This combination makes 14/2 PVC jacketed MC cable suitable for use in areas where standard non-metallic (NM) cable would be inappropriate, while still offering the installation convenience that makes MC cable so popular with contractors.
2. Exact Applications Where 14/2 MC Cable Shines
· Branch Circuit Wiring in Schools, Hospitals, and Office Buildings
The 14/2 gauge is specifically designed for 15-amp circuits, which account for approximately 70% of all branch circuit wiring in institutional buildings. This includes:
General lighting circuits in classrooms, offices, and hallways
Standard wall outlets for computers, printers, and small office equipment
Low-power HVAC controls and security systems
For these applications, 14/2 MC cable with PVC jacket and ground is the ideal choice. It includes a dedicated bare or insulated green ground conductor, ensuring compliance with modern electrical safety codes, and the aluminum interlocked armor provides excellent electromagnetic shielding for sensitive electronic equipment.
· Places of Assembly: Theaters, Auditoriums, and Conference Centers
Places of assembly have particularly strict electrical requirements due to the high concentration of people and the need for reliable emergency systems. In these environments, cable durability is non-negotiable-even a minor cable failure can lead to dangerous situations during events.
The enhanced mechanical protection of PVC jacketed MC cable makes it perfect for use in theaters, auditoriums, and conference centers, where cables are often run in exposed locations or areas with frequent equipment setup and teardown. Its resistance to heat and moisture also makes it suitable for use in backstage areas, projection rooms, and catering facilities.
3. Critical Selection Checklist for 14/2 PVC Jacketed MC Cable
· Confirm Conductor Specification: THHN/THWN-2 vs. XHHW-2
When specifying 14/2 MC cable, it's essential to choose the right conductor insulation for your application:
THHN/THWN-2: The standard choice for most institutional branch circuits. It offers excellent heat and moisture resistance, is more flexible than XHHW-2, and is generally more cost-effective.
XHHW-2: Better suited for extremely wet or corrosive environments, such as outdoor locations or industrial facilities. For typical indoor institutional use, THHN/THWN-2 provides more than enough performance at a lower price point.
· Verify Ground Configuration: Bare Ground vs. Insulated Green Ground
14/2 MC cable is available with either a bare copper ground conductor or an insulated green ground conductor. While both meet code requirements, insulated green ground is often preferred in institutional projects because it provides an extra layer of protection against accidental contact and makes it easier to identify ground conductors during installation and maintenance.
· Choose the Right Armor: Aluminum Interlocked vs. Galvanized Steel
Most 14/2 MC cable uses aluminum interlocked armor, which is lightweight, flexible, and easy to install. Galvanized steel armor is available for applications that require extreme mechanical protection, but it is significantly heavier and more difficult to work with. For 99% of institutional branch circuit applications, aluminum interlocked armor is the best choice.
4. Common Mistakes to Avoid When Specifying 14/2 MC Cable
· Skipping the PVC jacket: Don't be tempted to save money by using standard MC cable without a PVC outer jacket in high-occupancy areas. The small upfront cost difference will be dwarfed by the cost of premature cable replacement.
· Overloading the circuit: 14/2 cable is rated for 15 amps maximum. Never use it for circuits that require 20 amps or more-this is a serious safety hazard that can lead to overheating and fires.
· Ignoring ground requirements: Always ensure that the cable you specify includes a dedicated ground conductor. Never rely on the metal armor alone for grounding.
5. FAQ
· What is the maximum ampacity of 14/2 THHN/THWN-2 PVC jacketed MC cable?
14/2 THHN/THWN-2 MC cable is rated for 15 amps at 600 volts, which is suitable for most general lighting and small appliance circuits in institutional buildings.
· Can 14/2 MC cable be used in wet locations?
Yes, THHN/THWN-2 conductors are rated for 90°C in wet locations, and the PVC outer jacket provides additional moisture protection. However, it is not suitable for direct burial unless specifically rated for that application.
· What is the difference between 14/2 and 14/3 MC cable?
14/2 MC cable contains two current-carrying conductors plus a ground conductor, while 14/3 MC cable contains three current-carrying conductors plus a ground conductor. 14/3 is used for applications that require a neutral and a switched hot, such as three-way switches or split receptacles.
· Do I need conduit for 14/2 PVC jacketed MC cable?
No, one of the main advantages of MC cable is that it does not require conduit for most indoor installations. The metal armor provides the necessary mechanical protection, which significantly reduces installation time and labor costs.
6. Get a Custom Quote for Your Institutional Project
At Greater Wire, we specialize in supplying high-quality 14/2 THHN/THWN-2 PVC jacketed MC cable for institutional and commercial electrical projects. Our cables are manufactured to the highest industry standards, and we offer competitive pricing and fast delivery to meet your project deadlines.
If you're working on an institutional building project and need help specifying the right cable, or if you'd like to request a custom quote, please contact our team today. We'll work with you to understand your specific requirements and provide a solution that meets your needs and budget.
