TC-ER Vs MC Cable: Which One To Choose For Your Project?

Every electrical contractor and project designer faces a recurring decision when planning indoor wiring: pick flexible TC-ER cable or robust armored MC Cable. Most buyers only know both meet UL & NEC 600V rating but struggle to confirm which matches their site condition. Choosing improperly leads to extra construction cost, failed code inspection or premature cable damage.

After years supplying North American construction market with THHN/THWN-2 & XHHW-2 core cables, we break down real-world differences to simplify your selection.

1. Two Core Cable Builds & Certification Standards

Let's start with internal construction, the root of all application differences.

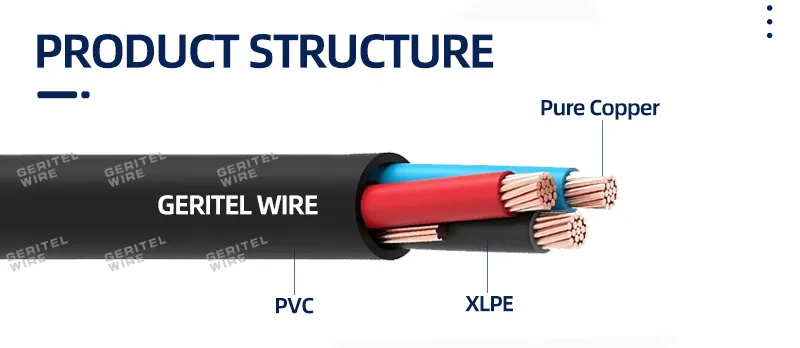

PVC Jacketed TC-ER Cable

TC-ER is multi-conductor tray cable with ER (Exposed Run) certification under UL1277  testing. Internal cores adopt THHN/THWN-2 or XHHW-2 insulation with insulated green ground wire bundled together, wrapped with separator tape and finished with single-layer non-metallic PVC or CPE outer jacket. Its ER rating from NEC Article336 allows limited exposed installation without extra conduit. No metal armor inside the whole cable structure.

PVC Coated MC Cable

MC Cable features layered aluminum interlocked armor as primary mechanical shielding, available with optional outer black PVC jacket. Inner conductors also use mainstream THHN/THWN-2 or XHHW-2 insulation paired with bare or insulated green ground. Certified under UL1569 standard for metal-clad construction, its metal armor is the core protection against physical crush and abrasion.

2. Old Routine: Traditional MC Cable Wiring Workflow vs TC-ER Installation

MC Cable On-site Installation Steps

• For a standard 50ft feeder run from distribution panel to industrial equipment:
• Measure wiring route and fix bracket supports per NEC spacing rules
• Unroll armored MC cable and cut via dedicated cable cutter
• Peel PVC outer jacket and aluminum interlocked armor carefully at both ends
• Install specialized MC cable fittings onto junction boxes
• Terminate inner XHHW-2 or THHN conductors with ground wire secured properly

The rigid interlocked armor limits bending flexibility; complex corner layout will extend installation to 2~3 working hours for short-distance runs.

TC-ER Cable On-site Installation Steps

For identical 50ft equipment feeder layout:

• Uncoil flexible TC-ER and lay along pre-planned path with standard supports
• Trim PVC outer sheath and strip core insulation at terminals
• Directly connect THHN/XHHW-2 conductors plus green ground to equipment terminals

Thanks to non-armored flexible structure, same project usually finishes within 40~60 minutes. The biggest highlight: up to 6ft (1.83m) exposed run from cable tray to equipment is NEC-approved with zero conduit needed, cutting pipe material cost entirely.

3. Ideal Application Scenarios for TC-ER & MC Cable (And When To Avoid Each Option)

Best to Choose TC-ER Cable Instead of MC Cable

• Automated factory equipment & HVAC control wiring: Most production line control circuits run inside cable tray with short terminal exposed connection; 3/C & 4/C XHHW-2 PVC jacket TC-ER perfectly cuts labor cost.
• Basement & damp commercial retrofit projects: Hard to route rigid armored MC around irregular old building structures; moisture-resistant PVC/CPE outer jacket TC-ER fits tight space renovation, common pick for lighting upgrade with THHN/THWN-2 cores.
• Cable tray outgoing short feeders: Wiring leaving tray to nearby devices uses TC-ER's ER allowance to skip conduit, no need for expensive armored MC for small-load short runs.

Stick With MC Cable Instead of TC-ER Cable

• Heavy-duty machinery workshops with falling scrap & forklift impact: Aluminum interlocked armor provides outstanding anti-crush protection that non-metallic TC-ER cannot match; PVC-coated MC prevents armor rust in dusty production environment.
• Long full-exposed wall wiring without cable tray support: MC has unlimited exposed installation permission under NEC while TC-ER's bare exposed section caps at 6ft.
• Warehouse high-traffic public corridor wiring where sharp scratch damage is inevitable.

Scenarios Neither Option Works

Direct underground burial without special waterproof customized sheath (standard PVC TC-ER & regular MC are not burial-rated)

Class I/II hazardous location installation requiring explosion-proof rated wiring.

4. Side-by-Side Comparison Table: Installation, Cost & Practical Performance

Core takeaway: MC saves conduit expense for fully open exposed layout but costs more on material and installation labor; TC-ER cuts total project cost for tray-heavy indoor commercial & regular industrial projects.

5. Real Project Case Study: Two Cable Options On One Factory Renovation Project

A medium-sized food processing plant needed 22 separate equipment feeders from main power panel to production machines. Initial design preferred full PVC coated MC cable for all circuits.

Our technical team split the plan:

• Short tray-terminal runs under 6ft: replace MC with XHHW-2 3/C TC-ER cable, eliminate all auxiliary conduit cost.
• Long open-wall exposed feeders near heavy conveyor: keep original aluminum armor PVC MC for anti-collision protection.

Final result: The whole wiring project saved roughly 23% total installed cost and passed local electrical inspection smoothly, finished one working day ahead of schedule.

6. UL1277 Standard Quick Check Before Final Cable Selection

Confirm regional installation requirements paired with UL1277 certification specs: Several local project specs restrict TC-ER exposed usage in public parking garages, requiring MC cable instead even when TC-ER holds valid UL1277 approval. Site damage risk evaluation: Locations with heavy mechanical impact require armored MC per project specification; areas with only moderate foot-traffic hazards can freely select PVC-jacketed TC-ER that has completed full UL1277 tray cable compliance testing. Wet/damp environment rule: XHHW-2 (XLPE insulated core) + PVC outer jacket TC-ER is fully listed under UL1277 for damp basements and warehouse applications, matching the wet-environment approval of PVC-coated MC cable.

FAQ

Q1: Can TC-ER fully replace MC Cable for all industrial construction?

A: No. TC-ER lacks robust metal armor against heavy mechanical crush. MC remains mandatory for high-impact heavy industry workshops.

Q2: Are THHN/THWN-2 and XHHW-2 both available for custom TC-ER and MC orders?

A: Yes, we produce both cable types with two mainstream insulation options, paired with bare or insulated green ground per customer project specs.

Q3: Does PVC outer jacket replace grounding requirement for MC & TC-ER?

A: Absolutely not. Both cables are equipped with dedicated ground conductor (bare/insulated green ground) following NEC standards; PVC jacket only delivers moisture and chemical protection without grounding function.

Q4: Can TC-ER run outdoors exposed under sunlight?

A: Only CPE sunlight-resistant jacket TC-ER is permitted for outdoor exposed installation; regular PVC TC-ER cannot withstand long-term UV exposure.

Closing

No universal superior product between TC-ER cable and MC Cable. Optimize your purchase: select cost-saving flexible TC-ER for tray-based indoor commercial & light industrial wiring; pick impact-proof PVC coated MC Cable for heavy-load open-exposed high-abrasion projects.
