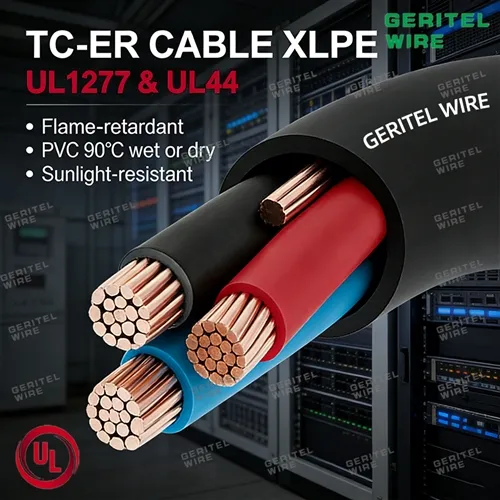

Selecting the correct TC-ER cable is critical for reliable, code-compliant industrial wiring. Unlike general tray cables, TC-ER cables feature exposed-run capability, stable XLPE insulation, and strict UL certifications, making them the top choice for factory automation, control panels, and motor connection projects. Many contractors and buyers face confusion with voltage ratings, insulation types, environmental grades and core configurations. This professional industrial buying guide helps you select the perfect TC-ER cable for your project.
1. Choose the Correct Voltage Rating: 600V vs 1000V TC-ER Cable
600V TC-ER cable is the standard and most widely used specification for general industrial power and control circuits. It covers most applications including automation equipment, HVAC systems, panel feeders and motor control wiring. Fully certified to UL1277, it delivers stable electrical performance for daily industrial operation.
1000V TC-ER cable is designed for heavy-duty industrial environments with higher power demands, such as large-scale mechanical equipment and high-frequency VFD systems. It is only selected when project specifications require elevated voltage tolerance.
2. Insulation Selection: XHHW-2 TC-ER Cable (XLPE Core) Is the Best Industrial Option
Insulation material determines the cable's temperature resistance, moisture resistance and service life. All premium industrial TC-ER cables adopt XHHW-2 TC-ER cable with XLPE insulation, which complies with UL44 insulation standards.
XHHW-2 XLPE insulation features high temperature resistance, anti-aging performance and excellent moisture tolerance. It supports both dry and wet working conditions, perfectly qualifying as wet location TC-ER cable for basements, warehouses, wastewater workshops and humid industrial sites.
In comparison, traditional THHN/THWN insulated TC-ER is only suitable for dry indoor environments and cannot withstand long-term damp or corrosive industrial conditions.
3. Core Count & AWG Size Matching for Industrial Loads
TC-ER cables are available in multiple core counts and AWG sizes to match different industrial equipment loads:
- 3/C & 4/C TC-ER cable: The mainstream specification for three-phase motors, automation equipment and control panel outgoing circuits, widely used in TC-ER cable for industrial automation projects.
- 12AWG / 10AWG: Ideal for low-current signal control and auxiliary equipment wiring.
- 8AWG / 6AWG: Suitable for medium-current machine power feeders.
Selecting the right core count and wire gauge avoids overload risks and ensures long-term stable equipment operation.
4. Shielded vs Unshielded TC-ER Cable
Industrial field electromagnetic interference varies greatly, requiring different shielding designs:
- Unshielded TC-ER: Cost-effective for ordinary production workshops and common power control circuits with low interference.
- Overall shielded TC-ER: Recommended for VFD equipment, precision sensors and automated production lines to block EMI interference and ensure signal stability.
5. Outer Jacket & Environmental Adaptability

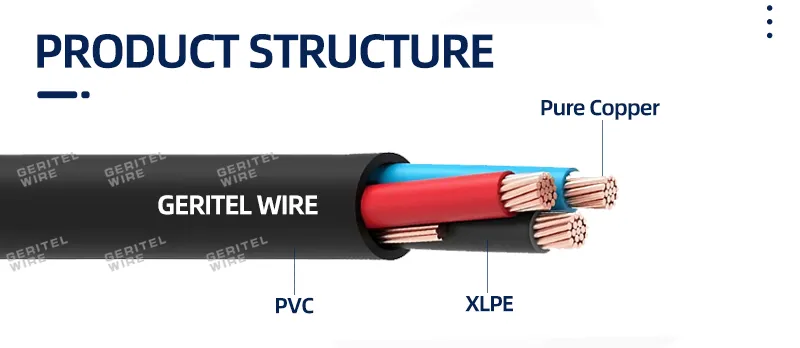

Our TC-ER cables adopt durable PVC outer jackets matched with XLPE inner insulation. With strict UL1277 testing, they adapt to multiple complex industrial scenarios:
- Wet location performance: XHHW-2 XLPE core enables stable operation in long-term humid environments.
- UV & sunlight resistance: Custom anti-UV jacket options support semi-outdoor tray laying.
- Oil and corrosion resistance: Suitable for mechanical workshops with minor oil splashing and industrial corrosive gas environments.
6. Professional UL Certification Check (UL1277 + UL44)
Formal certification is the core guarantee for industrial project acceptance:
- UL1277: Full certification for TC-ER tray cable, verifying exposed-run mechanical resistance, flame retardancy and overall safety performance.
- UL44: Standard certification for XHHW-2 XLPE insulation, ensuring temperature resistance and wet-location qualification.
Only fully certified TC-ER cables can pass North American industrial project inspection and avoid onsite rejection risks.

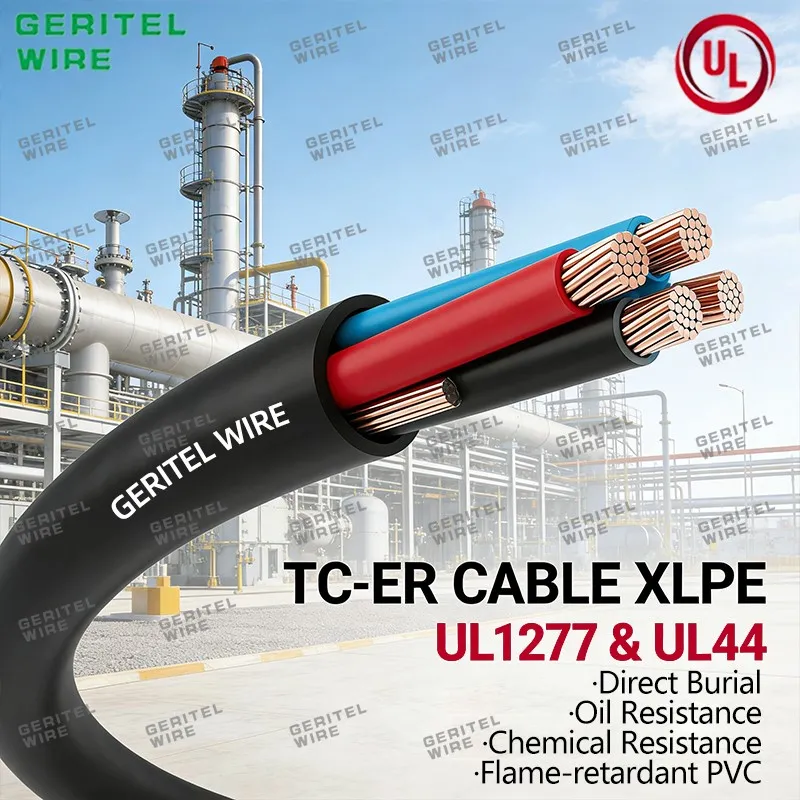

7. Main Industrial Application Scenarios
TC-ER cable is highly targeted for industrial wiring scenarios, especially ideal for:
- Industrial automation production line control wiring
- Control panel internal and outgoing feeder connections
- Motor and HVAC equipment power connection
- Wastewater treatment plants and damp industrial workshops
- Indoor and semi-outdoor cable tray laying projects
Quick TC-ER Selection Checklist
|
Project Condition |
Recommended TC-ER Solution |
|---|---|
|
Ordinary dry factory automation |
600V Unshielded XHHW-2 TC-ER |
|
Damp basement & wastewater plant |
|
|
VFD & precision automation |
Shielded XHHW-2 TC-ER |
|
Semi-outdoor tray installation |
UV-resistant PVC jacket TC-ER |
FAQ
Q1: What is the most commonly used TC-ER cable for industrial projects?
A: 600V 3/C or 4/C XHHW-2 unshielded TC-ER cable is the most popular option for industrial automation and control wiring, fully UL1277 & UL44 certified.
Q2: Is XHHW-2 TC-ER suitable for wet locations?
A: Yes. XHHW-2 XLPE insulation meets UL44 wet-location standards, making it reliable for long-term damp industrial environments.
Q3: What is the difference between THHN and XHHW-2 TC-ER?
A: XHHW-2 (XLPE insulation) supports both dry and wet locations with better anti-aging and anti-corrosion performance, while THHN is only suitable for dry indoor environments.
Final Summary
This industrial TC-ER cable buying guide summarizes core selection standards including 600V/1000V voltage grades, XHHW-2 XLPE insulation, wet location performance, core count, AWG specifications and shielding types. With reliable UL1277 and UL44 certification, qualified TC-ER cables provide safe, flexible and cost-effective wiring solutions for industrial automation, motor connection and control panel projects. Matching cable parameters to actual site conditions ensures stable system operation and smooth project acceptance.
We supply full-series UL1277 & UL44 certified TC-ER cables with XHHW-2 XLPE insulation, various core counts and AWG sizes. Custom logo printing and tailored specifications are available for industrial project orders.
Feel free to contact us for professional technical support and competitive factory quotation!
