1. UL 1277 TC-ER Cable: Standards, Certification, and Benefits
A failed compliance inspection can derail a $1M industrial project in a single day. For electrical engineers, project specifiers and compliance officers, verifying that every component meets exact standards is not just a best practice-it's a business imperative. When it comes to industrial wiring, UL 1277 TC-ER cable is one of the most commonly specified but frequently misunderstood products on the market. Many suppliers claim compliance, but few can provide full documentation of passing the rigorous UL 1277 testing requirements. In this guide, we'll cut through the confusion, explain exactly what UL 1277 requires, how to verify authentic certification, and why choosing properly listed TC-ER cable protects your projects and your reputation.
2. UL 1277 Standard Demystified: What It Actually Requires
UL 1277 is not a generic "quality mark"- it's a comprehensive safety standard that governs the construction, performance and testing of tray cable for exposed runs in industrial environments. Unlike basic TC cable standards, UL 1277 sets strict requirements for mechanical durability that allow TC-ER cable to be installed without conduit between cable trays and equipment.
At its core, UL 1277 requires:
· Mandatory mechanical testing: All UL 1277 TC-ER cable must pass the same UL 1569 crush and impact tests as metal-clad (MC) cable, ensuring it can withstand the physical stresses of industrial environments
· Approved conductor insulation: Conductors must be insulated with THHN/THWN-2 or XHHW-2 materials, rated for 600V operation
· Dedicated grounding conductor: Every cable must include a full-size equipment grounding conductor, available in both bare ground and insulated green ground configurations
· Flexible construction options: Cables may be unarmored with a heavy-duty PVC jacket, or armored with aluminum interlocked armor or galvanized steel armor for enhanced protection in harsh conditions

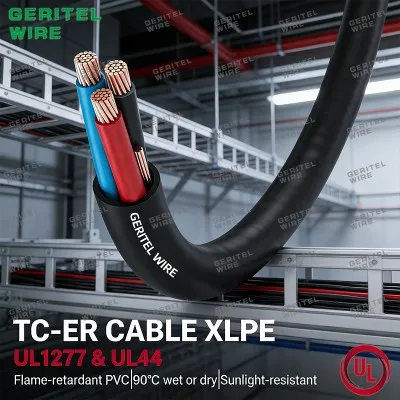

UL 1277 listed TC-ER cable is available in a wide range of core configurations to suit different applications: 3/C TC-ER cable for standard three-phase motor connections, 4/C TC-ER cable for circuits requiring a neutral conductor, and 5/C TC-ER cable and 7/C TC-ER cable for multi-circuit control and signal applications in industrial automation systems.
3. The Hidden Risks of Non-UL 1277 Compliant TC-ER Cable
The biggest pain point facing specifiers today is the proliferation of "TC-ER labeled" cables that have not actually passed full UL 1277 testing. These products may look identical to compliant cable on the surface, but they fail critical mechanical tests and will not pass inspection.
The consequences of using non-compliant cable are severe:
· Project delays and rework costs: A failed inspection can set your project back weeks or months, requiring complete removal and replacement of all wiring
· Insurance and liability issues: If an electrical fire or accident occurs involving non-certified cable, your insurance coverage may be voided, leaving your company liable for damages
· Regulatory fines: Many jurisdictions impose significant fines for using electrical products that do not meet required safety standards
· Long-term reliability problems: Non-compliant cable is more likely to fail prematurely due to vibration, impact or environmental exposure, leading to unplanned downtime
4. How to Verify Authentic UL 1277 Certification
Don't take a supplier's word for it-always verify UL 1277 certification yourself using these three simple steps:
· Check the cable marking: Authentic UL 1277 TC-ER cable will have the "UL 1277" mark permanently printed on the jacket at regular intervals, along with the voltage rating and conductor type. If it only says "TC-ER" without the UL 1277 designation, it is not compliant.
· Request the UL certification file: Reputable manufacturers will provide you with a copy of their UL certification file, which details exactly which cable configurations are listed.
· Verify on the UL database: You can cross-check any manufacturer's certification directly on the UL Online Certifications Directory to ensure it is valid and up-to-date.
5. Beyond Compliance: Key Benefits of UL 1277 Listed TC-ER Cable
While compliance is the primary reason to specify UL 1277 TC-ER cable, properly listed products offer additional benefits that add significant value to your projects:
· NEC compliant exposed runs: UL 1277 listing meets NEC requirements for exposed runs, eliminating the need for conduit stub-ups and reducing installation costs
· EMI protection options: Overall shielded TC-ER cable is available for applications sensitive to electromagnetic interference, such as industrial automation systems and renewable energy control circuits

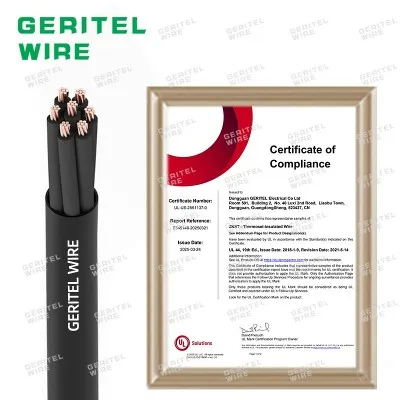

· Environmental compliance: All our UL 1277 TC-ER cable is RoHS compliant, making it suitable for projects with strict environmental requirements, including wastewater treatment plants and solar energy facilities
· Customization capabilities: As a custom TC-ER cable manufacturer, we can provide custom lengths, core configurations and jacket materials to meet the unique needs of your project
6. Critical Selection Tips for Your Project
When specifying UL 1277 TC-ER cable for your next project, keep these essential tips in mind:
· Always verify the cable has a valid UL 1277 listing mark before approving any purchase
· Check if your project requires overall shielding, especially for industrial automation systems with sensitive control electronics
· Confirm whether the project specification requires LSZH (Low Smoke Zero Halogen) jacket material for public areas or enclosed spaces
· Select the appropriate core configuration: 3/C for motors, 4/C for distribution, and 5/C or 7/C for multi-circuit control applications
7. Frequently Asked Questions
Q1: What is the difference between UL 44 and UL 1277 for TC-ER cable?
A1: UL 44 covers the safety requirements for individual thermoset-insulated conductors, while UL 1277 covers the entire cable assembly and its suitability for exposed run installations. All our TC-ER cable meets both UL 44 and UL 1277 standards.
Q2: Do all TC-ER cables meet UL 1277 standards?
A2: No. Many cables are labeled "TC-ER" but have not passed the full UL 1277 mechanical testing requirements. Always verify the UL 1277 listing mark and certification documentation.
Q3: When do I need overall shielded TC-ER cable?
A3: You should specify shielded cable for any application where electromagnetic interference could disrupt sensitive equipment, such as PLC systems in industrial automation or inverter controls in renewable energy facilities.
Q4: Can I get custom TC-ER cable configurations?
A4: Yes. As an experienced custom TC-ER cable manufacturer, we can produce cables with custom core counts, insulation types, jacket materials and armor options to meet your exact project specifications.
8. Get Compliant UL 1277 TC-ER Cable for Your Next Project
With more than 20 years of production experience, Dongguan GERITEL Electrical Co., Ltd. is a trusted manufacturer of high-quality UL 44 and UL 1277 certified TC-ER cable. We offer a full range of configurations including 3/C, 4/C, 5/C and 7/C TC-ER cable, with options for overall shielding and RoHS compliance. Contact us today for a free quote and let our compliance experts help you select the right cable for your industrial automation, wastewater treatment or renewable energy project.
