When sourcing tray wiring for exposed industrial and commercial installations, TC-ER cable ranks among the most popular wiring options on the North American electrical market. Many designers and installers frequently ask: what is TC-ER cable and what certification qualifies a product as genuine UL 1277 TC-ER cable? Besides basic definition and standard specs, a critical selection decision remains: pick shielded or unshielded TC-ER variants. This blog breaks down TC-ER basics, UL 1277 requirements, plus performance gaps and applicable projects for two cable constructions.
1. What is TC-ER Cable?

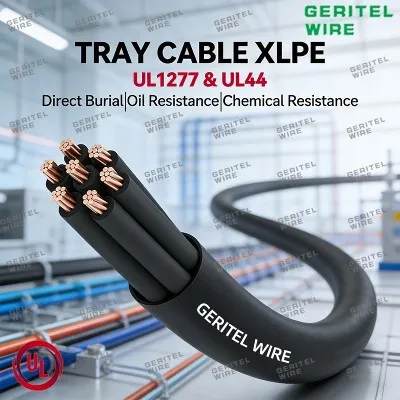

To answer what is TC-ER cable clearly: TC stands for Tray Cable, ER means Exposed Run. TC-ER cable is a type of pre-assembled multi-conductor tray cable specially permitted for open exposed mounting along walls, ceilings, machinery frames and cable trays, without needing to run inside rigid conduit. Unlike ordinary TC tray cable limited only inside cable tray, TC-ER gains extra ER certification to run exposed directly, cutting conduit material and installation labor drastically. It bundles multiple insulated power/control conductors inside a single overall outer jacket, widely used for machine wiring, commercial HVAC, factory power distribution.
2. UL 1277 TC-ER Cable Core Standard Rules
All legitimate UL 1277 TC-ER cable must pass testing per UL 1277 safety specification, the core governing standard for TC/TC-ER tray cables in USA and Canada:
Flame resistance: Pass vertical flame testing to prevent flame spread during short-circuit fire;
Jacket mechanical property: Outer sheath resists abrasion, sunlight aging and minor crushing for exposed open-air service;
Rated temperature & voltage: Standard UL1277 TC-ER products cover common 600V rating, operating temperature ranges from 90℃ up to 105℃ based on insulation compound;
Marking requirement: Certified cable surface must be permanently printed with "TC-ER", "UL 1277", voltage rating for field inspection by electrical inspectors. Products without UL1277 listing cannot be labeled as legal TC-ER and fail code inspection for exposed installation.
3. Performance Comparison: Shielded & Unshielded UL1277 TC-ER Cable
Both follow UL 1277 construction criteria as qualified UL 1277 TC-ER cable, differing only in extra shielding layer:
1)Unshielded TC-ER Cable
Structure: Bare multi-conductor + insulation + outer jacket, no foil/copper braid shield;
Pros: Lighter, flexible, cheaper raw cost, easy stripping and field routing;
Cons: Zero EMI shielding, prone to electrical interference near inverters, big motors.
2)Shielded TC-ER Cable
Structure: Based on standard UL1277 TC-ER construction, add aluminum foil or copper braid shielding wrapped around inner conductors;
Pros: Blocks incoming external electromagnetic interference, stops internal circuit noise leaking out; stable power/signal transmission;
Cons: Higher unit price, stiffer cable body, slightly slower field installation.
4. Application Split for Two TC-ER Types
1)Unshielded UL1277 TC-ER Cable
Low-interference conventional environments: retail mall mechanical wiring, regular office equipment power, warehouse general lighting circuits, cost-focused small commercial projects.
2)Shielded UL1277 TC-ER Cable
High EMI industrial sites: steel mill auxiliary equipment, automation production line control wiring, data center auxiliary tray runs, variable frequency drive (VFD) connection, pharmaceutical factory precision instrument wiring.
Conclusion
After clarifying what is TC-ER cable and mandatory specs of UL 1277 TC-ER cable, users can finalize selection easily: save budget with unshielded TC-ER for clean low-noise locations; invest in shielded TC-ER when electromagnetic disturbance is heavy to avoid unstable equipment operation and post-project rework.
