1.What is an RW90 Cable?
The term RW90 refers to a classification of electrical cable widely used in North America, especially Canada. The "R" signifies thermoplastic or thermoset insulation, "W" denotes its suitability for wet locations, and "90" indicates its maximum continuous operating temperature of 90°C. RW90 cable is usually a single-conductor wire with cross-linked polyethylene (XLPE) insulation, offering superior thermal, chemical, and mechanical resistance.
RW90 cables are rated for use in both dry and wet environments, making them highly versatile and reliable for diverse applications. They are typically installed in conduit, ducts, or cable trays and are approved for use in open and closed installations depending on local electrical codes.
2.Key Performance Characteristics of RW90 Wire
RW90 cable is designed with several performance features that make it a preferred choice for electrical contractors and engineers:
2.1 High Temperature Tolerance
RW90 cable can safely operate at 90°C in dry locations and is also rated for wet environments, making it ideal for a wide variety of indoor and outdoor applications. This high heat tolerance significantly reduces the risk of insulation failure in high-temperature settings.
2. 2 Exceptional Electrical Insulation
The XLPE insulation provides excellent electrical insulating properties, which enhances safety by minimizing the chances of leakage current or short circuits.
2.3 Chemical and Moisture Resistance
RW90 wire performs well in corrosive environments thanks to its chemical-resistant insulation. This includes resistance to moisture, solvents, and UV radiation, which is crucial for outdoor or industrial use.
2.4 Mechanical Strength
The robust build of RW90 cable allows it to endure mechanical stress such as pulling, bending, and compression during installation, minimizing the risk of damage and enhancing its long-term performance.
2.5 Flexibility in Application
RW90 cable can be used in a wide variety of settings:
Underground in conduit
Cable trays
Buildings and residential units
Industrial plants
3.Advantages of RW90 Cable
In addition to the key performance attributes, RW90 wire offers multiple practical benefits to installers, engineers, and facility managers:
3.1 Safety Assurance
The superior insulation quality of RW90 cable significantly reduces the risk of overheating and electrical faults. Its high temperature and moisture resistance make it an excellent choice for secure power transmission.
3.2 Long-Term Cost Efficiency
Due to its durability and reduced need for replacement or maintenance, RW90 cable proves cost-effective over the long term. Its extended life span reduces the total cost of ownership in electrical installations.
3.3 Code Compliance
RW90 wires are manufactured in compliance with CSA standards (Canadian Standards Association), and many are also UL-listed, ensuring they meet high safety and quality criteria for installation in regulated environments.
3.4 Wide Range of Sizes and Versatility
RW90 cable comes in a variety of American Wire Gauge (AWG) sizes to accommodate different current loads and application needs.
4.Common RW90 Cable Sizes and Their Applications
RW90 wire is available in several standard AWG sizes, allowing engineers to select the right cable based on the current load and installation environment. Below are some of the most commonly used sizes:

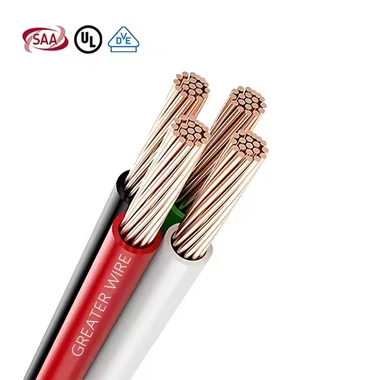

● 10 AWG RW90
The 10 AWG RW90 cable is ideal for medium-duty power distribution in residential and light commercial applications. It is commonly used for:
Circuit wiring
Electric water heaters
Air conditioning units
● 12 AWG RW90
The 12 AWG RW90 wire is suitable for low-load circuits such as:
Lighting systems
Receptacles in residential buildings
Small appliances and general-purpose outlets
● 3/0 AWG RW90
The 3/0 AWG RW90 cable is much thicker and used for high-capacity power transmission in industrial or large commercial facilities. Typical uses include:
Main feeder lines
Large HVAC systems
Heavy-duty motors and generators
Each size offers a specific current-carrying capacity, and the selection depends on the voltage level, installation condition, and safety requirements.
5.Installation Considerations
While RW90 cable is highly flexible and durable, there are certain guidelines to follow during installation:
Use proper conduit or raceway to protect the cable from physical damage.
Avoid excessive bending, especially in cold temperatures, as XLPE can become less flexible.
Ensure grounding and bonding is in accordance with local electrical codes.
Always follow CSA and UL standards when choosing and installing RW90 cables.
6.RW90 Cable vs Other Types
Compared to other common cables like THHN, TW, or XHHW, RW90 stands out in terms of its temperature rating and chemical resistance.
|
Cable Type |
Max Temp |
Wet Location Use |
Insulation Type |
Common Use |
|---|---|---|---|---|
|
RW90 |
90°C |
Yes |
XLPE |
Industrial, commercial |
|
THHN |
90°C |
No |
Nylon/PVC |
Dry indoor applications |
|
XHHW |
90°C/75°C |
Yes |
XLPE |
General purpose |
|
TW |
60°C |
Yes |
PVC |
Light residential |
Whether you are building a residential building, a commercial building, or expanding an industrial plant, choosing the right cable is key to ensuring the safe and efficient operation of the power system. Dongguan Greater Wire & Cable Co., Ltd., with more than 30 years of manufacturing experience, specializes in the production of XLPE cable, PVC cable, THHN, solar, silicone and other cables that meet UL, CSA, TUV and other national standards. We not only provide a wide range of product options, but also tailor-made construction suggestions and technical support for you. Contact us now to get your exclusive cable solution, so that every meter of cable is safer, more durable and more efficient!
