1. Overview of R90 conductors and their role in electrical engineering
R90 conductors are a type of wire product with a rated operating temperature of 90°C, which usually has good heat resistance, insulation and physical strength. R90 conductors are mostly used in fixed wiring systems in dry or humid environments, and are usually laid in wire tubes, cable trays or underground pipelines.
The main insulating material of R90 conductors is cross-linked polyethylene (XLPE), which has stronger heat resistance and aging resistance than traditional PVC materials. Therefore, R90 conductors have become the preferred product in electrical wiring for many construction projects.
2. What Does R90 Mean?
2.1 R90 Definition and Insulation Characteristics
The term R90 originates from Canadian Electrical Code (CEC) classifications:
"R" refers to thermoset or rubber-like insulation materials.
"90" indicates a 90°C maximum operating temperature in dry locations.
Most R90 conductors use cross-linked polyethylene (XLPE) insulation, known for:
High heat resistance
Excellent electrical insulation
Strong chemical and abrasion resistance
2.2 Voltage Ratings
R90 conductors are available in various voltage ratings:
RW90 600V: Ideal for general building wiring.

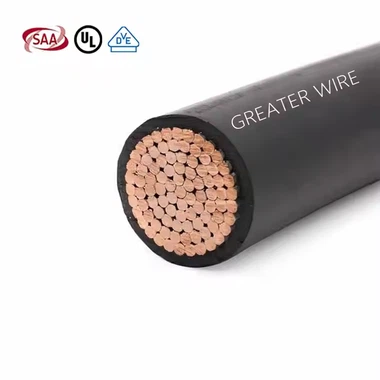

RW90 1KV (1000V): Suitable for industrial systems and longer-distance power transmission.
2.3 Conductor Materials
Copper: Offers excellent conductivity and mechanical strength.
rw90 aluminum: Lightweight and cost-effective, commonly used in large-scale or long-run wiring where weight and budget are critical factors.
3. Applications of R90 Conductors
A. Residential Wiring with R90 Conductors
R90 conductors, especially rw90 600v copper, are commonly used in home electrical systems-for lighting, outlets, HVAC systems, and water heaters.
Case Study 1: Vancouver Residential Retrofit Using rw90 6awg Copper
A single-family home in Vancouver underwent an electrical system upgrade due to aging wires. The electrician chose RW90 6AWG copper wires for high-load appliances like ovens and water heaters. The conductor's heat resistance and mechanical strength ensured compliance with the Canadian Electrical Code and improved the safety of the home.
B. Commercial Building Wiring
In office towers and commercial buildings, conductors such as rw90 1kv aluminum are used for main distribution lines due to their cost-effectiveness and lower weight.
Case Study 2: Toronto High-Rise Office Using rw90 1kv Aluminum
A commercial building in downtown Toronto implemented RW90 1KV aluminum cables for vertical power distribution between floors. The use of aluminum helped reduce the overall cable weight and saved over 10% in material costs. Installation was carried out with certified aluminum-compatible connectors to maintain safety.
C. Industrial Wiring for Equipment and Controls
In factories and production facilities, power loads are high and operating conditions are harsh. R90 conductors-especially those rated rw90 1kv-are chosen for their superior insulation properties and reliability.
Case Study 3: Food Processing Plant in Quebec Replacing Old Wiring
A food plant in Quebec replaced outdated PVC-insulated wires with RW90 600V 6AWG copper cables for all machinery. The team also used rw90 aluminum cables for the main switchboard. This upgrade significantly reduced maintenance issues, improved heat tolerance, and ensured regulatory compliance.
4. Comparison: R90 vs Other Conductor Types
| Property | R90 Conductor | RW90 Conductor | TW Conductor | NMD90 Cable |
|---|---|---|---|---|
| Insulation Type | XLPE | XLPE | PVC | PVC + Sheath |
| Temperature Rate | 90°C dry | 90°C dry | 60°C | 90°C |
| Voltage Rating | 600V–1KV | 600V–1KV | 300V–600V | 300V–600V |
| Usage | Conduit Only | Conduit Only | Damp areas | Indoor, in-wall |
| Sheath Included? | No | No | No | Yes |
While R90 and RW90 are very similar in structure, R90 may refer more broadly to national insulation classifications. RW90 is more commonly referenced in North American specifications. In terms of functionality, both offer excellent temperature and voltage performance, especially rw90 6awg for medium-load applications.
5. How to Choose the Right R90 Conductor
Recommended R90 Cable Configurations
| Application Area | Recommended Cable Type |
|---|---|
| Standard home circuits | RW90 600V 12AWG Copper |

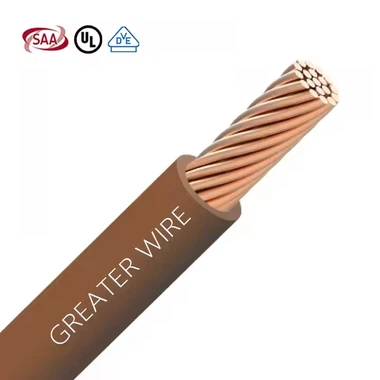

| Large appliances | RW90 6AWG Copper |
| Commercial main lines | RW90 1KV Aluminum or Copper |
| Factory control panels | RW90 1KV Mixed (Aluminum + Cu) |
Choosing Between rw90 6awg and rw90 aluminum
Choose rw90 6awg copper for short to medium distances where performance is critical.
Choose rw90 aluminum for long cable runs or high-volume installations, with proper terminals and antioxidant paste to prevent oxidation.
6. Installation Tips and Safety for R90 Conductors
Proper installation is vital for ensuring the safe operation of R90-rated wires. Consider the following:
Conduit Installation Required: R90 cables must be installed in appropriate conduit systems (metallic or PVC).
Avoid Overloading: Always calculate current capacity and ambient temperature to avoid exceeding the 90°C limit.
Aluminum-Specific Practices: For rw90 aluminum, use connectors certified for aluminum and apply antioxidant compound.
Compliance Matters: Always refer to local codes like CEC or NEC to ensure regulatory adherence.
7. Frequently Asked Questions (FAQs)
Q1: Can R90 conductors be used outdoors?
Not directly. R90 conductors are designed for dry locations and conduit use only. For outdoor applications, additional protection or outdoor-rated sheathing is required.
Q2: Is R90 the same as RW90?
Not exactly. They have very similar electrical and physical properties. However, RW90 is a specific designation commonly used in North America, especially under UL/CSA standards, while R90 may refer more broadly to insulation classification.
Q3: Can I substitute rw90 aluminum for copper?
Yes, but you must:
Adjust for aluminum's higher resistance
Use aluminum-rated lugs/connectors
Apply antioxidant paste during installation
