Heavy-duty applications demand cables that withstand constant abrasion, chemical exposure, UV radiation, and mechanical stress. A standard building wire like THHN in conduit may work indoors, but open trays, outdoor runs, and washdown areas kill ordinary cables quickly. The difference lies in four key areas: insulation material, jacket compound, shielding, and exposed run rating.
This article takes a commercial vs industrial analysis approach. You will learn why TC-ER cable for heavy-duty applications outperforms general-purpose cables, which construction features matter most, and how to select the right cable for your tough environment.
1. Insulation – The First Line of Defense Against Heat and Moisture
Heavy-duty environments often involve heat, humidity, or direct water contact. Pump rooms, outdoor trays, and food processing areas are examples.
XHHW-2 insulation is the gold standard for heavy-duty conditions. It is a cross-linked polyethylene (XLPE) material rated 90°C in both dry and wet locations. THHN, by contrast, drops to 75°C when wet. In a hot, humid pump room, THHN may fail in two years; XHHW-2 lasts 20 years.
What makes XHHW-2 so durable?
- Cross-linked molecular structure – does not melt or flow under heat.
- Low moisture absorption – prevents dielectric breakdown.
- Chemical resistance – withstands oils, acids, and solvents.
For heavy-duty applications, always specify XHHW-2 insulation. It is not a luxury; it is a necessity for long-term reliability.
2. Jacket – Protection Against Sunlight, Oil, and Abrasion
The cable jacket is the outer armor. In heavy-duty applications, it faces UV radiation from sunlight, oil mist from machinery, and physical abrasion from tray edges.
- Sunlight resistant PVC jacket contains UV stabilizers that prevent cracking and hardening. Outdoor trays without sunlight-resistant cable fail within three years. The black color itself is not enough – the jacket must say "Sunlight Resistant" or "UV Resistant" on the print.
- Oil resistant compounds prevent the jacket from swelling or softening when exposed to industrial lubricants, coolants, or hydraulic fluids. For machining centers or automotive plants, oil resistance is mandatory.
- Abrasion resistance comes from the tough PVC formulation and the TC-ER rating. TC-ER cables pass crush and impact tests, meaning the jacket can survive contact with tray edges and vibration.
A heavy-duty cable must have a jacket that is sunlight resistant, oil resistant, and abrasion resistant. Look for all three markings.
3. Shielding – Blocking EMI in Noisy Heavy-Duty Environments
Heavy-duty applications are full of electrical noise. VFDs, welders, contactors, and large motors radiate electromagnetic interference (EMI). Unshielded control cables act as antennas, picking up this noise and corrupting signals.
Shielded TC-ER cable uses an overall foil shield (100% coverage) with a tinned copper drain wire. The foil reflects or absorbs EMI, keeping the signal clean inside. The drain wire makes grounding easy.
When do you need shielding?
- The cable runs near VFDs or motors.
- The cable carries analog signals (4-20 mA, 0-10V, thermocouple).
- The cable run exceeds 100 feet.
- The tray also contains power cables.
For digital signals (24V DC discrete inputs) in a clean, short run, unshielded may be acceptable. For heavy-duty mixed trays, always lean toward shielded.
Ground the shield correctly – at one end only (typically the controller or PLC end). Grounding both ends creates ground loops that induce more noise than they block.
4. Exposed Run Rating (TC-ER) – Installing Without Conduit
Commercial buildings often require conduit for exposed cables. Heavy-duty industrial installations use cable trays, ladder racks, and open supports. Running conduit through a factory is expensive and slow.
TC-ER (Tray Cable, Exposed Run) rating under UL 1277 allows the cable to be installed without conduit in exposed locations – open trays, on cable ladders, along equipment surfaces – as long as it meets crush and impact resistance.
What does TC-ER mean for heavy-duty applications?
- Faster installation – no pipe bending, no pulling through conduit.
- Lower cost – less material and labor.
- Easy retrofits – add new cables without opening conduit.
Without the TC-ER marking, an inspector will require conduit for any exposed run. Always verify the jacket printing.
5. Three TC-ER Cable Specifications for Heavy-Duty Applications

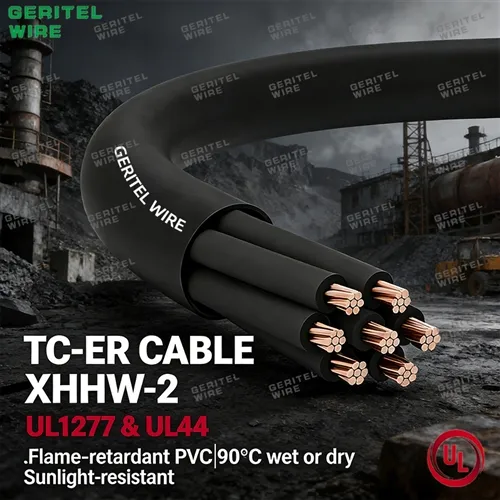

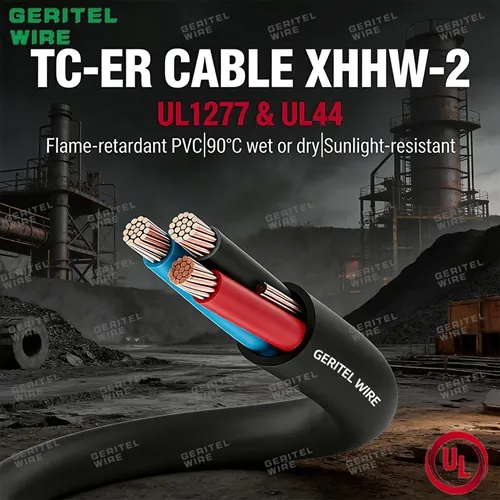

These three cables cover common heavy-duty scenarios. All are UL 1277 listed, TC-ER rated, with XHHW-2 insulation and sunlight resistant, oil resistant PVC jacket.
Specification 1: 2 AWG 4/C Shielded TC-ER – Heavy Feeder for Large Motors or MCCs
- Use for: Main power from a distribution panel to a 50–75 HP motor or a small motor control center.
- Why 2 AWG: Carries about 115A at 75°C or 130A at 90°C. Low voltage drop over 200+ feet.
- Why 4/C: Three phase conductors plus an insulated ground. The insulated ground prevents corrosion in wet trays.
- Why shielded: Reduces EMI if the feeder runs near sensitive instrumentation. For pure power without nearby electronics, unshielded saves cost.
- Heavy-duty feature: XHHW-2 insulation and oil resistant jacket survive pump rooms, chemical areas, and outdoor trays.
Specification 2: 8 AWG 3/C Unshielded TC-ER – Fixed-Speed Motor Feeder
- Use for: A 10 to 20 HP motor in a dry industrial plant. No VFD, no sensitive signals nearby.
- Why 8 AWG: Rated 50–55A at 90°C, sufficient for 15 HP (21A) with margin.
- Why 3/C: Three phase conductors only. Ground is provided by the tray or a separate bare wire. Saves cost.
- No shield: Acceptable because the environment is electrically clean and the run is short.
- Heavy-duty feature: Sunlight resistant jacket allows outdoor tray use; XHHW-2 resists heat from the motor.
Specification 3: 12 AWG 4/C Shielded TC-ER – Control and Monitoring in Mixed Trays
- Use for: 24V DC sensor wiring, PLC I/O, and analog signals (4-20 mA) in trays with power cables.
- Why 12 AWG: Good for runs up to 150 feet at 24V with acceptable voltage drop.
- Why 4/C: Three control wires plus an insulated ground. The ground provides a clean reference.
- Why shielded: The foil shield blocks EMI from nearby VFDs and power feeders.
- Heavy-duty feature: Oil resistant jacket survives machine tool environments; TC-ER rating allows exposed run.
These three specifications give you a starting point. Adjust gauge based on distance and load. For longer runs, upsize to 1/0 or 2/0. For wet areas, always use XHHW-2 and insulated ground (4/C).
6. Selection Reminder – Two Critical Differences
From our team: When selecting a commercial electrical cable for heavy-duty applications, focus on two questions.
First, do you need an insulated ground (4/C) or is a bare ground (3/C) enough?
- Use 4/C with insulated green ground for wet or corrosive environments. The insulation prevents corrosion and ensures a low-resistance ground for analog signals.
- Use 3/C (with separate tray ground) for dry indoor digital-only circuits where cost is critical.
Second, do you need shielding?
- Yes for any cable near VFDs, motors, or power cables. Yes for analog signals. Yes for runs over 100 feet.
- No for short, clean digital runs in isolated trays.
What about industrial control and monitoring systems? They have special requirements: analog signals demand shielding and an insulated ground; long distances require larger gauge to prevent voltage drop; mixed trays need shielded cables to avoid EMI coupling. Do not treat a PLC control cable the same as a simple power feeder.
7. UL Certifications – What the Markings Mean
Our TC-ER cables meet North American safety standards. Conductors with XHHW-2 insulation comply with UL 44 for thermoset-insulated wires. Conductors with THHN/THWN-2 comply with UL 83 for thermoplastic-insulated wires. The complete tray cable assembly carries UL 1277 listing for Tray Cable with Exposed Run rating. These markings are printed on the jacket. For our UL file numbers, request the certificate from our technical team.
FAQ
Q1: What is the difference between commercial and industrial electrical cable?
A: Commercial cables (like THHN in conduit) are designed for dry, indoor, protected environments. Industrial cables (TC-ER with XHHW-2) are built for wet, oily, outdoor, and abrasive conditions. They have tougher jackets, higher temperature ratings, and exposed run ratings that allow installation without conduit.
Q2: Can I use TC-ER cable for direct burial in heavy-duty applications?
A: Only if the jacket is additionally marked "DIR BUR" or "Direct Burial". Standard TC-ER is not rated for direct earth contact. For underground heavy-duty runs, either use cable with direct burial marking or install in conduit.
Q3: How does sunlight resistance affect cable life outdoors?
A: UV radiation breaks down standard PVC jackets, causing them to harden and crack. Sunlight resistant jackets contain UV stabilizers that prevent this degradation. Outdoors, a sunlight resistant TC-ER cable can last 10+ years; a non-rated cable may fail in 2–3 years.
Q4: Does Greater Wire offer TC-ER cable with both XHHW-2 and oil resistant jacket?
A: Yes. We manufacture UL 1277 listed TC-ER cable with XHHW-2 insulation and sunlight resistant, oil resistant PVC jacket. Available in gauges from 12 AWG to 500 kcmil, 3/C or 4/C, shielded or unshielded. Contact us with your heavy-duty application details.
Q5: What is the maximum ambient temperature for XHHW-2 TC-ER cable?
A: XHHW-2 insulation is rated for continuous operation at 90°C in both dry and wet locations. For higher temperatures, special cables are required. Always consider additional derating when bundling multiple cables in a tray.
Need a Quote for Heavy-Duty TC-ER Cable?
Tell us your application: environment (wet, oily, outdoor, high temperature), load current, distance, and whether you need shielding or an insulated ground. We will recommend the right cable – 2 AWG 4/C shielded, 8 AWG 3/C unshielded, 12 AWG 4/C shielded, or other gauges – and send a quote within 24 hours.
