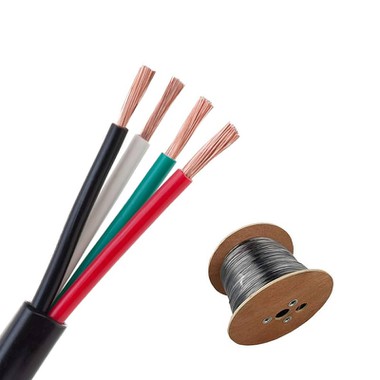

Royal Cord Cable is a cornerstone of modern electrical systems, offering reliability and adaptability across industries. Its products, such as H05VV-F wire and H03VV-F cable, are engineered with precision to meet diverse operational demands. Central to their performance is the insulation material, which ensures safety, durability, and compliance with global standards.
1. PVC Insulation: The Standard for Versatility
Polyvinyl chloride (PVC) is the most widely used insulation material in Royal Cord Cable products. Its popularity stems from its balance of flexibility, affordability, and resistance to environmental factors.
Technical Specifications:
Temperature Range: PVC insulation operates effectively between -40°C and +70°C, making it suitable for both fixed installations (e.g., wiring in walls) and mobile applications (e.g., portable tools).
Chemical Resistance: PVC resists moisture, oils, acids, and alkalis, ensuring longevity in harsh environments.
Flame Retardancy: While PVC is not naturally flame-retardant, additives like antimony trioxide can enhance its fire resistance to meet IEC 60332-1 standards.
Applications in Key Products:
H05VV-F Wire: This round flexible cable features PVC insulation and sheathing, designed for medium-duty power transmission in appliances, machinery, and lighting systems.
H03VV-F Cable: With a lower voltage rating (300/300V), this flat cable is ideal for household electronics, extension cords, and low-power control circuits.
Advantages:
Cost-effective for large-scale projects.
Easy to color-code for phase identification (e.g., brown for live, blue for neutral).
Lightweight and easy to install in confined spaces.
2. Thermoplastic Elastomer (TPE): Enhancing Flexibility
For applications requiring extreme flexibility, Royal Cord Cable employs thermoplastic elastomer (TPE) insulation. TPE combines the elasticity of rubber with the recyclability of thermoplastics.
Key Properties:
Flexibility: TPE retains its shape even after repeated bending, making it ideal for robotics, automated machinery, and medical devices.
Temperature Resistance: Withstands temperatures from -50°C to +125°C, outperforming standard PVC.
Environmental Safety: TPE is free from halogens and phthalates, aligning with RoHS and REACH regulations.
Use Cases:
H05VV-F Variants: TPE-insulated versions of H05VV-F are used in dynamic environments like conveyor belts or CNC machines.
Custom Solutions: TPE-insulated cables are tailored for electric vehicles (EVs) and renewable energy systems.
3. Silicone Rubber: For Extreme Heat and Cold
In high-temperature or cryogenic environments, Royal Cord Cable utilizes silicone rubber insulation. This material excels in applications where PVC or TPE would degrade.
Technical Highlights:
Thermal Stability: Silicone rubber operates between -60°C and +180°C, making it suitable for industrial ovens, foundries, and solar panel installations.
Dielectric Strength: Offers excellent electrical insulation even under thermal stress.
UV and Ozone Resistance: Performs reliably in outdoor or high-altitude settings.
Product Example:
H05SJ-K Cable: Silicone-insulated cables connect inverters to solar panels, enduring temperature fluctuations and UV exposure.
4. Low Smoke Zero Halogen (LSZH): Safety in Confined Spaces
LSZH insulation is critical in public infrastructure and enclosed areas where fire safety is paramount.
Features:
Low Toxicity: Emits minimal smoke and no corrosive halogens when burned, protecting both equipment and personnel.
Compliance: Meets IEC 60754-1 (smoke emission) and IEC 61034-2 (toxicity) standards.
Applications:
H07Z-K Cables: LSZH-insulated cables are deployed in subways, airports, and data centers to prevent hazardous fumes during fires.
Marine Installations: Used in shipboard systems to comply with SOLAS safety regulations.
5. Cross-Linked Polyethylene (XLPE): High-Voltage Solutions
For high-voltage applications, Royal Cord Cable incorporates XLPE insulation, which offers superior thermal and mechanical properties.
Performance Metrics:
Temperature Tolerance: Functions between -40°C and +90°C, with short-term tolerance up to 250°C.
Abrasion Resistance: Ideal for underground cabling or industrial setups with heavy machinery.
Industry Use:
H07RN-F Cable: XLPE-insulated cables power construction equipment, mining drills, and offshore wind turbines.
6. Comparative Analysis: Choosing the Right Insulation
Selecting insulation depends on factors like environment, voltage, and regulatory requirements. Below is a quick guide:
| Material | Best For | Limitations |
|---|---|---|
| PVC | Budget projects, indoor use | Limited high-temperature use |
| TPE | Dynamic, repetitive motion | Higher cost than PVC |
| Silicone Rubber | Extreme temperatures | Less flexible than TPE |
| LSZH | Public spaces, enclosed areas | Reduced flexibility |
| XLPE | High-voltage, rugged environments | Complex installation |
7. Compliance and Certifications
Royal Cord Cable's insulation materials meet stringent international standards, ensuring global acceptance:
VDE Certification: Validates electrical safety for H05VV-F and H03VV-F cables in European markets.
UL Listing: Required for North American installations, confirming fire resistance and performance.
IEC Standards: Govern conductor sizing (IEC 60228) and flame propagation (IEC 60332).
8. Future Trends in Insulation Technology
The insulation industry is evolving to address sustainability and efficiency demands:
Bio-Based PVC: Manufacturers are developing PVC from renewable resources to reduce carbon footprints.
Self-Healing Insulation: Polymers that repair minor cracks automatically could revolutionize maintenance in harsh environments.
Smart Insulation: Integration of sensors to monitor temperature, wear, and electrical faults in real time.
