For electrical professionals working in the United States, American standard PVC jacketed MC cable is the industry standard for wiring projects that require protection against moisture and environmental damage. However, many contractors still confuse its application boundaries with standard bare-armor MC cable, leading to premature corrosion, hidden electrical faults and costly inspection failures. This article breaks down the most common approved applications and standard specifications for PVC jacketed MC cable in U.S. commercial and industrial projects, with guidance aligned to American electrical industry practices.
1. The Costly Compliance Risk of Misapplying Standard MC Cable in the U.S.
Standard bare-armor MC cable, with its exposed aluminum interlocked armor or galvanized steel armor, is only designed for 100% dry indoor environments. When used in damp or outdoor locations-even when run through conduit-internal condensation will eventually corrode the bare metal armor, causing insulation degradation and ground connection failures.
This misapplication is one of the leading causes of rework in U.S. commercial construction. Many projects have been delayed or required complete rewiring because standard MC cable was incorrectly specified for wet locations. American standard PVC jacketed MC cable solves this problem by adding a seamless, UV-stabilized PVC outer jacket that completely seals the metal armor from the environment, making it suitable for a wide range of harsh conditions where standard MC cable cannot be used.
2. Top Commercial Construction Applications for American Standard PVC Jacketed MC Cable
PVC jacketed MC cable is used extensively in U.S. commercial construction projects. The most common approved applications include:
· Outdoor Parking Lot and Exterior Building Lighting: Exposed to rain, snow and UV radiation, outdoor lighting systems require cable that can withstand year-round weather conditions. PVC jacketed MC cable provides reliable protection against the elements, making it the preferred choice for parking lot lighting, building facade illumination and landscape lighting installations.
· Rooftop HVAC Equipment: Commercial rooftop HVAC units are exposed to extreme temperature fluctuations and direct sunlight. PVC jacketed MC cable is ideal for powering these units, as it resists UV degradation and temperature-induced aging far better than standard bare-armor MC cable.
· Basement and Crawl Space Wiring: Basements and crawl spaces are naturally damp environments, even in well-ventilated buildings. Standard MC cable will corrode quickly in these areas, but PVC jacketed MC cable provides the necessary moisture protection to ensure safe, long-lasting operation.
· Car Wash Facilities: Car washes are among the most demanding commercial environments for electrical wiring, with constant exposure to water, cleaning chemicals and high humidity. PVC jacketed MC cable's corrosion-resistant properties make it the only practical choice for these facilities.
3. Industrial Facility Applications Where PVC Jacketed MC Cable Excels
In addition to commercial construction, PVC jacketed MC cable is widely used in U.S. industrial facilities where reliability is critical. Key industrial applications include:
· Manufacturing Plant General Power Distribution: PVC jacketed MC cable is used for general power distribution, lighting and control circuits in manufacturing facilities. It resists exposure to oils, greases and mild chemicals commonly found in industrial environments, and its flexible interlocked armor makes it easy to install in complex plant layouts.
· Warehouse and Distribution Centers: Large warehouse facilities often have exposed wiring runs in high-bay areas. PVC jacketed MC cable provides the necessary mechanical and environmental protection for these installations, while also being compatible with cable tray and surface mounting systems.
· Food Processing Non-Processing Areas: While not suitable for direct food contact zones, PVC jacketed MC cable is widely used in non-processing areas of food processing plants, where it resists moisture and regular washdowns.
· Outdoor Industrial Equipment: Any outdoor industrial equipment, from pumps and compressors to conveyor systems, can benefit from the protection provided by PVC jacketed MC cable. Its UV-stabilized jacket ensures long-term performance in exposed outdoor locations.
4. Standard U.S. Specifications for PVC Jacketed MC Cable
For U.S. commercial and industrial projects, these three specifications are the most widely used and universally accepted:
· 600V XHHW-2 PVC jacketed MC cable: The standard voltage rating for nearly all commercial and industrial applications in the United States. It is available with both bare ground and insulated green ground conductors, and in 3/C and 4/C configurations for multi-circuit power distribution.
· XHHW-2 aluminum interlocked armor PVC jacket MC cable: The most common construction type for U.S. projects. Aluminum interlocked armor is lightweight, flexible and corrosion-resistant, making it easier and faster to install than galvanized steel armor alternatives.

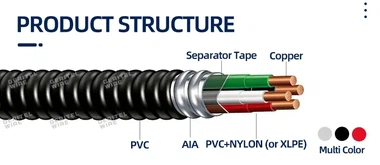

· XHHW-2 MC cable 90C wet and dry locations: The standard temperature rating for PVC jacketed MC cable in the U.S. It is approved for use in both wet and dry environments, providing consistent performance across a wide range of operating conditions.
For general-purpose applications where XHHW-2 is not required, THHN/THWN-2 insulated PVC jacketed MC cable is also widely used in U.S. commercial projects.
5. Critical Selection Reminder for U.S. Projects
Before specifying PVC jacketed MC cable for any U.S. project, you must confirm that the cable is clearly marked with "Wet Location" on its jacket. This marking is required for compliance with U.S. electrical codes. Additionally, always verify the specific requirements of your local NEC jurisdiction for the exact installation scenario, as code interpretations can vary slightly between regions.
6. Frequently Asked Questions About U.S. PVC Jacketed MC Cable Use
Q: Can American standard PVC jacketed MC cable be used outdoors in the U.S.?
A: Yes, PVC jacketed MC cable with UV-stabilized jacket is approved for outdoor use in the United States, as it provides excellent resistance to UV radiation and weather conditions.
Q: What is the difference between XHHW-2 and THHN/THWN-2 insulation in PVC jacketed MC cable?
A: XHHW-2 insulation offers better heat resistance and is preferred for industrial applications with higher operating temperatures, while THHN/THWN-2 is suitable for most general commercial uses.
Q: Is PVC jacketed MC cable suitable for damp basements?
A: Yes, the sealed PVC outer jacket provides excellent moisture protection, making it ideal for damp and wet locations including basements and crawl spaces.
Q: Do I need to use conduit with PVC jacketed MC cable?
A: In many applications, PVC jacketed MC cable can be installed without additional conduit, but you should always verify the specific requirements of your local electrical code.
7. Get U.S.-Compliant MC Cable for Your Project
Selecting the correct cable for your U.S. commercial or industrial project is critical to ensuring compliance, reliability and avoiding costly rework. At Dongguan Greater Wire & Cable Co., Ltd., we supply a full range of American standard PVC jacketed MC cable that meets the requirements of U.S. construction projects.
Our product line includes all the standard specifications mentioned in this article, and we can provide customized solutions to meet your specific project needs. We work closely with electrical contractors, distributors and project buyers across the United States to deliver high-quality cable products on time and on budget.
