When a commercial or industrial job calls for a 40A to 50A branch circuit – think HVAC units, commercial kitchen equipment, or small industrial machinery – 8/3 PVC Jacketed MC Cable is often the right choice. It delivers more power than 12/2 or 10/2 cables, yet remains flexible enough to install through studs, trays, or conduits.
This article focuses on 8/3 PVC Jacketed MC Cable – its typical applications in commercial and industrial buildings, the structural advantages that make it suitable for demanding environments, and key buying considerations including chemical resistance, fire compliance, and UV protection.
1.Where 8/3 PVC Jacketed MC Cable Is Used in Commercial & Industrial Jobs
Commercial Buildings
In commercial construction, 8/3 MC cable with PVC jacket is commonly specified for:
- HVAC rooftop units – Many package units (5–7.5 tons) require a 40A or 50A feed. The PVC jacket protects against rooftop UV exposure and temperature extremes.
- Commercial kitchen equipment – Ovens, dishwashers, and large fryers often need 8 AWG copper. The PVC jacket resists grease and occasional cleaning chemicals.
- Elevator machine rooms – Feeds for elevator motors. The armored construction provides physical protection in equipment rooms.
- Data center cooling – CRAC units frequently use 8/3 feeders.
Industrial Facilities
Industrial environments add challenges like chemical exposure, vibration, and dust. 8/3 PVC jacketed MC cable is used for:
- Small motors and pumps (5–10 HP, 208–240V) – Conveyor drives, hydraulic pumps, and fans.
- Welding equipment power – Some smaller welders draw 40–50A. The PVC jacket resists sparks and light oil.
- Control panels to field devices – Where a heavy-duty, jacketed armor is required by plant safety rules.
- Temporary power for maintenance – The cable's durability allows repeated handling.
2.Why the PVC Jacket Matters in These Settings
Without a PVC jacket, standard MC cable's interlocked armor can allow moisture ingress and offers no UV protection. In commercial rooftop or industrial chemical areas, the PVC jacket provides:
- UV resistance – Prevents cracking from sunlight.
- Chemical resistance – Resists many industrial fluids (oils, coolants, mild acids).
- Extra moisture barrier – For outdoor or high-humidity indoor areas.

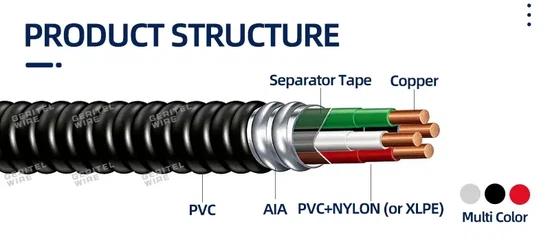

3.Structure Advantages of 8/3 PVC Jacketed MC Cable
Three layers work together to deliver performance in commercial and industrial jobs:
| Layer | Material / Design | Advantage |
|---|---|---|
| Conductor | Stranded copper (8 AWG) | Stranded for flexibility; copper for reliable termination and corrosion resistance. |
| Insulation | THHN/THWN (dual-rated) | Dry rating 90°C, wet rating 75°C (or 90°C for -2). Resists oil, solvents, and heat. |
| Armor | Aluminum interlocked | Approximately 30% lighter than steel armor – easier to pull and support. |
| PVC Jacket | Sunlight-resistant PVC | Blocks UV, resists moisture and many chemicals. Also protects the armor from corrosion. |
Additionally, 8/3 PVC jacketed MC cable typically includes a full-size bare copper ground (often 10 AWG or 8 AWG). Confirm with your supplier.
4.Buying Considerations – Addressing Commercial & Industrial Pain Points
When sourcing 8/3 PVC jacketed MC cable for commercial or industrial projects, check these five points:
-
Chemical Resistance – Will the Jacket Survive?
Commercial kitchens have grease and cleaning agents. Industrial plants have oils, coolants, and solvents. Standard PVC jackets resist mild chemicals – but not strong acids or prolonged solvent immersion.
Ask your supplier: "Is this jacket suitable for exposure to [specific chemical]?" Request test data.
-
Fire Compliance – What Standards Does It Meet?
Ask your supplier for flame test compliance (e.g., VW-1, FT4) and any available certificates. We cover our UL certification below.
-
UV Resistance – Will It Crack on a Rooftop?
Look for the words "sunlight resistant" or "UV resistant" printed on the cable. If the cable will be exposed outdoors (e.g., rooftop HVAC), this is mandatory.
-
Armor Material – Aluminum vs. Steel
For 8/3 cable, aluminum armor typically reduces total cable weight by about 30% compared to steel, making rooftop or overhead installations easier. Steel armor is stronger but heavier and may rust in wet environments.
-
Grounding – Is the Full-Size Ground Included?
Verify the ground conductor size with your supplier. A full-size copper ground helps ensure code compliance and safety.
5.Common Mistakes to Avoid
- Using non-jacketed MC cable on rooftops – UV may degrade the armor's finish and moisture can enter through interlocked gaps.
- Assuming "PVC jacket" means "chemical proof" – Always check specific chemical compatibility.
- Oversizing or undersizing – 8 AWG is typically rated for 40–50A depending on insulation type and ambient temperature. For 60A, consider 6 AWG.
- Ignoring bend radius – 8/3 is thicker than smaller gauges. Use a bending gauge to avoid kinking the armor.

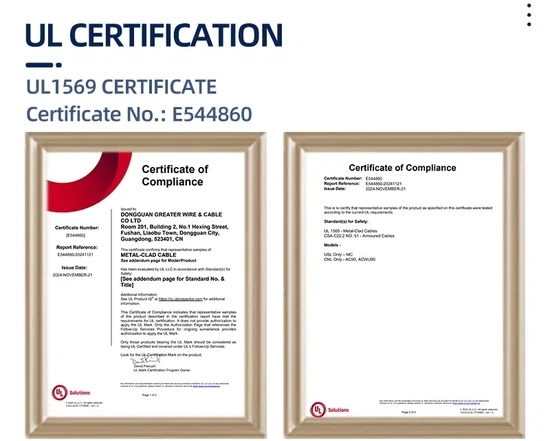

6.Our UL Certification for Metal-Clad Cable
We hold UL certification for our Metal-Clad Cable products. Below is the information exactly as it appears on our certificate:
Standard: UL 1569 (Metal-Clad Cable)
Certificate Number: E544860
Issue Date: November 21, 2024
Certificate Holder: DONGGUAN GREATER WIRE & CABLE CO LTD
This certificate covers representative samples of Metal-Clad Cable as described in the UL file. For specific 8/3 PVC jacketed constructions, we can provide the certificate and relevant test reports upon request. Always verify that the product you receive bears the UL Mark.
FAQ – Quick Answers for Buyers
Q: What is the typical ampacity of 8/3 PVC Jacketed MC Cable with THHN/THWN insulation?
A: For copper conductors, 8 AWG THHN/THWN is typically rated around 50A at 75°C (wet) and 55A at 90°C (dry). However, always consult the supplier's datasheet and local code for your specific installation.
Q: Can 8/3 PVC Jacketed MC Cable be used outdoors?
A: Yes, if the PVC jacket is marked "sunlight resistant" or "UV resistant". The jacket protects against UV and moisture. For direct burial, confirm the cable is specifically rated for that – do not assume.
Q: How much weight savings does aluminum armor provide compared to steel?
A: Approximately 30%. For a 1000-foot reel of 8/3, that can be 50–70 lbs lighter – ask your supplier for exact weight data.
Q: Is the grounding conductor insulated?
A: Standard construction uses a bare copper ground. Insulated green ground is available as a special order for projects requiring extra corrosion protection or isolation.
Q: Can you provide the UL certificate for 8/3 PVC jacketed MC cable?
A: We hold UL 1569 certification (E544860) for Metal-Clad Cable. We can share the certificate and, for specific cable constructions, provide relevant documentation. Please contact us.
Ready to Specify 8/3 PVC Jacketed MC Cable for Your Next Job?
Whether you are wiring a commercial rooftop HVAC unit, an industrial motor, or a kitchen exhaust system, the right cable makes the difference. Our 8/3 PVC jacketed MC cable combines lightweight aluminum armor, dual-rated THHN/THWN insulation, and a UV-resistant PVC jacket – backed by our UL 1569 certification.
