Application Scenarios Of UL 4703 PV Cable in Photovoltaic Power Plants

As the global energy structure undergoes transformation, photovoltaic (PV) power generation has become one of the fastest-growing sectors of renewable energy. Whether in large-scale ground-mounted PV power plants or distributed rooftop solar projects, cables play a critical role in ensuring reliable power transmission. A cable is not just a conductor of electricity-it directly affects the safety, efficiency, and long-term stability of the entire PV system.

Among the wide range of cables available, the UL 4703 PV Cable stands out as a dedicated solar cable designed to withstand harsh outdoor environments. With its superior electrical properties, excellent weather resistance, and compliance with North American standards, UL 4703 has become one of the most commonly used cables in PV power plants.

This article provides a comprehensive analysis of the technical characteristics of UL 4703 PV Cable, explores its application scenarios in PV power plants, and compares it with other common types of cables, particularly XHHW-2. It also highlights the advantages our company offers in terms of product range, technical support, customization, and international cooperation, providing global customers with reliable cable solutions for solar energy projects.

What is UL 4703 PV Cable?

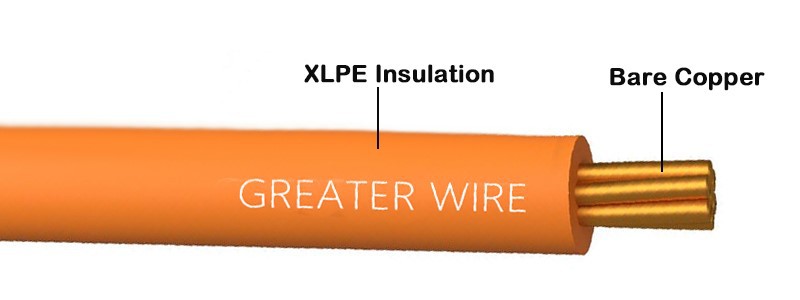

The UL 4703 PV Cable is a dedicated cable designed specifically for PV systems in accordance with UL standards. It is primarily used for wiring between solar modules, from modules to combiner boxes, and from combiner boxes to inverters. Unlike general-purpose cables, UL 4703 is built to handle long-term outdoor exposure and meet the stringent requirements of solar installations.

Key Characteristics of UL 4703 PV Cable

• Rated Voltage: Available in 600V, 1000V, and 2000V to meet the high-voltage requirements of PV systems.
• Temperature Rating: Designed for continuous operation at 90°C, with short-term resistance up to 120°C.
• Insulation Material: Typically cross-linked polyethylene (XLPE) or equivalent, offering excellent dielectric strength and mechanical durability.
• Jacket Material: UV-resistant, flame-retardant, abrasion-resistant, and weatherproof for long-term outdoor use.
• Flame Resistance: Meets FT4/IEEE 1202 flame test standards, ensuring compliance with North American safety codes.
• Installation Methods: Suitable for conduit, direct burial, aerial, and cable tray installations.

Thanks to these features, UL 4703 cables provide long-term reliability in PV systems operating under harsh environmental conditions.

Application Scenarios of UL 4703 PV Cable

From PV Modules to Combiner Boxes

Thousands of solar modules in a PV plant must be interconnected and connected to combiner boxes. The cables used in this section must feature:

• UV resistance to withstand prolonged sunlight exposure without degradation;
• Flexibility for easy routing among densely arranged modules;
• Stable electrical performance to minimize voltage drop over long runs.

UL 4703 PV Cable is engineered for this exact purpose, ensuring safe and efficient energy transmission from solar modules.

From Combiner Boxes to Inverters

The section between combiner boxes and inverters carries the combined output current, requiring cables with higher current-carrying capacity and flame resistance. UL 4703 PV Cable provides the robust insulation and conductivity necessary to ensure both efficiency and safety.

From Inverters to AC Distribution Panels

Although UL 4703 is primarily designed for the DC side, in certain system designs, it can also be applied in AC wiring between inverters and distribution equipment. Its insulation and jacket properties guarantee safety and reliability in both DC and AC applications.

Direct Burial and Aerial Installations

In ground-mounted PV plants, cables must traverse varied terrains, often requiring both direct burial and aerial routing. UL 4703 performs reliably in both cases:

Direct Burial: Its robust jacket withstands soil conditions without additional conduit protection.

Aerial Installation: Strong mechanical strength and abrasion resistance ensure stable operation even in windy and sandy environments.

Special Environments

• High-Temperature Desert Regions: UL 4703's heat resistance ensures insulation stability under intense heat.
• High-Altitude Locations: Maintains dielectric performance in low air-pressure conditions.
• Tropical and Humid Areas: Excellent moisture resistance prevents insulation failure caused by water ingress.

Comparison Between UL 4703 and XHHW-2 Cables

XHHW-2 is another commonly used cable in electrical systems. However, when compared with UL 4703 in solar applications, several differences emerge:

This comparison shows that while XHHW-2 is reliable in industrial and building wiring, UL 4703 PV Cable is better suited for the demanding, long-term outdoor requirements of solar power plants.

Technical Advantages of UL 4703 PV Cable

1.Long-Term Weather Resistance: Optimized jacket formulation ensures resistance to UV, ozone, and extreme temperatures, supporting outdoor service life exceeding 25 years.

2.Stable Electrical Properties: Low resistance and high conductivity minimize power losses and improve system efficiency.

3.High Flame Resistance: Meets strict North American fire safety codes.

4.Ease of Installation: Flexible design simplifies routing in densely packed module fields.

5.All-Scenario Adaptability: Performs reliably across deserts, rooftops, high altitudes, and humid environments.

Our Product Strengths

• We professionally manufacture UL-certified cables with a complete product range

Our company specializes in UL-certified wires and cables, offering UL 4703, THHN, THW, MC cable, AC cable, and more. Customers can explore our full UL wire product series for comprehensive solutions.

• Our cables fully meet the demands of the American market

All products comply with UL and CSA certifications, ensuring compatibility with the requirements of solar projects in the U.S., Canada, and Latin America.

• We provide full coverage of specifications and models

From 4AWG to 1000kcmil, our cables cover a wide range of system capacities, supporting projects of varying sizes and complexities.

• We ensure strong supply capacity and fast delivery

Whether you need small trial orders or bulk shipments for large EPC projects, we provide quick turnaround times to guarantee smooth project progress.

• Our service advantages are comprehensive

We offer professional pre-sales technical consulting and after-sales support, ensuring that customers receive guidance throughout selection, installation, and operation.

• We have extensive international cooperation experience

With years of manufacturing and export expertise, we have established long-term partnerships with clients across the Americas, Europe, Australia, and the Middle East.

• All our cables are UL certified

Every product meets UL standards, guaranteeing compliance, safety, and long-term reliability in international markets.

• We offer full customization services with complete color options

We provide customization in materials, specifications, length, color, performance, marking, and packaging, catering to the needs of EPC contractors, distributors, and project owners worldwide.

Industry Applications of UL 4703 PV Cable

1.Utility-Scale Ground-Mounted PV Plants: UL 4703 is widely applied in >100MW projects, particularly for module-to-combiner box connections, reducing maintenance costs.

2.Rooftop Solar Projects: Its flexibility makes it ideal for installation in complex building structures.

3.Solar + Storage Systems: Demonstrates excellent stability under high DC current demands in energy storage integrations.

4.Global Markets: Extensively deployed in the U.S., Mexico, Chile, Brazil, and other international solar projects.
