The capacity of a 4mm solar pv cable to handle electrical power is a common question when designing solar power systems. Proper understanding ensures system efficiency, prevents overheating, and avoids safety risks. In this article, we'll explore the factors determining the power a solar 4mm cable (also known as solar wire) can handle, how to calculate its capacity, and the importance of correct cable selection in solar installations.

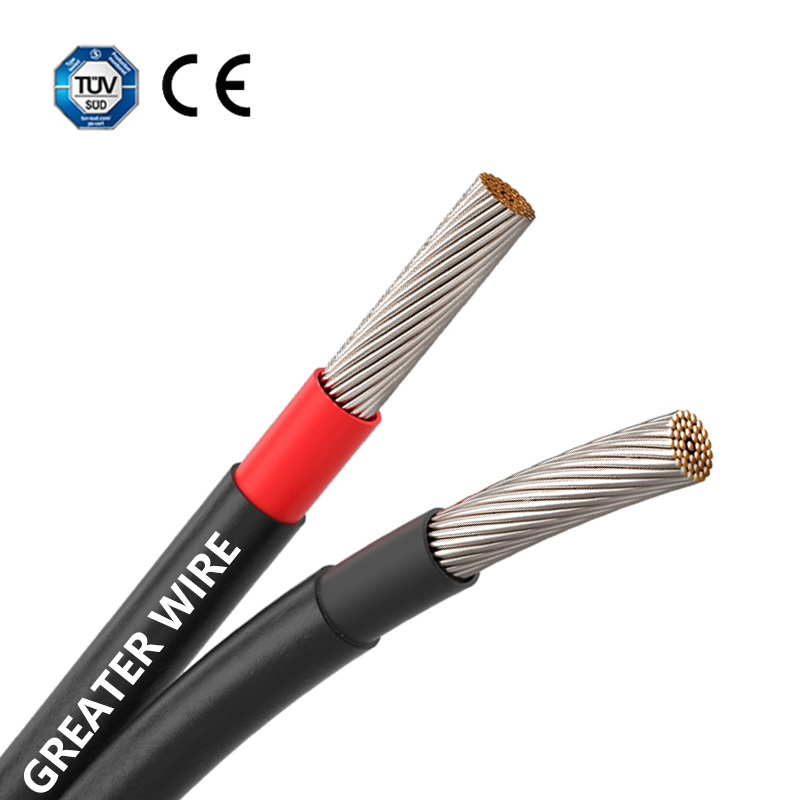

What Is a Solar Cable?
A solar cable or solar wire is a specialized electrical cable designed for use in photovoltaic (PV) systems. It connects solar panels to inverters, batteries, and other components, transmitting the electricity generated by the solar array.
Key characteristics of solar cables include:
UV resistance: Designed for prolonged outdoor exposure to sunlight.
High voltage tolerance: Capable of handling up to 1500V DC in modern systems.
Durability: Resistant to temperature fluctuations, water, and mechanical stress.
Common standards for solar cables include H1Z2Z2-K and PV1-F, both ensuring safety and performance in PV installations.
Current-Carrying Capacity of 4mm² Solar Cables
The current-carrying capacity of a solar cable is a critical factor that determines how much electrical power it can handle. The ampacity (maximum current the cable can carry safely) depends on:
Material: Typically, photovoltaic cable use tinned copper, which offers excellent conductivity and resistance to corrosion.
Installation conditions: Cables installed in open air dissipate heat better than those buried or bundled.
Ambient temperature: Higher temperatures reduce a cable's ampacity.
Voltage drop: Over long distances, voltage loss can affect performance, necessitating thicker cables.
For a standard 4mm² solar cable, typical ampacity values are:
H1Z2Z2-K: Up to 55A (ambient temperature of 30°C, open-air installation).
PV1-F: Up to 44A (same conditions).
Calculating Power (kW) a 4mm² solar Cable Can Handle
Power capacity can be calculated using the formula:
Power (kW)=Voltage (V)×Current (A)÷1000
For example:
A 4mm pv cable with an ampacity of 55A and operating at 1000V DC can handle:
1000 V×55 A÷1000=55 kW
If the same cable operates at 500V DC:
500 V×55 A÷1000=27.5 kW
Thus, the power capacity varies directly with the system voltage.
Factors Influencing Cable Selection
System Voltage and Current:
The operating voltage and current determine the cable's required size. For high-current systems, larger cross-sectional areas may be necessary to avoid excessive heat generation.
Distance and Voltage Drop:
Voltage drop is a common challenge in PV systems, especially over long distances. To minimize energy loss, ensure the voltage drop is less than 3%. For longer cable runs, consider increasing the cable size or using higher-voltage systems.
Environmental Conditions:
Extreme heat, UV exposure, or moisture can degrade cables. Select solar pv cable that meet standards like H1Z2Z2-K for superior performance in harsh environments.
Safety Standards:
Compliance with standards like IEC 62930 ensures the cable is fire-resistant, low-smoke, and halogen-free, improving system safety.
Comparison Between Solar cable and Regular Electrical Cables
Solar cables are specifically designed for PV systems, offering advantages over regular electrical cables:
| Feature | solar panel cable | Regular Electrical Cable |
|---|---|---|
| UV Resistance | Yes | No |
| Voltage Range | Up to 1500V DC | Typically 220V-600V AC |
| Temperature Resistance | Wider range (-40°C to +120°C) | Limited (-10°C to +70°C) |
| Standards | H1Z2Z2-K, PV1-F | General electrical standards (e.g., IEC 60227) |
Using regular cables for solar installations can lead to reduced efficiency, faster degradation, and safety hazards.
Practical Use Cases for 4mm² Solar Cable
Residential Systems:
For a 5kW system operating at 1000V DC, the current is around 5A. A 4mm² pv cable is more than sufficient to handle this load.
Commercial Installations:
In a 50kW system, multiple parallel arrays may use 4mm² solar pv cables to connect individual strings to the inverter.
Off-Grid Applications:
For off-grid systems with lower voltage (e.g., 48V DC), ensure the current doesn't exceed the cable's ampacity.
Benefits of Using Correctly Sized Solar Wire
Improved Efficiency:
Minimizing resistance and voltage drop ensures more power reaches the load or battery storage.
Enhanced Safety:
Proper sizing prevents overheating, reducing fire risks and prolonging cable life.
Regulatory Compliance:
Meeting standards like H1Z2Z2-K ensures adherence to local electrical codes and regulations.
Common Mistakes in Solar Cable Selection
Undersized Cables:
Using a cable with insufficient capacity can lead to overheating and reduced efficiency.
Ignoring Voltage Drop:
Over long distances, small cables can result in significant energy loss.
Using Non-Solar Cables:
Regular electrical cables lack the durability and safety features required for PV systems.
