With the global expansion of renewable energy, photovoltaic (PV) power systems have become a critical component of sustainable energy infrastructure. In PV systems, the safety, durability, and long-term reliability of cables are essential for ensuring efficient and stable operation.
UL 4703 PV cables have emerged as a preferred choice for DC wiring in PV systems due to their excellent weather resistance, heat tolerance, and electrical performance.
However, to guarantee long-term safety and efficiency, PV cables must undergo comprehensive Photovoltaic Compatibility Testing, ensuring they perform reliably under various environmental conditions. This article provides an in-depth technical analysis of UL 4703 PV cables and compares them with the widely used RHW-2 cables, highlighting their performance advantages in PV applications.
Overview of UL 4703 PV Cables

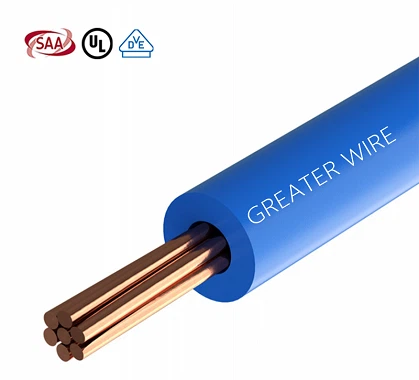

UL 4703 is a type of cable specifically designed for DC wiring in PV systems, compliant with UL standards. Its key features include:
- High Thermal Resistance: The conductor can withstand 90°C continuous operation and 120°C for short-term conditions.
- Weather and UV Resistance: The outer jacket has undergone UV testing to maintain insulation stability under prolonged sunlight exposure.
- Excellent Electrical Performance: Low-resistance conductors reduce DC power loss, improving overall system efficiency.

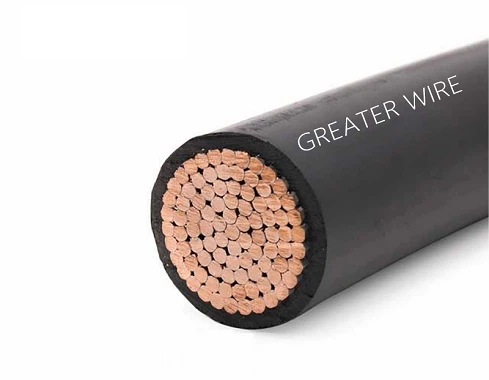

- Flexible Design: Multi-stranded copper conductors enhance bending performance, facilitating flexible PV panel connections.
- UL Certification: Meets UL 4703 standards, ensuring safe use in North American and other UL-standard-compliant markets.
UL 4703 PV cables are widely used for connections between PV modules, combiner boxes, and inverters. Their high heat resistance and weather tolerance ensure long-term reliability in harsh outdoor environments.
Importance of Photovoltaic Compatibility Testing
- Photovoltaic Compatibility Testing assesses a cable's performance under the operating conditions of PV DC circuits. Key testing procedures include:
- Thermal Cycling Tests: Simulate temperature fluctuations due to day-night cycles to evaluate insulation and jacket integrity.
- UV Aging Tests: Assess long-term insulation performance under sunlight exposure.
- Damp-Heat Cycling Tests: Evaluate insulation and jacket durability in high temperature and high humidity conditions.
- Electrical Load Tests: Ensure conductor and insulation stability under rated current over time.
- Mechanical Performance Tests: Assess cable behavior under bending, tension, and compression stresses.
These tests ensure UL 4703 cables operate safely and efficiently in PV systems, preventing failures caused by cable aging or damage.
Comparison Between UL 4703 and RHW-2 Cables
To better understand UL 4703's advantages, we compare it with RHW-2 cables, focusing on material properties, electrical performance, and PV compatibility:
| Comparison Item | UL 4703 | RHW-2 |
|---|---|---|
| Standard Certification | UL 4703 (PV-specific) | UL 44, UL 83 (general building/industrial) |
| Application Environment | DC PV systems, outdoor long-term exposure | Indoor/outdoor, limited UV exposure performance |
| Thermal Resistance | Continuous 90°C, short-term 120°C | Continuous 90°C, short-term 105°C |
| UV Resistance | Excellent, designed for outdoor PV | Moderate, not specifically for PV UV conditions |
| Conductor Structure | Multi-stranded copper, high flexibility | Solid or stranded copper, flexibility slightly lower |
| Insulation Material | Special polyolefin or ETFE, weather and corrosion-resistant | THHN/THWN, may age under prolonged sunlight |
| PV Compatibility Testing | Fully tested: thermal, damp-heat, UV | Suitable for general wiring, requires additional PV testing for long-term DC exposure |
Technical Analysis: UL 4703 demonstrates superior performance in DC PV wiring, with excellent UV resistance, heat tolerance, and flexibility. RHW-2 is reliable for general building wiring, but long-term outdoor DC use may face UV aging and flexibility challenges.
UL 4703 PV Cable Compatibility Testing Methods
In PV projects, UL 4703 PV cables undergo comprehensive compatibility testing, including:
Thermal Cycling Test
Simulates day-night temperature changes, typically from -40°C to +90°C. UL 4703 cables maintain insulation integrity without cracking or delamination after multiple cycles.
UV Aging Test
Exposed to high-intensity UV lamps to simulate sunlight. UL 4703 jackets maintain excellent insulation properties after over 1,000 hours of UV exposure.
Damp-Heat Cycling Test
Cables are subjected to high humidity (95% RH) and high temperature (85°C) cycles. UL 4703 demonstrates minimal performance changes, suitable for coastal or tropical PV projects.
Electrical Load Test
Tested under rated DC current to monitor resistance changes and temperature rise. High-purity, multi-stranded copper conductors minimize resistance and temperature increase, reducing energy loss.
Mechanical Performance Test
Bending, tension, and compression tests confirm the insulation integrity of UL 4703, ensuring reliability in complex PV panel layouts.
These tests ensure UL 4703 cables provide long-term safety and efficiency in PV systems.
Advantages of UL 4703 PV Cables
UL 4703 PV cables exhibit multiple advantages in practical PV applications:
Comprehensive Product Range
Our company specializes in UL-certified cables, including THHN, THW, MC Cable, AC Cable, and more. UL 4703 cables meet various PV system requirements.
Fully Compliant with North American Standards
UL 4703 cables strictly follow UL standards, ensuring reliable use in North American and other UL-compliant markets.
Complete Range of Specifications
We provide UL 4703 cables from 10 AWG to 2/0 AWG, covering a wide range of PV system power requirements.
Strong Supply Capability
Our stable production capacity enables rapid response, supporting small custom orders and large-scale project shipments.
Expert Technical Support and Service
Our technical team offers end-to-end support, from cable selection to installation, ensuring smooth project execution.
Extensive International Cooperation
With years of collaboration with global PV companies, we have rich experience in exporting UL-certified cables worldwide.

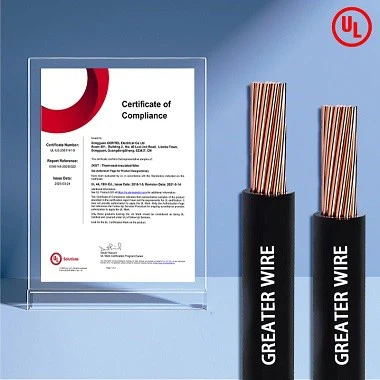

UL Certification Guaranteed
All UL 4703 cables are UL-certified, ensuring safety, compliance, and peace of mind for customers.
Flexible Customization Options
We provide customization in materials, specifications, lengths, colors, performance, labeling, and packaging, meeting diverse project requirements.
Practical Application Examples
Case 1: Ground-Mounted PV Power Plant
DC cables in large ground-mounted PV plants face prolonged sun exposure and high temperatures. Using UL 4703, cables operated for over a year without insulation degradation or hot spots, while installation was flexible and convenient.
Case 2: Rooftop PV System
Limited space requires flexible cabling. UL 4703's multi-stranded conductor allows easy routing and low resistance, ensuring high system efficiency.
Case 3: Coastal PV Project
RHW-2 cables perform well in general environments, but long-term UV and salt spray exposure can degrade performance. UL 4703 maintains durability in damp-heat and UV tests, ensuring reliable operation.
Technical Highlights
UL 4703 PV cables provide notable advantages in DC PV wiring:
- Long-term heat resistance with short-term overload capacity
- Excellent weather and UV resistance
- Low-resistance conductors reduce energy loss
- Multi-stranded design enables flexible installation
- Fully tested for PV compatibility, ensuring long-term safety
These features make UL 4703 a reliable choice for PV projects, outperforming RHW-2 in long-term outdoor DC applications.
