When it comes to electrical wiring solutions, safety, durability, and efficiency are always top priorities. One term that frequently comes up in the electrical industry is AC90 cable. But what exactly does it stand for, and why is it so widely used across residential, commercial, and industrial projects? In this article, we'll explore the definition, structure, specifications, applications, and advantages of AC90 cable-helping you understand why it might be the right choice for your next project.
What is AC90 Cable?
The term AC90 cable stands for Armored Cable, 90°C.
- AC = Armored Cable, referring to the protective aluminum interlocked armor that shields the conductors.
- 90 = The cable's maximum operating temperature rating of 90°C, ensuring safe performance under demanding electrical conditions.
This type of cable is highly recognized under the Canadian Electrical Code (CEC) and is designed for a wide range of indoor electrical installations.

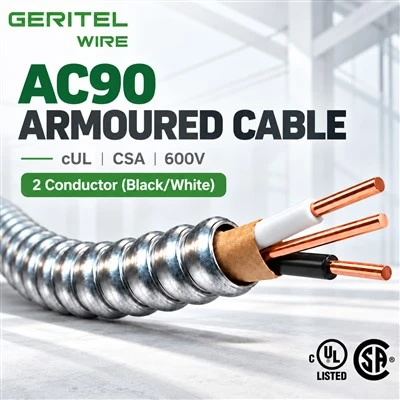

Structure of AC90 Cable
AC90 cable is engineered with multiple layers to ensure both performance and protection:
- Conductors: Copper or aluminum conductors for efficient electrical transmission.
- Insulation: Cross-linked polyethylene (XLPE) insulation, rated at 90°C.
- Ground Wire: Bare bonding conductor included for grounding safety.
- Armor Layer: Interlocked aluminum armor, eliminating the need for additional conduit in most applications.
Technical Specifications of AC90 Cable
Key specifications include:
- Voltage Rating: 600V
- Temperature Rating: -40°C to +90°C
- Flame Rating: FT4/FT6 fire resistance
- Standards: CSA approved, compliant with CEC
- Sizes Available: Wide range of AWG sizes for different load capacities
Applications of AC90 Cable
AC90 cable is versatile and widely used in multiple environments:
- Commercial Buildings: Offices, retail centers, and schools
- Industrial Plants: Machinery wiring and equipment power supply
- Residential Projects: Internal wall and ceiling wiring
- Indoor Fixed Installations: Safe and efficient without the need for extra conduit
Advantages of AC90 Cable
Choosing AC90 cable provides significant benefits:
- Cost-Effective: No need for conduit reduces material and labor costs.
- Durable Protection: Interlocked aluminum armor resists mechanical damage.
- Quick Installation: Saves time during wiring projects.
- Safe & Reliable: Superior fire resistance and compliance with safety codes.
- Versatility: Suitable for a wide range of building types and installations.
AC90 Cable vs. Other Cable Types
| Cable Type | Key Features | Typical Application | Waterproof Capability | Code Compliance |
|---|---|---|---|---|
| AC90 | Armored, 90°C XLPE insulation, cost-efficient | Indoor commercial, residential, industrial wiring | ❌ Not waterproof | CSA/CEC |
| ACWU90 | Armored, 90°C, XLPE insulation, sunlight & moisture resistant | Indoor & outdoor, direct burial, wet locations | ✅ Waterproof | CSA/CEC |
| MC Cable | Armored cable, often used in the US market | Commercial buildings, conduit replacement | Limited | NEC/UL |
| TECK90 | Armored, resistant to moisture, oil, chemicals | Harsh industrial and outdoor environments | ✅ Waterproof & chemical resistant | CSA/CEC |
This comparison shows that while AC90 is ideal for indoor, dry environments, alternatives like ACWU90 or TECK90 are more suitable for wet or chemically exposed environments.
Why Choose Us
In summary, AC90 cable stands for Armored Cable, 90°C, designed to provide cost-effective, safe, and durable wiring solutions for residential, commercial, and industrial installations. With its robust construction and compliance with safety standards, it is one of the most trusted cable types in the electrical industry.
At Dongguan Greater Wire & Cable Co., Ltd., we specialize in high-quality AC90 cables and a wide range of armored cable solutions. Whether you are handling a small residential project or a large-scale industrial installation, we can provide:
- Reliable Product Quality (CSA/CEC approved cables)
- Competitive Pricing to optimize your budget
- Full Technical Support from our professional pre-sales and after-sales team
- Flexible Supply Options for both small and bulk orders
