1. UF-B Wire Meaning
UF-B stands for Underground Feeder-B, a type of electrical cable designed for direct burial or installation in wet environments. Compared to standard NM-B indoor wiring, UF-B cables offer:
Water Resistance: The durable PVC jacket prevents moisture penetration, making it ideal for underground or damp locations.
Corrosion and Abrasion Resistance: The outer layer protects against soil corrosion and minor mechanical damage.
Multiple Conductor Options: Available in 2-conductor or 3-conductor configurations for different power requirements.
Direct Burial Capability: Can be safely installed underground without additional conduit.
UF-B cables are widely used for residential, commercial, and outdoor power applications, including lighting, outlets, pumps, and high-power equipment.
2. UF-B Wire Sizes and Applications

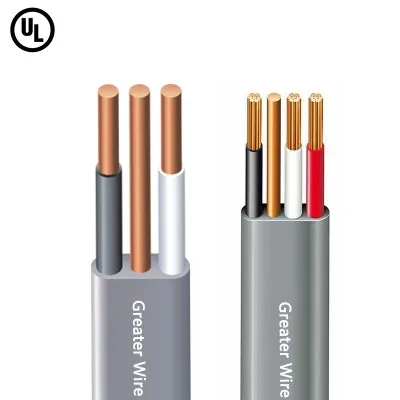

2.1 UF B wire 12/2
Specification: 12/2 indicates 12-gauge wire with 2 conductors (1 hot, 1 neutral, plus ground).
Typical Use: Residential lighting, outlets, and low-power outdoor devices.
Advantages: Affordable, easy to install, suitable for standard household needs.
2.2 UF Cable 10/2
Specification: 10/2 indicates 10-gauge wire with 2 conductors, capable of handling higher current.
Typical Use: Air conditioners, water heaters, outdoor power tools, and landscape lighting.
Advantages: High current capacity, ideal for long runs with reduced voltage drop.
2.3 UF Cable 10/3
Specification: 10/3 indicates 10-gauge wire with 3 conductors (2 hot, 1 neutral, plus ground), suitable for split-phase or high-power equipment.
Typical Use: EV charging stations, outdoor kitchens, and large pump systems.
Advantages: Provides split-phase power and supports heavy loads with flexible installation options.
| Specification | Conductors | Typical Use | Max Amperage | Suitable Application |
|---|---|---|---|---|
| 12/2 | 2 | Home lighting, outlets | 20A | Indoor/outdoor low-power |
| 10/2 | 2 | High-power appliances | 30A | Outdoor/underground |
| 10/3 | 3 | Split-phase equipment | 30A | EV charging, outdoor kitchens |
Choosing the correct UF-B wire specification ensures electrical safety and long-term reliability.
3. Installation and Safety Tips
Proper installation is critical for safety and durability:
Direct Burial: UF-B cables can be buried directly in the ground, with a recommended depth of at least 18 inches (45 cm).
Water and Corrosion Protection: Avoid contact with sharp objects and corrosive soil to prolong cable life.
Electrical Compliance: Confirm the wire gauge matches the load to prevent overloading.
Select the Right Specification:
Low-power devices: uf b wire 12/2
High-power devices: uf cable 10/2
Split-phase or high-load devices: uf cable 10/3
All connections should use waterproof junction boxes and proper grounding to prevent electrical hazards.
4. UF-B vs Other Wiring Types
NM-B Cable: Designed only for dry indoor environments; cannot be buried.
UF-B Cable: Suitable for outdoor and underground use; waterproof and corrosion-resistant.
Comparison:
UF-B: Durable, direct burial capability, higher cost.
NM-B: Affordable, easy to install, indoor use only.
UF-B wiring is the optimal choice for outdoor and underground installations requiring long-term reliability and safety.
