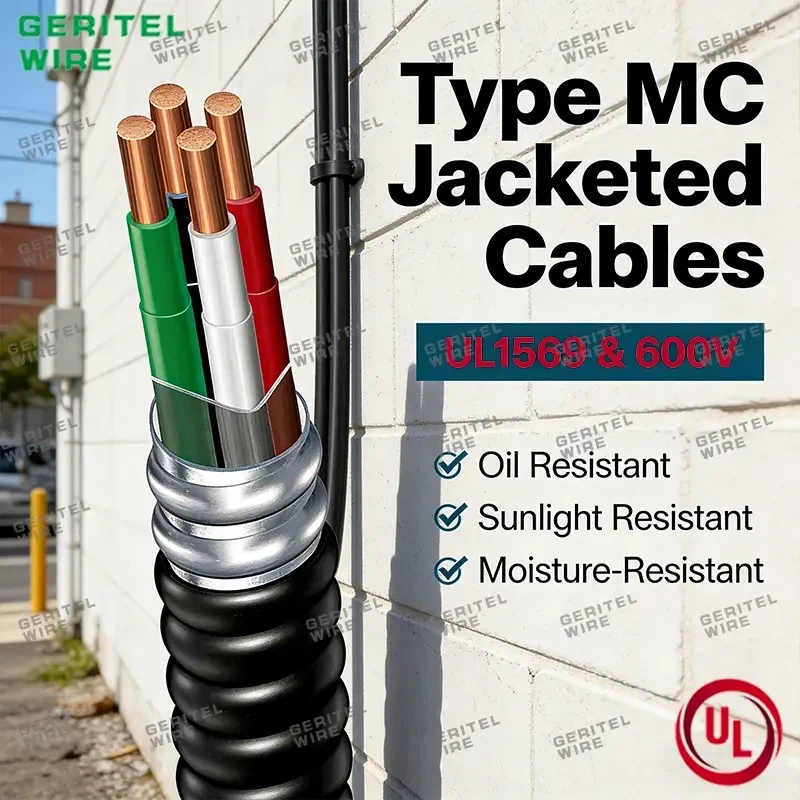

Selecting the right PVC jacketed MC cable comes down to three independent decisions: AWG size, conductor count, and ground type. This article covers each with typical values and application examples for commercial buildings, outdoor installations, and wastewater treatment facilities.
1. AWG Size – Determines Ampacity
Copper conductors, 90°C insulation (XHHW‑2 or THHN/THWN‑2). All ampacity values are typical estimates. For official UL 1569 ratings (Certificate No. E544860), refer to the product datasheet.
| AWG | Typical Ampacity | Common Applications |
|---|---|---|
| 12 AWG | ~30A | Lighting, receptacle branch circuits |
| 10 AWG | ~30–40A | Water heaters, small AC units, motors |
| 8 AWG | ~55–65A | Small feeders, subpanels, pumps |
| 6 AWG | ~75–85A | Main feeders, EV chargers, industrial equipment |
Stocking suggestion: 12 AWG and 10 AWG move in highest volume. 8 AWG and 6 AWG are typical for feeder runs.
2. Conductor Count – 2/C, 3/C, or 4/C?
| Conductors | Typical Configuration | Example Long‑Tail Keyword (exact match) |
|---|---|---|
| 2/C | Hot + Neutral (120V single‑phase) | 10/2 THHN/THWN-2 PVC jacketed MC cable |
| 3/C | Two hots + Neutral (120/240V) or Hot + Neutral + Ground | 10/3 aluminum armor MC cable PVC jacket |
| 4/C | Three phases + Neutral, or three conductors + insulated ground | 12/4 MC cable with PVC jacket and ground |
To determine conductor count: Ask whether the circuit is single‑phase or three‑phase, and whether a neutral is required.
3. Ground Type – Bare vs Insulated
| Ground Type | Characteristics | Preferred Applications |
|---|---|---|
| Bare copper | Lower cost, standard for general use | Industrial, commercial, dry indoor |
| Insulated green/yellow | Prevents galvanic corrosion, reduces stray current, required by some codes | Hospitals, data centers, wastewater treatment, outdoor wet locations |
Both options available: Our 4/C cables can be supplied with full‑size insulated green ground or bare copper ground. Insulated ground is recommended for corrosive or sensitive environments.
4.Customer Pain Points Addressed

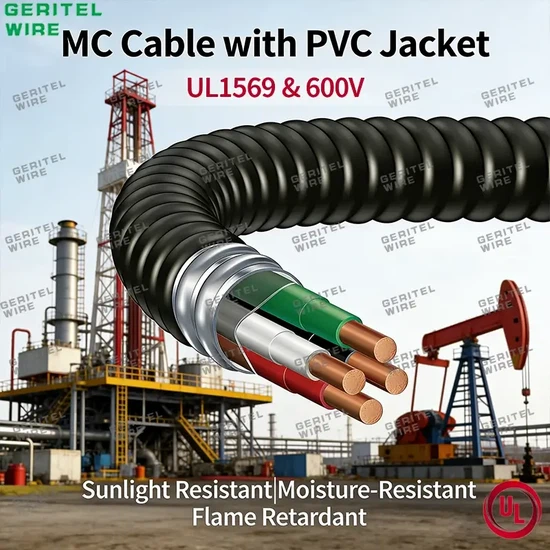

UV resistance – PVC jacket is UV‑stabilized for outdoor exposure.
Chemical resistance – Withstands common wastewater chemicals (H₂S, chlorine). Pair with XHHW‑2 insulation for severe cases.
Long‑term moisture – Hydrolysis‑resistant PVC + XHHW‑2 (90°C wet) suitable for damp trays or underground (direct burial rating must be verified separately).
5.Selection Examples by Scenario
| Scenario | Load | Recommended Cable |
|---|---|---|
| Office lighting, dry indoor | 15A | 12/2 standard MC cable, bare ground |
| Wastewater pump, outdoor, wet | 40A | 8/3 XHHW‑2 PVC jacketed MC cable with insulated ground |
| Data center PDU, noise‑sensitive | 30A | 10/4 MC cable with PVC jacket and insulated green ground |
| Industrial motor, dry factory | 25A | 10/2 aluminum armor MC cable PVC jacket, bare ground |
FAQ
Q1: Which AWG is most commonly stocked?
12 AWG and 10 AWG.
Q2: When is insulated ground required?
For healthcare facilities, data centers, wastewater plants, or any specification that calls for an "insulated equipment grounding conductor."
Q3: Can bare ground be substituted for insulated ground?
No, where code or spec requires insulated ground. Stock both.
Q4: Is this cable rated for direct burial?
Not unless explicitly stated on the datasheet. Verify before quoting underground installations.
Need a quote?

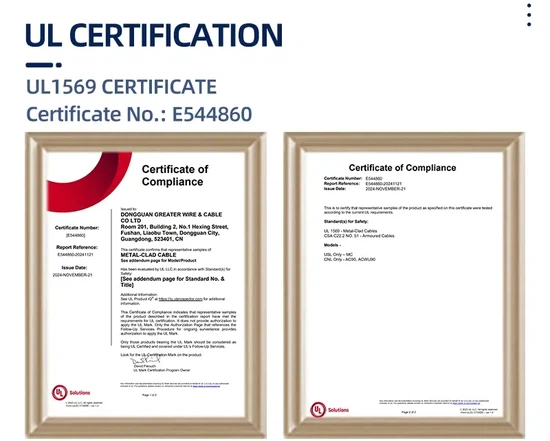

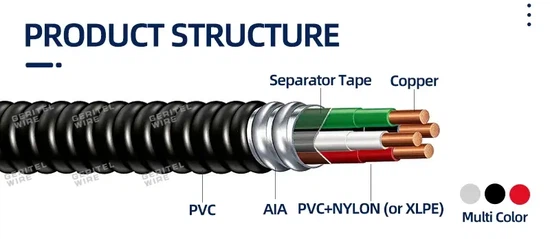

We supply UL 1569 certified PVC jacketed MC cable (Certificate No. E544860) – bare or insulated ground, XHHW‑2 or THHN/THWN‑2 insulation, aluminum or steel armor. Send load, distance, and environment for a project‑specific quote.
