In the Australian electrical market, flexible power cables play an essential role in both residential and commercial environments. One of the widely recognized products is the Clear Figure 8 Power Flex 0.6/1 kV cable, known for its unique twin-core "figure-8" design, high flexibility, transparent outer sheath, and durable insulation system.
Unlike ordinary light-duty cords, this cable is engineered with Nitrile Modified PVC (NBR) insulation and a V-90HT PVC clear sheath, making it suitable for 90°C continuous operation, UV resistance, and higher mechanical reliability. It is specifically tailored to meet the safety and environmental demands of the Australian market, where both heat and outdoor UV exposure can be critical factors.

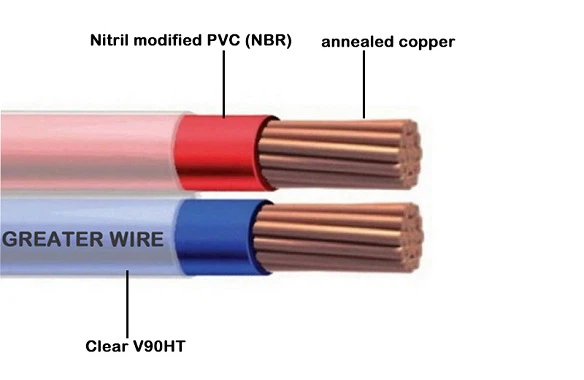

Clear Figure 8 Power Flex 0.6/1 kV Cable Structure
The Clear Figure 8 Power Flex cable has a twin-core parallel structure that gives it its figure-8 profile. The structure includes the following layers:
Conductor
Material: Annealed stranded copper
Flexible, multi-stranded design for easy handling.
Cross-sectional areas: 0.5 mm² to 2.5 mm², depending on current requirements.
Complies with AS/NZS 1125 standards.
Insulation
Material: Nitrile Modified PVC (NBR)
Continuous operating temperature: 90°C
Provides oil resistance, improved dielectric strength, and flexibility.
Outer Sheath
Material: V-90HT PVC (Clear)
Transparent, allowing visibility of the insulated cores.
Heat rating: 90°C
UV-resistant, flame-retardant, and flexible.
Extruded in figure-8 profile for easy conductor separation.
Figure-8 Profile
The parallel bonded construction gives the cable its distinctive "8" shape.
Easy to split when preparing terminations.
FPLN PVC V90HT Twin Power Flex Materials and Their Advantages
Nitrile Modified PVC (NBR) Insulation
Oil and chemical resistance.
Maintains flexibility at higher temperatures.
Better mechanical resilience compared with standard PVC.
V-90HT PVC Clear Sheath
High-temperature rating: 90°C continuous use.
Transparent appearance for aesthetic installations.
UV resistant, extending service life in Australian outdoor conditions.
Flame-retardant, complying with Australian fire safety requirements.
Fig 8 Power Flex 0.6/1 kV Electrical and Mechanical Performance
Voltage Rating: 0.6/1 kV (600/1000 V)
Operating Temperature: Up to 90°C continuous, short-term overloads higher.
Current Capacity: Varies by size; e.g., 0.75 mm² ≈ 6–8 A, 1.5 mm² ≈ 12–15 A.
UV Resistance: Yes, suitable for limited outdoor use.
Flame Retardancy: Self-extinguishing sheath for added safety.
Flexibility: High, due to stranded copper and NBR insulation.
Figure 8 Power Flex cable Typical Applications in Australia
The Clear Figure 8 Power Flex 0.6/1 kV cable is highly versatile. Common applications include:
Domestic Use
TVs, stereos, gaming consoles, DVD players.
Floor lamps, table lamps, pendant lights.
Portable extension leads for small appliances.
Commercial Use
Retail display and showroom lighting.
Audio-visual equipment in offices and conference rooms.
Exhibition and event setups requiring discreet, flexible cabling.
Outdoor/Semi-Outdoor Use
Decorative lighting (festivals, gardens, functions).
Temporary outdoor electrical supply (protected conditions).
Battery or small-scale solar systems.
Clear Figure 8 Power cable & Standard Figure 8 PVC Cable Comparison Table
To better understand the advantages of the Clear Figure 8 Power Flex 0.6/1 kV cable, the table below compares it with a standard Figure 8 PVC Power Flex cable:
| Feature / Property | Clear Figure 8 Power Flex 0.6/1 kV | Standard Figure 8 PVC Cable |
|---|---|---|
| Conductor | Stranded copper, AS/NZS compliant | Stranded copper |
| Insulation | Nitrile Modified PVC (NBR), 90°C | Standard PVC, 75°C |
| Sheath | V-90HT PVC, Clear, UV resistant | Standard PVC, usually opaque |
| Temperature Rating | 90°C continuous | 75°C continuous |
| Voltage Rating | 0.6/1 kV (600/1000 V) | 300/500 V typical |
| UV Resistance | Yes, UV-stabilized | Generally no |
| Flame Retardancy | Yes, self-extinguishing | Limited |
| Appearance | Transparent (aesthetic, visible cores) | Opaque (white/black) |
| Applications | Appliances, lighting, AV, outdoor decorative use | Indoor appliances, light-duty cords |
| Durability | Higher mechanical, chemical, and UV resistance | Moderate, mainly indoor use |
Clear Figure 8 Twin (Red/Blue) DC Cable Advantages in the Australian Market
Meets AS/NZS flexible cord standards.
UV resistance makes it suitable for Australia's sunny climate.
90°C rating ensures higher thermal performance than standard PVC cords.
Transparent sheath improves aesthetics in visible installations.
Balances safety, durability, and flexibility in one design.
Clear Figure 8 Power Cable Limitations
Not designed for heavy-duty industrial equipment.
Long-term outdoor exposure still requires protection for maximum lifespan.
Provides light to medium-duty performance; for high-power loads, larger XLPE or rubber cables are more appropriate.
The Clear Figure 8 Power Flex 0.6/1 kV cable is a specialized flexible twin-core cable engineered for the Australian market. With Nitrile Modified PVC (NBR) insulation and a V-90HT clear PVC sheath, it combines heat resistance (90°C), UV stability, flame retardancy, and superior flexibility.
Its applications range from household appliances and lighting to commercial audio-visual systems and decorative outdoor setups. Compared with standard figure-8 PVC cables, it offers better thermal endurance, safety, and environmental resistance, making it a reliable choice for both residential and commercial environments in Australia.
