Medium voltage VFD cable is a specially designed cable specifically used in medium voltage variable frequency systems to meet the connection requirements between variable frequency power supplies and variable frequency motors. The design of this cable aims to improve electromagnetic compatibility, suppress interference, and shield odd harmonics in low efficiency high-order harmonics, thereby enhancing the anti-interference performance of the cable and effectively preventing the generation of high-frequency shaft currents.
The medium voltage VFD cable can withstand variable frequency voltages ranging from 6KV to 10KV, with excellent resistance to voltage surges. It can withstand pulse voltages during high-speed and frequent frequency conversion, providing good protection for variable frequency electrical appliances. In addition, it also has good shielding properties, which can effectively eliminate electromagnetic interference, reduce the noise of variable frequency motors, and ensure the stable operation of the system.

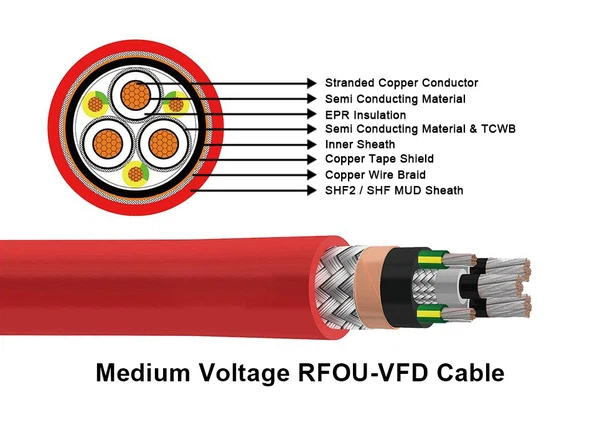

The structure of a medium voltage VFD cable includes the main conductor, conductor shielding layer, insulation layer, insulation shielding layer, semiconducting nylon tape, inner braided shielding layer, secondary conductor, filler, winding layer, outer braided shielding layer, and outer sheath. This type of cable is widely used in industries such as metallurgy, power, and petrochemicals, ensuring stable system operation and improving production efficiency.
Application of Medium Voltage VFD Cable
1. Power industry: Medium voltage VFD cables can be used to connect various power equipment, such as transformers, motors, etc., effectively improving equipment stability and energy utilization efficiency.
2. In the field of industrial automation: Medium voltage VFD cables can be used to connect various industrial automation equipment, such as machine tools, packaging machinery, etc., to improve the production efficiency and quality of the equipment.
3. In the field of transportation: Medium voltage VFD cables can be used to connect urban rail transit equipment such as subways, light rails, and high-speed trains, improving the speed and safety of equipment operation.
4. In the field of petrochemicals: Medium voltage VFD cables can be used to connect various petrochemical equipment, such as pumps, valves, etc., to improve the stability and safety of the equipment.
5. In the field of ports and ships: Medium voltage VFD cables can be used to connect port and ship equipment, such as cranes, unloading equipment, etc., to improve the reliability and safety of the equipment.
