Electrical cables play a vital role in safely transmitting power across residential, commercial, and industrial settings. Among the various products available in the market, Royal Cord Cable is a trusted name, known for its robust design, durability, and compliance with international standards.
Understanding Voltage Ratings
Definition and Importance
The voltage rating of an electrical cable indicates the maximum voltage it can safely handle under normal operating conditions. This rating is determined by several factors, including the insulation material, conductor type, and cable construction. A proper voltage rating is crucial for the following reasons:
Safety: Ensures that the cable's insulation will not break down under electrical stress, thereby reducing risks like short circuits, electric shocks, or fires.
Performance: Maintains efficient power transmission with minimal energy loss.
Compliance: Meets regional and international electrical standards, ensuring installations are safe and legal.
Longevity: Operating within the specified voltage rating prolongs the cable's service life and overall reliability.
Overview of Royal Cord Cable
Royal Cord Cable is renowned for offering high-quality cables designed to meet the demanding requirements of modern electrical installations. These cables are built to provide both safety and efficiency, making them a popular choice across various sectors. The product range includes options suitable for different applications, from industrial machinery to household appliances.
Key Features
High-Quality Insulation: Uses premium materials like PVC, which provide excellent resistance to thermal, mechanical, and environmental stresses.
Variety of Configurations: Available in multiple sizes and designs, including H05VV-F 3x6mm, H05VV-F 2x1mm, and royal cord 12awg, ensuring that there is an appropriate cable for every application.
International Compliance: Adheres to standards set by bodies such as IEC and UL, which ensure that each cable meets stringent safety and performance criteria.
Flexibility and Durability: Designed to maintain performance even in challenging environments, offering reliability over long periods.
In-Depth Look at Cable Variants

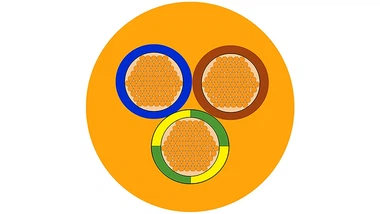

H05VV-F 3x6mm Cable
The H05VV-F 3x6mm cable is a multi-core cable featuring three conductors, each with a cross-sectional area of 6mm². It is widely used in applications where high current loads and robust performance are essential.
Voltage Rating: Typically rated for up to 300V, making it suitable for many low-voltage applications.
Applications:
Industrial equipment and machinery where higher currents are common.
Mobile equipment and temporary power installations.
Appliances that require reliable power transmission under demanding conditions.
Construction: The cable's flexible PVC insulation offers excellent resistance to oil, chemicals, and abrasion, ensuring that the cable remains durable even in harsh environments.
H05VV-F 2x1mm Cable
The H05VV-F 2x1mm cable is another member of the H05VV-F family. With two conductors, each having a cross-sectional area of 1mm², this cable is optimized for lighter power applications.
Voltage Rating: Also generally rated at up to 300V, ensuring safe performance in low-power scenarios.
Applications:
Low-power appliances and small electronic devices.
Internal wiring within devices where space is limited.
Light-duty industrial applications where high current capacity is not required.
Advantages: Its compact and flexible design makes it ideal for installations where space and weight are critical factors without compromising safety or performance.
Royal Cord 12awg Cable
Royal cord 12awg cable refers to cables that use 12 American Wire Gauge conductors. This specification is popular in both residential and commercial settings due to its balanced combination of flexibility, current-carrying capacity, and durability.
Voltage Rating: Like the H05VV-F series, cables with 12 AWG conductors are typically rated for up to 300V. The exact rating can vary slightly depending on the specific design and insulation used.
Applications:
Household extension cords and power strips.
Light industrial equipment and temporary power installations.
General-purpose use in both residential and commercial wiring.
Features: Known for their excellent conductivity, royal cord 12awg cables are robust yet flexible, making them ideal for a wide range of everyday applications.
Factors Influencing Voltage Rating
Insulation Material
The choice of insulation is a major determinant of a cable's voltage rating. Most Royal Cord Cables use high-quality PVC insulation, which offers:
Thermal Resistance: Ensures the cable performs reliably even at elevated temperatures.
Chemical Resistance: Protects the cable from degradation due to exposure to oils, solvents, or other chemicals.
Mechanical Protection: Provides robust physical protection, minimizing the risk of damage from abrasion or impact.
Conductor Size and Material
Conductor Material: Typically copper, known for its excellent conductivity and reliability.
Cross-Sectional Area: Larger conductors (like the 6mm² in H05VV-F 3x6mm) are better suited for high-current applications, while smaller ones (like the 1mm² in H05VV-F 2x1mm) are used for lower current loads.
Design Considerations: The gauge of the conductor directly affects both the current-carrying capacity and the overall voltage rating of the cable.
Construction and Design
The overall design and construction of Royal Cord Cable ensure that they can safely operate at their rated voltage. Key design elements include:
Layered Insulation: Multiple layers of insulation help protect against electrical and mechanical stresses.
Shielding: Some cables incorporate additional shielding to guard against electromagnetic interference, which is particularly important in environments with high electrical noise.
Reinforced Jackets: Provide extra protection against environmental factors such as moisture and chemical exposure.
Compliance with International Standards
Royal Cord Cables are designed to meet strict international standards, including those set by the International Electrotechnical Commission (IEC) and Underwriters Laboratories (UL).

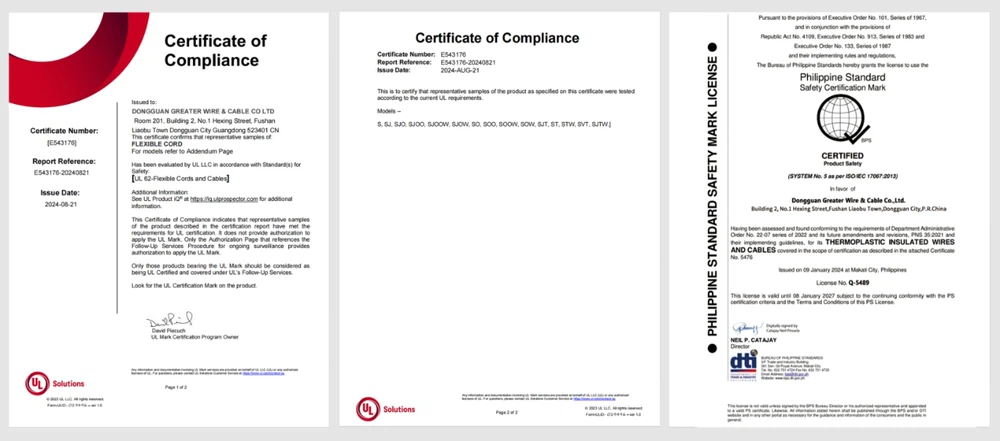

IEC and UL Standards
IEC Standards: Ensure that cables are safe, durable, and reliable for global use. Compliance with IEC standards guarantees that cables like H05VV-F 3x6mm and H05VV-F 2x1mm have passed rigorous testing for voltage endurance and insulation performance.
UL Standards: Commonly required in the United States, UL certification confirms that a cable meets or exceeds safety requirements, making it suitable for both residential and commercial applications.
Testing and Certification
Before reaching the market, Royal Cord Cables undergo extensive testing, including:
Dielectric Withstanding Tests: These tests confirm that the cable can handle voltage spikes and maintain insulation integrity.
Thermal Aging Tests: Simulate long-term usage to ensure the cable maintains performance over time.
Mechanical Durability Tests: Assess the cable's resistance to bending, twisting, and other forms of mechanical stress.
Practical Applications and Selection Guidelines
Residential and Commercial Use
Royal Cord Cable finds extensive use in both residential and commercial settings. For instance:
Household Wiring: Royal cord 12awg cables are widely used in household extension cords and power strips, providing reliable performance and safety.
Appliance Wiring: Both H05VV-F 3x6mm and H05VV-F 2x1mm cables are ideal for wiring internal components of appliances, ensuring efficient power delivery.
Temporary Installations: Due to their flexibility and durability, these cables are commonly used in temporary power setups for events, construction sites, and mobile equipment.
Industrial Applications
For industrial applications that demand high current capacity and robust performance:
High-Power Equipment: The H05VV-F 3x6mm cable is frequently employed in industrial machinery where high current loads are the norm.
Low-Power Controls: In applications requiring lower power, the H05VV-F 2x1mm cable is an excellent choice, offering both safety and efficiency.
Selection Considerations
When choosing the right cable, consider the following:
Voltage and Current Requirements: Ensure that the cable's voltage rating (typically up to 300V) and current-carrying capacity match your application.
Environmental Factors: Choose cables with suitable insulation and construction for your operating conditions.
Compliance: Verify that the selected cable complies with relevant international standards for both safety and performance.
