1. Introduction to RW75 Wire
RW75 is a type of single-conductor, thermoplastic insulated wire, typically made with PVC insulation. It is designed for use in both dry and wet environments and has good heat resistance. The "75" in its name refers to its 75°C temperature rating. RW75 is manufactured to meet Canadian Electrical Code (CEC) requirements and is widely used in low-voltage wiring systems.
2. Definition and Standards of RW75
RW75 is defined by the Canadian Standards Association (CSA) and its name represents:
R: Rubber or thermoplastic insulation
W: Suitable for wet locations
75: Maximum operating temperature of 75°C
RW75 wires are CSA-certified, typically marked with the CSA symbol, ensuring compliance with Canadian safety standards.
3. Voltage Rating of RW75 Wire
The standard voltage rating of RW75 wire is 600 volts (600V). This means it can safely operate in systems with voltages up to 600V, and is commonly used in the following environments:
Residential wiring: lighting and outlet circuits
Commercial buildings: general power distribution
Light industrial applications: control circuits and small equipment
Notes:
The 600V rating applies whether installed in dry, damp, or underground locations, provided proper installation practices are followed.

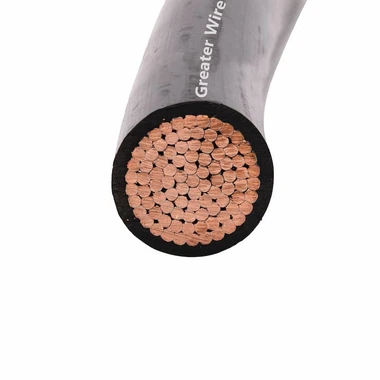

Other similar wires, such as RW90, also have a 600V rating but offer higher temperature tolerance (90°C).
4. Factors Affecting Voltage Performance
Although RW75 is rated for 600V, its performance can be influenced by several factors:
Ambient Temperature: Higher temperatures can reduce insulation lifespan. In such cases, a higher-rated wire like RW90 may be preferable.
Voltage Drop Over Distance: Long cable runs may cause voltage drops. Use thicker wire gauges or redesign the circuit layout accordingly.
Mechanical Protection: In physically exposed installations, additional protection such as conduit or armor is recommended.
5. Typical Applications of RW75 Wire
Due to its versatile properties, RW75 is widely used in:
Home wiring: outlets, lighting, and sub-panels
Underground installations: with proper protection like conduit
Temporary job-site power: powering tools and machinery
Control panels and electrical enclosures
6. How to Select the Right RW75 Wire
To ensure safety and optimal performance, consider the following when selecting RW75 wire:
Load Current: Choose the correct gauge (AWG) based on the electrical load.
Installation Environment: Ensure the insulation and protection meet the temperature and humidity conditions.
Compliance with Codes: Follow local electrical regulations such as CEC or NEC for legal and safe installation.
Always choose CSA or UL-certified wire from reputable manufacturers.
