When you receive a battery cable quotation, you often see "Conductor: IEC 60228 Class 5" listed in the specification. Most buyers skim past it. But this single line tells you more about the cable's performance than you might think.
Understanding what IEC 60228 Class 5 actually means can help you avoid costly mistakes-buying cables that are too stiff for your installation, failing prematurely due to vibration, or simply paying for features you do not need.
This article explains the IEC 60228 conductor standard, what Class 5 means in practice, and how to use this information when purchasing battery cables.
1. What Is IEC 60228 and What Does It Regulate?
IEC 60228 is the international standard that defines conductor construction requirements for power cables. It covers:
- Nominal cross-sectional areas (from 0.5 mm² to 3,500 mm²)
- Maximum resistance values for copper and aluminum conductors
- Stranding configurations for different conductor classes
The standard applies to copper, aluminum, and aluminum alloy conductors in electric power cables and cords.
For battery cable buyers, the most relevant part of IEC 60228 is its conductor classification system, which defines how conductors are constructed based on their intended use.
Importantly, IEC 60228 does not specify insulation type, voltage rating, or temperature rating-those are covered by other standards. What it does specify is the conductor itself: how it is made, how flexible it is, and what its electrical resistance should be.
Think of IEC 60228 as the "conductor rulebook." It tells you what you are getting before the insulation is even applied.
2. The Four Conductor Classes: Where Class 5 Fits
IEC 60228 defines four main conductor classes:
| Class | Construction | Flexibility | Typical Use |
|---|---|---|---|
| Class 1 | Solid (single wire) | Stiffest | Fixed installations, building wiring |
| Class 2 | Stranded (few thick strands) | Moderate | General fixed wiring, conduit installations |
| Class 5 | Stranded (many thin strands) | High | Flexible applications, battery cables, equipment leads |
| Class 6 | Stranded (very many very thin strands) | Very high | Extra-flexible applications, welding cables, robotics |
The key difference between Class 2 and Class 5 is the number of strands and strand diameter. Class 2 uses fewer, thicker strands. Class 5 uses more, thinner strands.
For example, a 35mm² Class 5 conductor might use 276 strands of 0.40mm wire. The same size Class 2 conductor might use only 7 strands of 2.52mm wire. More strands = more flexibility.
Why does this matter? Because conductor construction directly affects:
- How easily the cable bends
- How well it handles vibration
- How it performs in tight installation spaces
3. Why Battery Cables Require Class 5 Conductors
Battery cables are not like building wires. They are not installed once and left alone. Battery cables are:
- Routed through tight, confined spaces
- Subject to constant vibration (in vehicles and mobile equipment)
- Frequently flexed (during battery replacement and maintenance)
- Connected and disconnected repeatedly
These conditions require a conductor that can bend without breaking, flex without work hardening, and maintain connection integrity over years of use.
Class 2 conductors are too stiff for most battery applications. They resist bending, making installation difficult. They are more prone to fatigue failure from vibration. They do not conform well to lug connections, potentially creating high-resistance joints.
Class 5 conductors solve these problems. The many thin strands distribute mechanical stress, resist fatigue, and conform to terminations for reliable, low-resistance connections.
For battery cable buyers, the presence of "Class 5" on a specification tells you the cable is designed for exactly these conditions. It is not just a random number-it is a deliberate design choice for demanding DC power applications.
4. What Class 5 Tells You About Cable Performance
Understanding Class 5 helps you predict how a cable will perform before you install it. Here is what the classification tells you:
- Flexibility. Class 5 conductors bend more easily than Class 2 or Class 1 conductors. This matters in battery cabinets, vehicle compartments, and other tight spaces. If your installation requires tight bends, Class 5 is non-negotiable.
- Vibration resistance. The fine strands of a Class 5 conductor resist fatigue failure from vibration. In vehicles, forklifts, and marine applications, this translates to longer cable life and fewer failures at terminations.
- Termination quality. Class 5 conductors compress more uniformly under crimped lugs, creating more consistent terminations with lower resistance. This is critical for high-current battery connections where a poor termination can cause heat buildup and failure.
- Current carrying capacity. Because Class 5 conductors use more strands, they have slightly more surface area than Class 2 conductors of the same nominal cross-section. This can improve current carrying capacity and heat dissipation.
- Installation cost. More flexible cables install faster. Workers can route them without excessive force, reducing installation time and labor cost.
5. Three Battery Applications Where Class 5 Is Essential
Class 5 conductors are specified in a wide range of battery applications. Here are three where the distinction matters most:
- Energy Storage Systems (ESS). Large-scale battery cabinets are packed with modules stacked in tight racks. Cable paths are constrained, and installers must route cables around module frames and busbars. Class 5 conductors bend at tight angles without forcing, enabling faster installation and reducing the risk of insulation damage. Common sizes: 50mm² to 240mm².
- Electric Vehicles. EV battery packs are mounted in limited under-floor and under-hood spaces. Cables connect cells to busbars, battery packs to inverters, and inverters to motors. These cables must withstand years of road vibration while maintaining flexibility for installation and service. Class 5 conductors resist work hardening and fatigue failure over years of daily driving. Common sizes: 35mm² to 95mm² for main power connections.
- Forklifts and Material Handling Equipment. Industrial batteries in forklifts and AGVs are swapped out regularly-often daily. The cables are repeatedly disconnected and reconnected. Class 5 conductors flex repeatedly without work hardening at the termination point-a common failure mode with stiffer conductors. Common sizes: 35mm² to 95mm².
FAQ
Q1: What is the difference between IEC 60228 Class 5 and Class 6?
Class 6 conductors have even finer stranding than Class 5, offering maximum flexibility. Class 6 is typically used for applications requiring very high flexibility, such as welding cables, robotics, and applications with continuous flexing. For most battery cable applications, Class 5 provides sufficient flexibility.
Q2: Can I use Class 2 conductor cable for battery connections?
It is not recommended. Class 2 conductors are stiffer, more difficult to route in tight spaces, and more prone to vibration fatigue and termination failure. For battery applications, use Class 5.
Q3: Does a Class 5 conductor cost more than Class 2?
Yes. Class 5 conductors require more manufacturing steps to produce the fine stranding, which adds cost. The additional cost is typically justified by improved flexibility, easier installation, and longer service life in demanding applications.
Q4: How do I verify a cable uses IEC 60228 Class 5 conductor?
Check the cable specification sheet or jacket marking. Reputable manufacturers list the conductor class on the spec sheet. If the information is not provided, ask the supplier for confirmation.
Need IEC 60228 Class 5 Copper Battery Cable for Your Project?

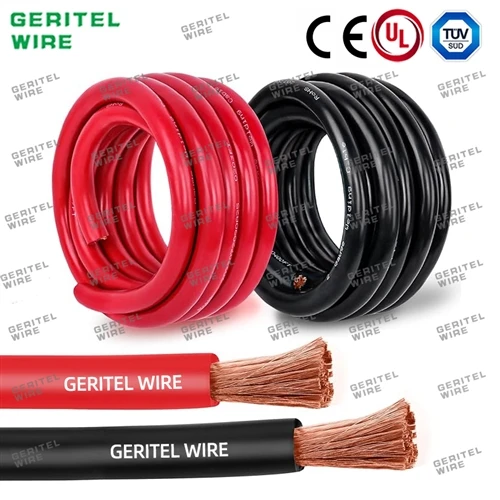

Our IEC 60228 Class 5 flexible copper PVC battery cables are available in sizes from 2.5 mm² to 400 kcmil, with red/black color coding. Whether you are building an energy storage system, an electric vehicle, or an industrial battery bank, we have the right cable for your application.
Tell us about your project-voltage, current, and installation conditions. We will recommend the right Class 5 copper PVC battery cable and provide the documentation you need.
