Choosing the appropriate type of wire is crucial for the safety, economy, and long-term operation of the power system. THHN wire and Romex wire (also known as NM cable or NM-B cable) are two common types of wires in North America, with many differences in structure, usage, specifications, and performance.
1, Differences in Basic Definition and Construction
1. THHN Wire(Thermoplastic High Heat-resistant Nylon-coated)

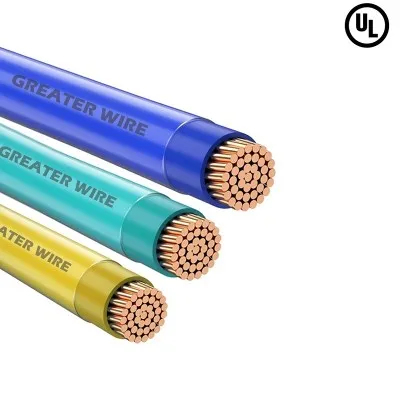

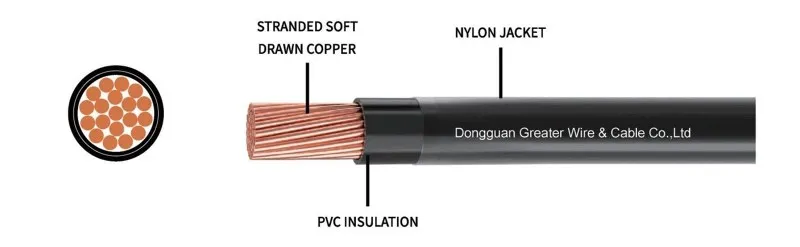

THHN is the abbreviation for Thermoplastic High Heat resistant Nylon coated in English, literally translated as "thermoplastic high heat resistant nylon sheathed wire". This type of wire is generally a single core structure, with copper or aluminum conductors, wrapped in PVC insulation and nylon sheath, and has good heat resistance and mechanical strength.
2. Romex Wire(NM Cable or NM-B wire,Non-Metallic Sheathed Cable)

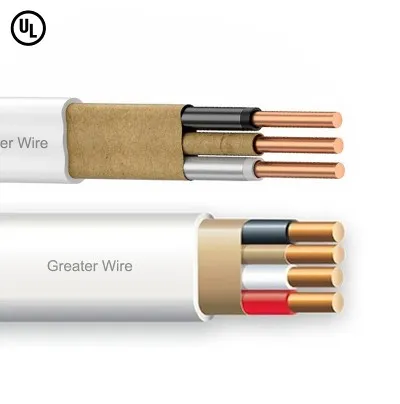

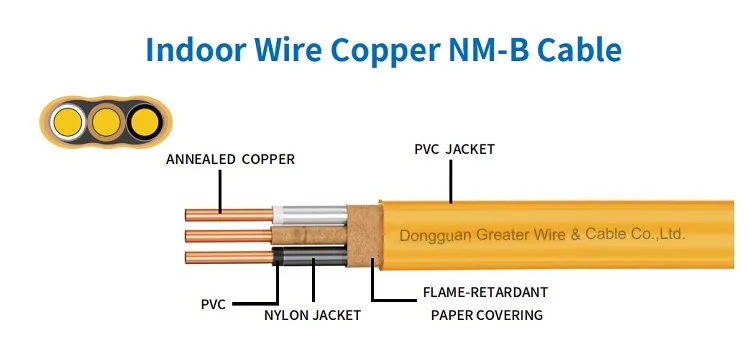

Romex is a registered trademark of Southwire Corporation in the United States, which essentially refers to NM cable (non-metallic sheathed cable). Romex is a multi-core cable that contains two or more insulated wires and a bare grounding wire, wrapped in a PVC non-metallic sheath. It is the main product for residential wiring.
2, Comparison of structural composition between THHN wire and Romex wire
| Compare item | THHN Wire | Romex Wire(NM Cable or NM-B cable) |
| Conductor material | Copper or aluminum copper | copper |
| Insulation material | PVC+Nylon Sheath | Internally insulated with PVC+nylon wire, externally covered with integral PVC sheath |
| Sheath type | No overall protective sheath (only wrapped in nylon) | The overall PVC sheath wraps all conductors |
| Number of wires | Single core | Multi core (usually 2 or 3 insulated wires+bare grounding wire) |
| structural style | Single core wire | multicore wire |
3, Comparison of applicable scenarios
THHN wire and Romex wire also have significant differences in their usage scenarios.
1. Typical applications of THHN wire:
Industrial power distribution system
Commercial building electrical wiring
EMT,PVC, Wire threading in metal tubes
Internal wiring of control cabinet
2. Typical applications of Romex wire(NM Wire or NM-B Wire):
Indoor fixed wiring of residential buildings
Use of conduit in wooden walls, ceilings, and floors (no metal conduit required)
Connection between electrical sockets and switches
4, Comparison of Electrical Performance Parameters between THHN Wire and ROMEX Wire
| Parameter item | THHN cable | Romex Wire(NM Cable or NM-B cable) |
| rated voltage | 600V | 600V |
| Heat resistance performance | Maximum 90 ° C in dry environment, 75 ° C in humid environment | 90 ° C in a dry environment, but used in a 60 ° C environment |
| Flame retardancy | good (Nylon sheath has flame retardancy) | good, PVC sheaths have a certain resistance to flames |
| Waterproof performance | Can be used in humid environments (requires tubing) | Not suitable for humid environments |
| Installation flexibility | Should be used in conjunction with metal or PVC pipes | Can be directly laid without the need for pipes |
5, Comparison of Construction and Installation
| Installation features | THHN Wire | Romex Wire(NM Cable or NM-B cable) |
| is it need to wear a tube | YES | NO |
| Installation complexity | Need to design pipelines, installation is complex | Easy to install |
| flexibility | Flexible single line, easy to introduce into electrical boxes | Overall cable structure, slightly hard but easy to manage |
| Visibility | Invisible inside the pipe, electrical diagram required | Clear and intuitive wiring for easy troubleshooting |
6, Comparison of Safety and Durability
| Safety/durability factors | THHN Cable | Romex Wire(NM wire or NM-B wire) |
| Mechanical protection capability | Relying on conduit, extremely strong | Generally, the protective sheath is limited |
| Moisture resistance/corrosion resistance | Strong, suitable for underground or humid environments (with conduit) | Weak, not recommended for use in humid or outdoor environments |
| ageing resistance | Excellent, the nylon sheath provides additional protection | Generally, long-term exposure is prone to aging |
| Fire safety | High, nylon has flame retardancy | Generally, it is necessary to prevent cable overload or short circuit |
7, Summary of the advantages and disadvantages of THHN wire and Romex wire
Advantages and disadvantages of THHN cable
advantage:
High heat resistance and corrosion resistance;
Strong security performance;
Can be used in various complex wiring environments.
Disadvantages:
Installation requires threading pipes, which increases labor costs;
Not suitable for fast wiring or easy installation scenarios.
Advantages and disadvantages of Romex Wire
advantage:
Quick and easy installation;
Low cost, especially suitable for residential projects;
Integrated multi-core wires for easy management.
Disadvantages:
Not suitable for wet, exposed, or underground environments;
The mechanical protection performance of the sheath is weak;
Only suitable for dry indoor scenes.
8, Usage suggestions
| Item | Recommended wire types | Reason |
| Residential wiring | Romex wire(NM wire or NM-B wire) | fast installation, and compliance with regulations |
| Commercial cabling | THHN cable + EMT tube | High security level, flexible structure, adaptable to complex systems |
| Damp or underground environment | THHN wire + waterproof conduit | Capable of handling humid conditions and ensuring long-term safe operation |
| Temporary electrical equipment connection | THHN cable | Easy to disassemble and reuse, adaptable to various distribution boxes |
