Conductor Size Ranges Under AS/NZS 5000.1
The standard categorizes conductors based on cross-sectional area (CSA) and material, with copper being the primary choice for most applications.
1. Copper Conductors
Domestic and Light Industrial Use:
Range: 1.5 mm² to 400 mm² (e.g., SAA XLPE wire for household circuits).
Conductor Classes:
Class 1: Solid copper (e.g., 1.5 mm² for lighting circuits).
Class 2: Stranded copper (e.g., 25 mm² for subpanels).
Class 5: Flexible stranded copper (e.g., 16 mm² for HVAC systems).
Heavy Industrial Use:
Range: 50 mm² to 630 mm² (e.g., AS/NZS 5000.1 XLPE orange power cable for mining sites).
2. Aluminum Conductors
Range: 16 mm² to 1000 mm² (e.g., Australia XLPE insulation wire for overhead power lines).
Insulation and Sheath Dimensions
1. XLPE Insulation Thickness
The standard specifies minimum insulation thickness based on conductor CSA and voltage rating (0.6/1 kV):
Example:
1.5 mm² conductor: Insulation thickness ≥ 0.7 mm.
25 mm² conductor: Insulation thickness ≥ 1.2 mm (common in SAA XLPE wire).
400 mm² conductor: Insulation thickness ≥ 2.4 mm (used in industrial XLPE orange power cable).
2. Sheath Thickness
PVC/LSZH Sheath:
Minimum thickness: 1.5 mm for cables with CSA ≤ 50 mm².
Heavy-duty applications: 2.0–3.0 mm for AS/NZS 5000.1 XLPE orange power cable exposed to UV or abrasion.
Key Cable Types and Their Size Specifications

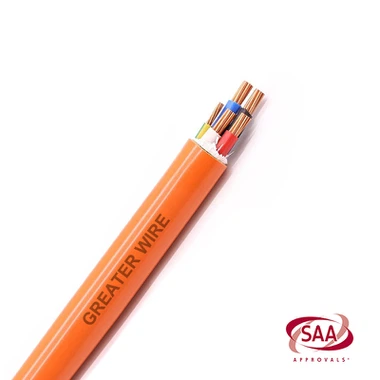

1. AS/NZS 5000.1 XLPE Orange Power Cable
Application: Outdoor installations requiring high visibility and UV resistance (e.g., construction sites).
Typical Sizes:
Single-core: 16 mm² to 400 mm².
Multicore: 4×1.5 mm² to 4×240 mm².
Construction:
Conductor: Class 2 stranded copper.
Insulation: XLPE (≥1.2 mm for 25 mm²).
Sheath: Orange PVC (≥1.5 mm thick).
2. Australia XLPE Insulation Wire
Application: Indoor power distribution (e.g., commercial buildings).
Typical Sizes:
Single-core: 1.5 mm² to 95 mm².
Multicore: 2.5 mm² to 35 mm².
Construction:
Conductor: Class 1 or Class 5 copper.
Insulation: XLPE (≥0.7 mm for 1.5 mm²).
3. SAA XLPE Wire
Application: Residential wiring (e.g., sockets and switches).
Typical Sizes:
Single-core: 1.5 mm² to 16 mm².
Flexible cords: 0.75 mm² to 6 mm².
Certification: Mandatory SAA approval, requiring compliance with AS/NZS 5000.1 dimensions.
Compliance Testing for Size and Construction
Cables must undergo rigorous testing to validate their dimensions and performance:
1. Dimensional Tolerances
Conductor diameter: ±5% of nominal CSA.
Insulation thickness: ±10% of specified minimum.
2. Electrical Performance
Voltage test: 3.5 kV AC applied for 5 minutes to confirm insulation integrity.
Insulation resistance: ≥0.1 MΩ/km after 14 days in 85°C water.
SAA Certification and Size Validation
The SAA approval process includes verification of cable dimensions to ensure compliance:
Factory audits: Inspection of conductor stranding and insulation extrusion processes.
Sample testing: Measurement of CSA and sheath thickness using calibrated tools.
