In modern construction, power, and industrial projects, the safety, durability, and reliability of cables directly impact the overall system performance. Thermosetting Steel Wire Armoured (SWA) Cable is widely recognized for its superior mechanical strength, high-temperature resistance, and anti-aging properties, making it a preferred choice for industrial power transmission.
Compared with traditional PVC SWA cables, thermosetting SWA cables offer significant advantages in insulation materials, conductor structure, and long-term reliability, allowing them to perform reliably under complex conditions and heavy loads. Their applications cover buildings, underground installations, industrial facilities, and outdoor high-temperature environments, ensuring stable power supply for critical systems.
This article delves into the material science, structural design, electrical performance, application scenarios, performance comparisons, and real-world project examples of thermosetting SWA cables, providing professional guidance for engineering design, cable selection, and installation.

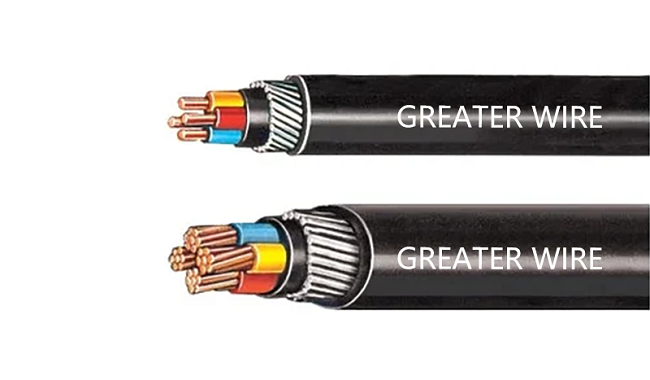

Material and Structural Analysis of Thermosetting SWA Cable
Conductor Materials
Thermosetting SWA cables typically use high-purity oxygen-free copper (OFC) or high-conductivity aluminum conductors to ensure low resistance, high conductivity, and reduced energy loss.
- Stranded Copper Conductors: Suitable for low-voltage and smaller cross-section cables, offering good flexibility for bending during installation.
- Compact Stranded Conductors: Used in larger cross-sections to ensure long-term current-carrying capacity, vibration resistance, and mechanical stability.
Conductor design optimizes current distribution and mechanical stability, ensuring reliability for long-distance and complex installations.
Thermosetting Insulation (XLPE)
The insulation layer uses cross-linked polyethylene (XLPE), which provides several technical advantages over PVC:
·High-Temperature Stability: Continuous operation up to 90–105°C; withstands short-circuit temperatures up to 250°C.
·Chemical Resistance: Resistant to acids, alkalis, and oils, suitable for industrial and underground applications.
·Low Dielectric Loss: Reduces long-term energy loss and improves system efficiency.
·Anti-Aging: Cross-linked molecular structure enhances material stability, providing a service life of over 30 years.
PVC SWA cables use PVC insulation, which is less heat-resistant, chemically resistant, and durable compared to XLPE, but more cost-effective.
Steel Wire Armour (SWA)
SWA provides robust mechanical protection and can be single or double-layer spiral-wound:
·Offers tensile, compressive, and impact resistance
·Protects against construction and mechanical damage
·Ideal for underground and industrial installations
During installation, SWA prevents cable damage and short-circuit risks, enhancing system safety.
Outer Sheath Materials
·Outer sheaths are typically PVC or LSZH (Low Smoke Zero Halogen):
·Fire-resistant, moisture-proof, UV-resistant
·Abrasion-resistant and chemically resistant
·LSZH versions produce low-smoke, non-toxic gases in confined spaces, improving personnel safety
Electrical Performance of Thermosetting SWA Cable
Rated Voltage and Temperature Rise
·Low Voltage Series: 0.6/1kV
·Medium Voltage Series: 6/10kV or higher
·XLPE insulation ensures low temperature rise for reliable long-term operation
Short-Circuit Resistance
·XLPE insulation withstands up to 250°C during short circuits
·SWA provides mechanical support to prevent conductor deformation
Current Carrying Capacity and Load Adaptability
·Multi-core configuration balances current distribution and reduces localized heating
·Suitable for high-power systems, industrial plants, and main distribution circuits in large buildings
Environmental Adaptability
·Moisture-proof, corrosion-resistant, UV-resistant
·Suitable for underground, outdoor, high-temperature, and industrial chemical environments
Specifications and Parameters of Thermosetting SWA Cable
Common models cover cross-sections from 16mm², meeting diverse project requirements:
| Model | Conductor | Rated Voltage | Outer Diameter | Weight |
|---|---|---|---|---|
| 3C 16mm² | Copper | 0.6/1kV | 18–20mm | 0.6kg/m |
| 3C 25mm² | Copper | 0.6/1kV | 20–23mm | 0.8kg/m |
| 3C 50mm² | Copper | 0.6/1kV | 26–29mm | 1.2kg/m |
| 3C 95mm² | Copper | 0.6/1kV | 33–36mm | 2.0kg/m |
PVC SWA cables have similar specifications but require additional protection or heat dissipation in high-temperature environments.
Application Scenarios and Engineering Value
1.Buildings and Commercial Complexes
·Main distribution lines in high-rise buildings
·Ensures safe operation under long-term high loads
2.Industrial Facilities
·Metallurgy, chemical, and mechanical manufacturing plants
·Heat-resistant, corrosion-resistant, and mechanically robust
3.Infrastructure Projects
·Airports, subways, tunnels
·LSZH sheaths reduce fire hazards and improve personnel safety
4.Outdoor and Underground Installations
·SWA + XLPE sheath combination
·Long-term underground deployment with minimal maintenance
Comparison: Thermosetting SWA Cable vs PVC SWA Cable
| Performance | Thermosetting SWA Cable | PVC SWA Cable |
|---|---|---|
| Insulation | XLPE | PVC |
| Long-term Temperature | 90–105°C | 70–90°C |
| Short-circuit Resistance | High, withstands 250°C | Medium, insulation softens |
| Mechanical Strength | High | High, slightly less durable |
| Service Life | 30+ years | 20–25 years |
| Environmental Adaptability | Industrial, underground, high-temperature, chemical | Conventional construction and low-voltage environments |
Our Core Advantages
·Comprehensive Product Range Meets Diverse Needs
We provide a full range of IEC-standard thermosetting SWA, power cables, and low- and medium-voltage cables suitable for various engineering scenarios.
·Compliance with IEC Standards
Products support CB certification, meeting strict electrical safety requirements for worldwide.
·Full Specification Coverage
Cross-sections from 16mm² up to 500mm², accommodating different power and core requirements.
·Efficient Delivery and Flexible Supply
Supports both small trial orders and large-scale supply, ensuring on-time project delivery.
·Professional Technical Support Throughout
Our engineering team provides selection guidance, design solutions, and installation support, covering both pre-sale and post-sale services.
·Extensive International Collaboration Experience
Years of export experience and a global partner network ensure smooth execution of overseas projects.
·IEC Certification Ensures Reliability
All thermosetting SWA cables are IEC certified, guaranteeing electrical performance and long-term stability.
·Wide Range of Colors and Customization Options
Customizable in materials, specifications, lengths, performance, labeling, and packaging to meet project-specific requirements.
Real-World Engineering Case Studies
·High-Rise Building Distribution Project
1.Project Overview: International business complex, 30 floors, total load ~1200kVA
2.Cable Used: 3C 95mm² Thermosetting SWA Cable
3.Value: Reliable high-load operation; SWA armour resists tensile and compressive forces; XLPE + PVC combination provides anti-aging, fire, and moisture protection
4.Installation Notes: Dual protection via cable trays and conduits; thermal expansion allowance provided
·Industrial Plant Power Transmission
1.Project Overview: Chemical production facility, total load 2000kVA, ambient temperature >40°C
2.Cable Used: 3C 120mm² Thermosetting SWA Cable, LSZH sheath
3.Value: Stable operation in high-temperature and chemical environments; LSZH sheath enhances safety
4.Installation Notes: Routed via trays and conduits; critical joints sealed against moisture and chemical exposure
·Underground Tunnel & Infrastructure
1.Project Overview: Subway tunnel, 15km, total load 1500kVA
2.Cable Used: 3C 50mm² Thermosetting SWA Cable, PVC/LSZH sheath
3.Value: Crush-resistant, mechanically durable, moisture-proof; LSZH reduces fire risk
4.Installation Notes: Suspended tray system; sealed joints prevent water ingress
·Outdoor High-Temperature & Mining Project
1.Project Overview: Mining site, total load 1000kVA, challenging terrain
2.Cable Used: 3C 25–50mm² Thermosetting SWA Cable
3.Value: Stable operation under high temperature and mechanical wear
4.Installation Notes: Secured on fixed supports; periodic inspections for key sections
These case studies demonstrate that thermosetting SWA cables provide greater reliability than PVC SWA cables in complex environments, ensuring long-term safe operation.
