1. Definition of XHH Wire
XHH wire stands for Cross-Linked Polyethylene High Heat-resistant Wire. The "X" represents XLPE insulation (cross-linked polyethylene), which offers excellent heat resistance and dielectric properties. XHH wire is a low-voltage building wire, typically rated at 600 volts, and is mainly used in power distribution systems in homes, commercial buildings, and light industrial settings.
XHH is defined under UL 44 standards and belongs to the same XLPE-insulated cable family as XHHW and XHHW-2, though each has slightly different environmental applications.

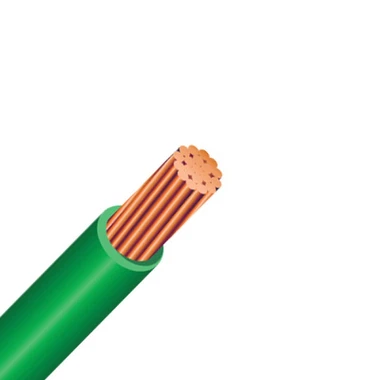

2. Construction of XHH Wire
XHH wire consists of two main parts:
Conductor: Typically copper, available in solid or stranded configurations depending on wire size and flexibility needs.
Insulation: High-quality cross-linked polyethylene (XLPE), providing durability and electrical insulation.
This structure enables XHH wire to maintain performance even in high-temperature or mildly damp environments.
3. Key Performance Features of XHH Wire
Because of its XLPE insulation, XHH wire offers the following advantages:
High-temperature resistance: Rated for operation at up to 90°C in dry or damp locations.
Excellent insulation resistance: Reduces leakage and enhances safety.
Good mechanical strength: Resistant to abrasion and physical damage.
Chemical resistance: Withstands various oils and chemicals.
Flame-retardant: Meets UL 44 flame tests.
Not suitable for wet locations or direct burial: Unlike XHHW or XHHW-2, XHH wire is not water-resistant.
4. Comparison with Other Wire Types
4.1 XHH vs. XHHW
| Feature | XHH | XHHW |
|---|---|---|
| Insulation | XLPE | XLPE |
| Temperature Rating | 90°C (dry/damp) | 90°C (wet/dry) |
| Water Resistance | No | Yes |
| Direct Burial | Not suitable | Suitable |
| Applications | Indoor dry/damp | Indoor, underground, or outdoor |
Summary: XHHW is more versatile and water-resistant than XHH. However, XHH is more cost-effective for indoor use.
4.2 XHH vs. THHN
| Feature | XHH | THHN |
|---|---|---|
| Insulation Material | XLPE | PVC + Nylon |
| Heat Resistance | High | Medium |
| Flame Retardance | High | High |
| Flexibility | Moderate | High |
| Installation Ease | Moderate | Easier |
Summary: THHN is easier to install due to flexibility, while XHH performs better in high-temperature environments.
5. Common Applications of XHH Wire
XHH wire is commonly used in the following applications:
Power distribution in residential and commercial buildings
Lighting circuits, outlet wiring, and branch circuits
Motor controls and industrial panels
Installation in conduits, trays, or enclosed spaces
Case Example: Office Building Power Distribution
In a multi-floor office building, XHH 4 AWG copper wires were used in the main power distribution panels. The system operates at 90°C, and the dry indoor environment made XHH the ideal economical and code-compliant choice.
6. Specifications and Selection Guide
| Wire Size (AWG/kcmil) | Conductor Diameter (mm) | Ampacity (90°C) |
|---|---|---|
| 14 AWG | 1.63 | 25A |
| 10 AWG | 2.59 | 40A |
| 6 AWG | 4.11 | 65A |
| 2 AWG | 6.54 | 115A |
| 1/0 AWG | 8.25 | 150A |
Selection Tips:
Base your choice on load current, circuit length, and ambient temperature
For outdoor or underground use, select XHHW or XHHW-2 instead
In tight spaces requiring flexibility, THHN may be a better fit
7. Standards and Certifications
XHH wire is typically compliant with the following:
UL 44 – Underwriters Laboratories standard for building wire
CSA – Canadian Standards Association
NEC Article 310 – National Electrical Code
RoHS compliant – Lead-free and environmentally friendly
FT4 flame rating (optional for some types)
8. Frequently Asked Questions
Q1: Can XHH wire be used for underground installations?
A: No. XHH is not rated for wet locations or direct burial. Choose XHHW or XHHW-2 instead.
Q2: Is XHH wire RoHS compliant?
A: Yes, most modern XHH wires are RoHS compliant. Check the product label for confirmation.
Q3: Can XHH and XHHW be used interchangeably?
A: Only in dry indoor environments. For wet or underground use, XHHW is necessary.
Q4: Is XHH suitable for use in main feeders?
A: Yes. XHH wire sizes above 1/0 AWG are commonly used for main feeders in 600V systems.
Q5: What is the voltage rating for XHH wire?
A: The standard voltage rating is 600 volts.
