What Use Is An NM Cable Suitable For HVAC?

When it comes to residential and light commercial electrical wiring, one of the most common cable types is the NM cable (Non-Metallic Sheathed Cable). On the other hand, HVAC systems (Heating, Ventilation, and Air Conditioning) are critical for modern living, providing comfort, efficiency, and air quality.

A frequent question from homeowners, electricians, and contractors is:
👉 "Is NM cable suitable for HVAC applications? If yes, what use is it best for?"

This article will explain what NM cable is, what HVAC systems require, how NM cable fits into HVAC applications, and how to select the right size and type.

What is NM Cable?

NM cable, often referred to as Romex® (a well-known brand), is short for Non-Metallic Sheathed Cable.

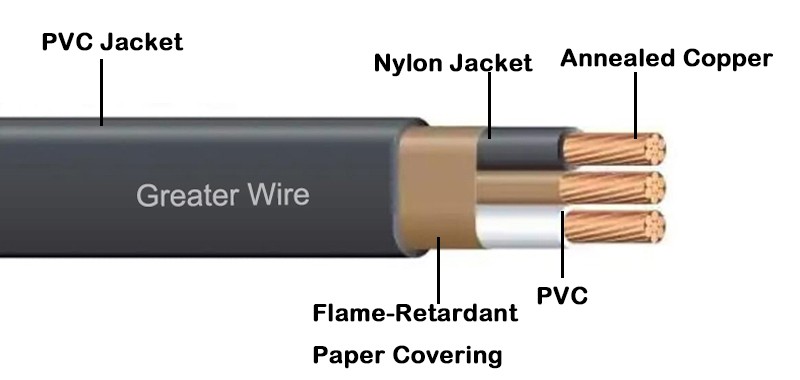

• Structure: It has a PVC outer jacket, insulated copper conductors, and a bare copper grounding wire.
• Voltage Rating: Typically rated for 600 volts.
• Heat Resistance: NM-B cable is rated up to 90℃ (194℉) for conductor insulation.
• Applications: Indoor residential wiring, especially for outlets, lighting, and appliances.

Advantages:

• Cost-effective.
• Easy to install and pull through framing.
• Widely available in different sizes (14 AWG – 6 AWG).

⚠️ Limitation: It is not rated for wet or outdoor use, nor for direct burial.

What is HVAC?

HVAC stands for Heating, Ventilation, and Air Conditioning.

• Heating (H): Furnaces, electric heaters, or heat pumps that provide warmth in winter.
• Ventilation (V): Fans, blowers, and duct systems that move and filter air.
• Air Conditioning (AC): Compressors, condensers, and indoor units that cool and dehumidify air.

Why HVAC matters:

• Provides comfortable indoor temperatures.
• Ensures healthy indoor air quality.
• Critical for residential homes, offices, hospitals, and industrial facilities.

⚡ Electrical Demands of HVAC: HVAC equipment often requires high current loads, multiple voltage levels (120V & 240V), and dedicated circuits for safe operation.

Electrical Demands of HVAC Systems

An HVAC system can include multiple components, each with its own wiring requirements:

• High Current Loads: Compressors, electric heaters, and blowers often need 20A, 30A, 40A, or even 50A circuits.
• Different Voltages: Some parts run on 120V (thermostats, control boards), while others require 240V (compressors, heat pumps).
• Wiring Distance: Outdoor units may be located far from the main panel, requiring consideration for voltage drop.
• Installation Environment: Attics, basements, and equipment rooms all require safe, code-compliant wiring.

Suitability of NM Cable for HVAC

Can you use NM cable for HVAC?
Yes - but only in the right applications.

✅ Suitable Uses of NM Cable in HVAC

• Indoor fixed wiring for furnaces, air handlers, blowers, and electric heaters.
• Short runs from the electrical panel to HVAC equipment located indoors.
• Control power circuits for thermostats and control boards.

❌ Not Suitable

• Outdoor exposed runs (e.g., directly to an outdoor AC condenser).
• Wet or damp locations (underground, outdoor walls, crawl spaces prone to moisture).
• Locations requiring mechanical protection (garage walls without conduit, exposed basements).

👉 Conclusion: NM cable is suitable for HVAC indoor wiring, but not for outdoor or high-stress environments.

Typical Applications of NM Cable in HVAC

NM cable can be found in various HVAC-related wiring tasks:

• Air Handler – Provides power to indoor air circulation units.
• Furnace Blower – Uses 12/2 or 10/2 NM-B depending on motor size.
• Electric Heater – Often requires heavier gauge cables such as 10/2 or 6/3 NM-B.
• HVAC Control Circuits – Thermostat and control boards may use 14/2 NM-B.
• Mini-Split Systems – Indoor unit power can sometimes be supplied with NM cable, if installed indoors.

Common NM Cable Sizes and Their HVAC Applications

⚡ Key Tip: Always size the NM cable according to NEC guidelines, equipment nameplate ratings, and breaker size.

How to Choose the Right NM Cable for HVAC

When choosing NM cable for HVAC applications, consider:

• Ampacity – Check the equipment nameplate for amperage rating.
• Voltage – Decide if you need a 120V (2-conductor) or 240V (3-conductor) cable.
• Environment – Use NM-B for dry indoor spaces; use UF-B or MC for outdoor/wet areas.
• Length – For long runs, account for voltage drop.

Examples:

• A furnace blower that requires 20A → Use 12/2 NM-B.
• An electric furnace needing 50A → Use 6/3 NM-B.
• A split AC outdoor unit requiring 40A (240V) → Use 8/3 NM-B, but only if indoors or protected; otherwise, use MC cable.

Limitations of NM Cable in HVAC

While NM cable is versatile, it has limitations:

• ❌ Not moisture-resistant → cannot be buried or used outdoors.
• ❌ Limited mechanical protection → not suitable for exposed areas without conduit.
• ❌ NEC restrictions → some HVAC circuits (especially outdoor units) must use MC or conduit wiring.

Conclusion: What Use Is an NM Cable Suitable for HVAC?

NM cable can be an excellent choice for indoor HVAC applications, especially for:

• Air handlers, furnace blowers, electric heaters, and control circuits.

However, it is not suitable for outdoor units or damp environments. In those cases, you must use UF-B, MC cable, or conduit wiring.

👉 In summary: Use NM cable for HVAC indoor wiring, but always follow NEC code and equipment specifications.
