1.Understanding XHHW Wire: Key Specifications and Advantages
XHHW (Cross-Linked Polyethylene High Heat and Water-Resistant) wire is renowned for its robust construction and adaptability to harsh environments. Below, we break down its core specifications and why it outperforms many alternatives.
1.1 XHHW Wire Specifications
Insulation Material: Cross-linked polyethylene (XLPE) insulation ensures resistance to heat, moisture, chemicals, and abrasion.
Voltage Ratings: Standard XHHW wire is rated for up to 600V, while XHHW-2 AWG cable and 2 AWG XHHW copper 1000V variants are suitable for higher-voltage applications.
Temperature Range: Operates efficiently in temperatures ranging from -40°C to 90°C (-40°F to 194°F).
Conductor Options: Available in copper (superior conductivity) and aluminum (lightweight and cost-effective), such as 2/0 XHHW aluminum wire.
Compliance: Meets UL 44, NEC Article 310, and ASTM B3/B8 standards.
1.2 Why Choose XHHW Wire?
Durability: XLPE insulation resists cracking, sunlight (UV rays), and oil/grease exposure.
Flexibility: Easier to handle than rigid metal-clad cables.
Cost Efficiency: Aluminum variants like 2/0 XHHW aluminum wire reduce material costs without compromising performance.
Safety: Flame-retardant and low-smoke properties minimize fire hazards.
2.Pre-Installation Planning for XHHW Wire
Proper installation begins with meticulous planning. Here's how to prepare for a successful project:
2.1 Assess Electrical Load Requirements
Calculate the amperage needs of your system to select the correct wire size. For example:

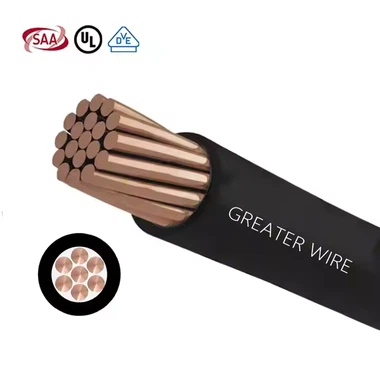

2 AWG XHHW copper 1000V handles up to 130A at 75°C.
2/0 XHHW aluminum wire supports ~135A, ideal for feeder lines.
Refer to NEC ampacity tables to avoid under- or oversizing.
2.2 Choose the Right XHHW Variant
600V Applications: Standard XHHW wire 600V suffices for most residential and light commercial circuits.

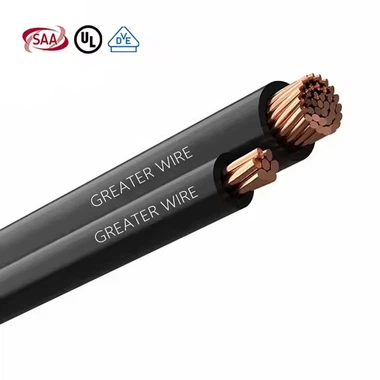

High-Voltage Needs: Opt for XHHW-2 AWG cable or 2 AWG XHHW copper 1000V for industrial machinery or solar arrays.
Budget Constraints: Aluminum conductors (e.g., 2/0 XHHW aluminum wire) offer significant savings for large-scale projects.
2.3 Gather Tools and Materials
Wire strippers, crimping tools, conduit benders, and voltage testers.
Conduit (PVC or metal) for protection in exposed or hazardous areas.
3.Step-by-Step Installation Guide for XHHW Wire
Step 1: Prepare the Conduit System
Use PVC conduit for corrosive environments or metal conduit for mechanical protection.
Ensure bends comply with NEC radius requirements (e.g., 6x conduit diameter for EMT).
Step 2: Measure and Cut the Wire
Factor in extra length (10–15%) for terminations and future adjustments.
For XHHW-2 AWG cable, use a rotary cutter to avoid insulation damage.
Step 3: Strip and Terminate Conductors
Strip insulation using a thermal stripper to prevent nicking copper/aluminum strands.
Apply anti-oxidant paste to 2/0 XHHW aluminum wire connections to combat corrosion.
Step 4: Secure the Wire in Conduit
Avoid overfilling conduits-maintain ≤40% fill capacity per NEC guidelines.
Use cable ties or straps every 4–6 feet for support.
Step 5: Test Continuity and Insulation
Use a megohmmeter to verify insulation resistance (>1,000 megohms for XLPE).
Perform a voltage drop test to ensure efficient power delivery.
4.Common Mistakes to Avoid
Ignoring Temperature Ratings: Exceeding 90°C can degrade insulation.
Mixing Copper and Aluminum: Use UL-listed connectors rated for both materials.
Inadequate Grounding: Always bond metal conduits and equipment.
5.Applications of XHHW Wire
Industrial Panels: XHHW-2 AWG cable excels in high-heat manufacturing plants.
Solar Farms: 2 AWG XHHW copper 1000V withstands outdoor UV exposure.
Commercial Buildings: 2/0 XHHW aluminum wire reduces costs in large feeder runs.
