1. What Is XHHW Wire?
XHHW stands for "Cross-Linked Polyethylene High Heat-Resistant and Water-Resistant." It is a type of electrical wire designed for use in dry and damp locations, with a maximum temperature rating of 90°C (194°F) in wet conditions and 90°C to 150°C (302°F) in dry environments. The cross-linked polyethylene (XLPE) insulation provides superior thermal stability, chemical resistance, and mechanical durability compared to traditional PVC-insulated wires. This makes XHHW ideal for demanding applications, including electrical panels, service entrances, and industrial machinery.
Key Features of XHHW Wire:
XLPE Insulation: Enhances resistance to heat, abrasion, and moisture.
Voltage Rating: Typically rated for 600V, suitable for most low-to-medium voltage applications.
Flexibility: Easier to install than rigid metal-clad cables.
Compliance: Meets NEC (National Electrical Code), UL (Underwriters Laboratories), and CSA (Canadian Standards Association) standards.
2. Performance Advantages of XHHW Wire in Electrical Panels
Electrical panels require wiring that can handle high current loads, resist environmental stressors, and ensure long-term safety. Here's how XHHW wire excels in these areas:
A. Superior Thermal Resistance
The XLPE insulation in XHHW wire allows it to operate efficiently at elevated temperatures. For example, 2/0 XHHW aluminum wire and 2 AWG XHHW cable are engineered to withstand heat generated by high-current applications without degrading. This reduces the risk of insulation meltdown, a critical factor in densely packed electrical panels.
B. Moisture and Chemical Resistance

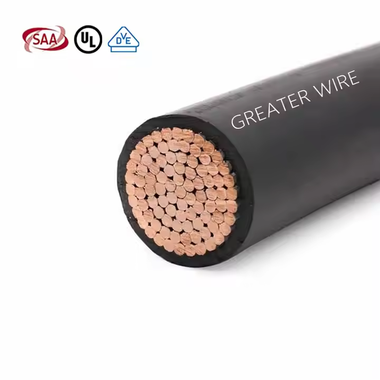

XHHW-2-rated cables, such as 2 AWG XHHW-2 aluminum wire, feature enhanced water resistance, making them suitable for damp environments or outdoor installations where condensation might occur. The insulation also resists oils, acids, and alkalis, ensuring reliability in industrial settings.
C. Durability and Longevity
Aluminum XHHW wires, including 250 MCM XHHW aluminum, offer a lightweight yet robust alternative to copper. Aluminum's natural oxide layer provides corrosion resistance, while the XLPE insulation protects against physical wear. This combination extends the lifespan of electrical panel installations.
D. Cost-Effectiveness
Aluminum XHHW wires like 2/0 XHHW aluminum wire 600V are significantly lighter and more affordable than copper equivalents. For large-scale projects, this translates to lower material and labor costs without compromising performance.
3. Applications of XHHW Wire in Electrical Panels
XHHW wire is a staple in electrical panels due to its versatility. Below are common use cases for specific variants:

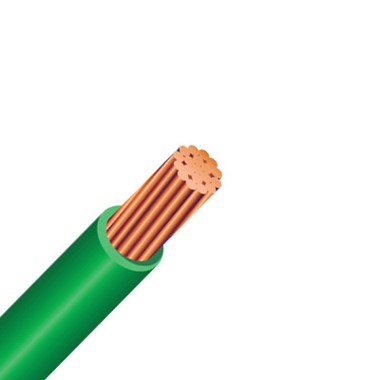

A. 2/0 XHHW Aluminum Wire 600V
Service Entrance Conductors: Handles high current loads from utility feeds to main panels.
Feeder Circuits: Distributes power to subpanels or heavy machinery.
Industrial Panels: Ideal for environments requiring corrosion-resistant wiring.
B. 2 AWG XHHW Cable
Branch Circuits: Powers lighting, HVAC systems, and outlets.
Retrofitting: Upgrades older panels with modern, heat-resistant wiring.

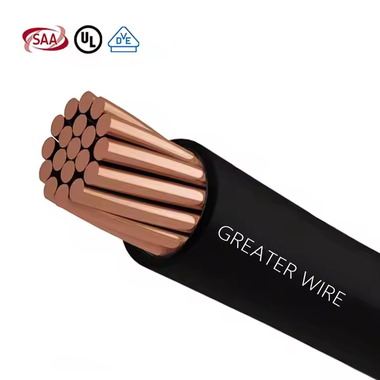

C. 250 MCM XHHW Aluminum
High-Capacity Panels: Supports large commercial or industrial loads.
Underground Conduits: Resists moisture in buried applications.
D. XHHW-2 Aluminum Wire
Outdoor Panels: Withstands UV exposure and humidity.
Harsh Environments: Used in chemical plants or wastewater treatment facilities.
4. Comparing XHHW Wire to Alternatives
To highlight the superiority of XHHW wire, let's compare it to common alternatives like THHN/THWN and copper wiring.
| Feature | XHHW (Aluminum) | THHN/THWN (Copper) | Bare Copper |
|---|---|---|---|
| Max Temperature | 90°C (wet), 150°C (dry) | 90°C (wet), 90°C (dry) | Varies by insulation |
| Moisture Resistance | Excellent | Moderate | Poor |
| Cost | Low | High | Very High |
| Weight | Lightweight | Heavy | Heavy |
| Corrosion Resistance | High | Moderate | Low |
For electrical panels, XHHW aluminum wire strikes a balance between performance, cost, and ease of installation.
5. Code Compliance and Safety Considerations
XHHW wire is widely accepted under NEC Article 310 and UL Standard 44. Key compliance points include:

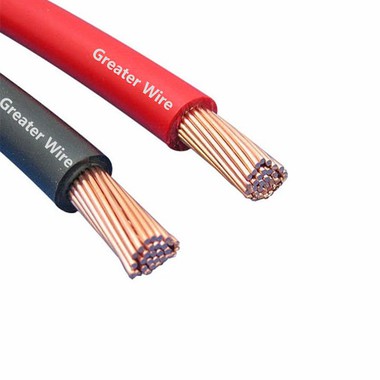

Ampacity Ratings: 2/0 XHHW wire 600V has an ampacity of 135A (75°C termination rating), suitable for most panel applications.
Conduit Compatibility: Can be installed in EMT, PVC, or rigid metal conduits.
Grounding: Aluminum XHHW requires proper anti-oxidant paste to prevent galvanic corrosion.
6. Choosing the Right XHHW Wire for Your Panel
Selecting the correct XHHW variant depends on load requirements, environmental conditions, and budget:
For Heavy Loads: 250 MCM XHHW aluminum supports up to 290A.
For Cost-Sensitive Projects: 2 AWG XHHW-2 aluminum wire offers a budget-friendly option for branch circuits.
For High-Temperature Areas: 2/0 XHHW wire 600V ensures reliable performance in hot environments.
7. Installation Best Practices
Use compression lugs for aluminum terminations.
Avoid sharp bends to prevent insulation damage.
Label wires clearly for easy maintenance.
