If you've ever had to replace corroded MC cable in a commercial basement or pay extra for conduit on a direct burial project, you know how costly choosing the wrong cable can be. Standard MC cable works great for dry indoor runs, but it falls short when exposed to moisture, soil, or UV rays. That's where PVC jacketed MC cable comes in. This guide breaks down exactly what it is, when to use it, and how to select the right type for your wet location or direct burial projects.
1. Why Standard MC Cable Fails in Wet & Direct Burial Projects?
Most electrical professionals have learned this lesson the hard way: standard bare-armor MC cable is not designed for damp or underground environments. The exposed aluminum or galvanized steel armor will corrode over time when exposed to moisture, soil chemicals, or salt air. This corrosion weakens the mechanical protection and can eventually lead to electrical faults.
The Hidden Costs of Using the Wrong Cable in Moist Environments:
· Extra conduit expenses: Standard MC cable requires full conduit protection for outdoor or direct burial runs, doubling material costs.
· Longer installation time: Running conduit adds hours or even days to project timelines.
· Future replacement costs: Corroded cable will need to be replaced prematurely, leading to downtime and additional labor expenses.
· Code compliance risks: Using standard MC cable in wet locations can result in failed inspections and costly rework.
2. What Makes PVC Jacketed MC Cable Different?
PVC jacketed MC cable builds on the proven design of standard MC cable by adding a durable, non-metallic PVC outer jacket that seals out moisture, chemicals, and UV rays. This simple addition transforms the cable from an indoor-only solution to a versatile option for both wet and dry locations.

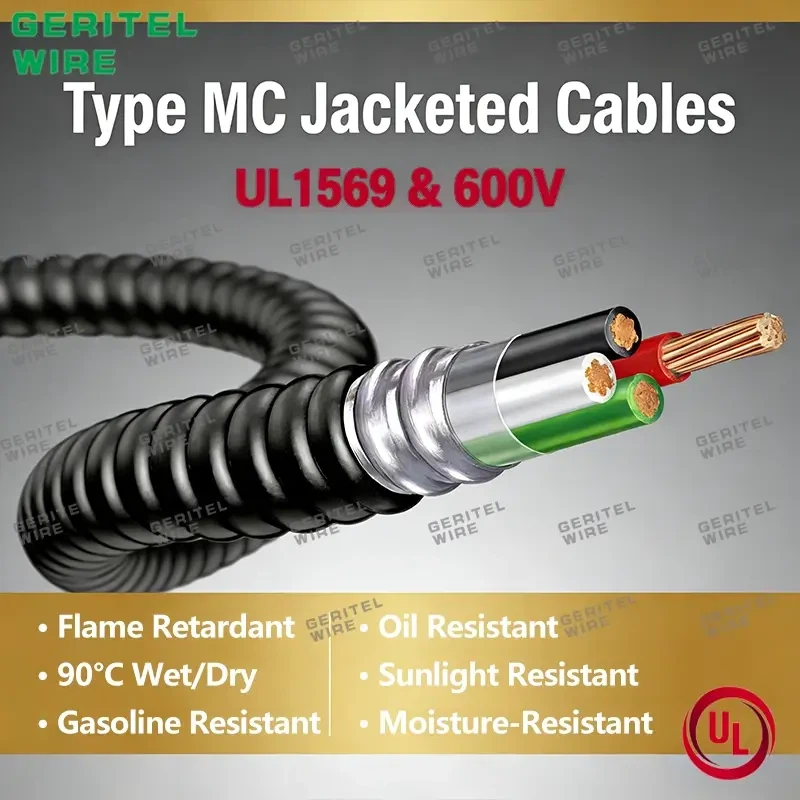

Breaking Down the 5-Layer Construction:
· Copper conductors: Available in solid or stranded configurations, with common sizes including 14 AWG 2 conductor PVC jacketed MC cable for lighting circuits and 3/C or 4/C configurations for power and control runs.

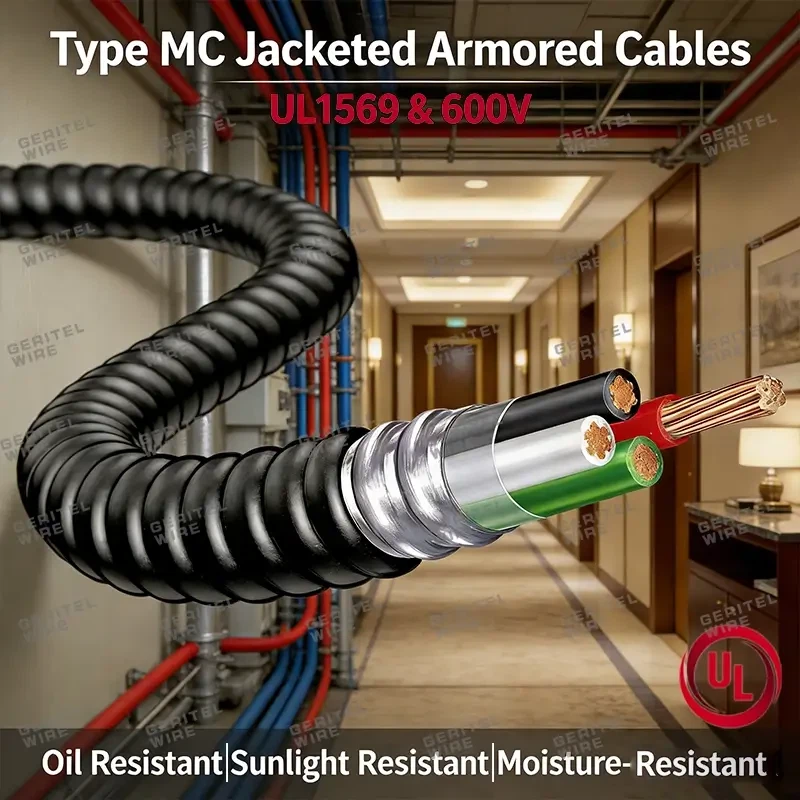

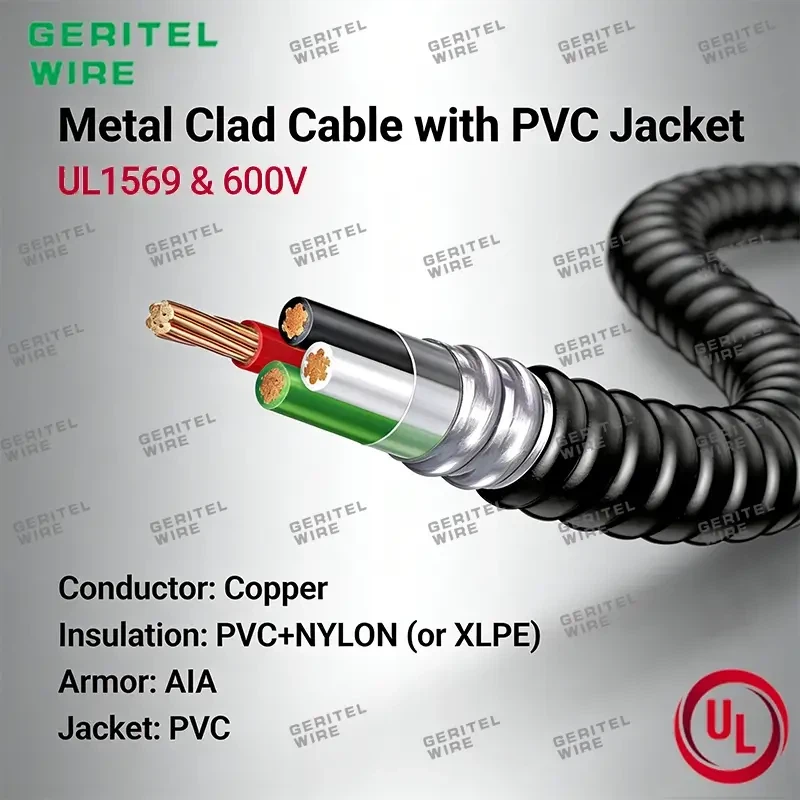

· Insulation: Most cables use THHN/THWN-2 insulated conductors, which are rated for both dry and wet locations. For higher temperature applications, XHHW-2 PVC jacketed MC cable is also available.
· Separator tape: A non-conductive binder tape keeps the conductors aligned and prevents the armor from damaging the insulation.
· Aluminum interlocked armor: The rugged, flexible metal shield provides protection against impact, crush, and rodent damage.
· PVC outer jacket: The key differentiator. This seamless jacket provides excellent moisture, corrosion, and UV resistance, allowing the cable to be used in wet locations and for direct burial without additional conduit.
3. When to Choose PVC Jacketed MC Cable?
While PVC jacketed MC cable can be used in dry indoor locations just like standard MC cable, its true value shines in two specific applications where standard cable falls short.
Wet Locations: From Commercial Basements to Outdoor Installations
PVC jacketed MC cable is ideal for any area where moisture is present, including:
· Commercial building basements and crawl spaces
· Outdoor parking lot lighting
· Car wash facilities
· Pool and spa equipment rooms
· Exterior building wiring
For these applications, 14/2 THHN/THWN-2 PVC jacketed MC cable is the most common choice for general lighting and receptacle circuits.
Direct Burial: No Conduit, Faster Installation, Lower Costs
The biggest advantage of PVC jacketed MC cable is its ability to be directly buried in the ground without the need for additional conduit. This can cut installation time by up to 50% and significantly reduce material costs.
Common direct burial applications include:
· Landscape lighting
· Underground power runs between buildings
· Irrigation system wiring
· Outdoor security systems
When selecting cable for direct burial, ensure you choose a product specifically rated for underground use. 14/2 PVC jacketed MC cable is a popular choice for low-voltage and 120V lighting circuits.
4. How to Select the Right PVC Jacketed MC Cable for Your Project?
Not all PVC jacketed MC cables are created equal. Use this practical checklist to ensure you select the right product for your specific needs.
Key Specifications to Verify:
· Insulation type: THHN/THWN-2 is suitable for most general-purpose applications up to 600V. XHHW-2 insulation offers better heat resistance and is ideal for higher temperature environments.
· Armor type: Aluminum interlocked armor is the most common and offers a good balance of strength and flexibility. Galvanized steel armor is available for applications requiring extra mechanical protection.
· Conductor configuration: Choose between 2/C, 3/C, or 4/C configurations based on your circuit requirements. Most cables include either a bare ground or insulated green ground conductor.
· Size rating: Match the conductor size to your load requirements. 14 AWG is standard for 15A circuits, while 12 AWG is used for 20A circuits.
Matching Cable Type to Project Requirements:
· For general wet location wiring: 14/2 THHN/THWN-2 PVC jacketed MC cable
· For direct burial lighting: 14/2 PVC jacketed MC cable
· For higher temperature applications: XHHW-2 PVC jacketed MC cable
· For heavy-duty industrial use: Galvanized steel armor PVC jacketed MC cable
Always verify that the cable you select meets all local electrical code requirements for your specific application.
5. FAQ: Common Questions About PVC Jacketed MC Cable
Q: What is the difference between standard MC cable and PVC jacketed MC cable?
A: Standard MC cable has exposed metal armor and is only rated for dry indoor locations. PVC jacketed MC cable has an additional PVC outer jacket that provides moisture, corrosion, and UV resistance, making it suitable for wet locations and direct burial.
Q: Can PVC jacketed MC cable be used without conduit?
A: Yes, PVC jacketed MC cable can be installed without conduit in both wet locations and for direct burial, as long as it is properly rated for the application.
Q: What is the voltage rating for PVC jacketed MC cable?
A: Most PVC jacketed MC cables are rated for 600V, which is suitable for most commercial and industrial electrical applications.
Q: Is THHN/THWN-2 insulation suitable for wet locations?
A: Yes, THHN/THWN-2 insulation is rated for both dry and wet locations, making it the most common insulation type for PVC jacketed MC cable.
6. Ready to Source PVC Jacketed MC Cable for Your Next Project?
Choosing the right cable for wet location and direct burial projects doesn't have to be complicated. PVC jacketed MC cable offers a cost-effective, code-compliant solution that eliminates the need for extra conduit and reduces installation time.
