When it comes to electrical safety and reliable power distribution, few things are as important as choosing the right cable. Behind every safe connection in a home, office, or industrial building, there is a cable designed not only to carry electricity but also to meet stringent safety and performance standards. One of the most widely recognized standards in the UK and many global markets is BS6004, a benchmark for PVC insulated, non-armoured cables with voltage ratings up to 450/750V. But what exactly does this standard mean, why is it important, and how does it translate into real-world applications? More importantly, how can choosing a supplier with expertise in BS6004-compliant products help you reduce risk and enhance efficiency? Let's take a deeper look.
Understanding the BS6004 Standard
The BS6004 Standard is a British Standard specification titled: "Electric cables - PVC insulated, non-armoured cables for voltages up to and including 450/750 V, for electric power and lighting." In simpler terms, BS6004 covers a family of low-voltage, PVC-insulated electrical cables that are widely used in building wiring. These cables are not armoured, which means they are typically installed in environments where additional physical protection is not required, such as within walls, conduits, or surface-mounted cable management systems.
BS6004 classifies cables by voltage ratings: 300/500V cables for lighter-duty applications and 450/750V for more demanding circuits. The conductors, usually copper in Class 1 (solid) or Class 2 (stranded) form, are designed according to BS EN 60228, ensuring consistent conductivity and mechanical performance. Insulation is made from high-quality PVC, offering electrical safety, thermal stability, and flame retardant properties. Color coding under BS6004 also follows strict rules-brown for live conductors, blue for neutral, and green/yellow for earth-helping electricians and installers quickly identify circuits and avoid costly mistakes.
To give you a clearer picture, here is a summary of some key technical requirements under BS6004:
| Item | Requirement (Typical BS6004 Specification) |
|---|---|
| Rated Voltage | 300/500 V or 450/750 V |
| Conductor Type | Copper, Class 1 (solid) or Class 2 (stranded), per BS EN 60228 |
| Conductor Sizes | From 0.5 mm² up to 10 mm² (commonly used in building wiring) |
| Insulation Material | PVC (Polyvinyl Chloride), heat-resistant and flame-retardant |
| Insulation Thickness (min.) | 0.6 mm for 300/500 V; 0.8 mm for 450/750 V |
| Operating Temperature | -15°C to +70°C (typical continuous service) |
| Identification Colors | Brown = Live, Blue = Neutral, Green/Yellow = Earth |
| Flame Retardancy | Must pass standard vertical flame test (IEC/BS) |
In short, BS6004 is more than a number. It is a comprehensive rulebook that defines the construction, performance, and identification of everyday building cables, giving assurance that what runs through your walls or ceilings is safe, compliant, and reliable.
Why the BS6004 Standard Matters
Standards like BS6004 might seem technical, but their importance cannot be overstated. Imagine wiring a modern apartment block or commercial office with cables that don't meet recognized safety benchmarks. The risks could include overheating, insulation failure, fire hazards, or non-compliance with building regulations-all of which translate into danger for occupants and liability for contractors.
The first area where BS6004 proves vital is safety. By mandating stringent electrical and mechanical performance requirements, the standard ensures cables have sufficient insulation thickness, correct conductor sizing, and fire-retardant properties. This directly reduces the risk of electrical fires or accidental electric shock.
Another key factor is regulatory compliance. In the UK and many international markets, construction and electrical installation codes reference BS6004-compliant cables. For contractors and distributors, offering BS6004 cables means peace of mind during inspections and certifications. For end-users, it means their building meets required standards for insurance and safety audits.
Finally, there is long-term reliability. BS6004 cables are tested for durability, resistance to bending and mechanical stress, and stable performance at their rated operating temperature of 70°C. That translates into longer service life, fewer breakdowns, and lower maintenance costs. In industries where downtime is expensive, or in residential projects where safety is paramount, these benefits cannot be ignored.
Where Are BS6004 Cables Used?
BS6004 cables are so common that many people don't even realize they are all around us. Step into a modern apartment, and the wiring that powers ceiling lights, wall sockets, and kitchen appliances is very likely made to BS6004.
In residential buildings, these cables are widely used for general wiring of lighting circuits, socket outlets, and small appliances. Their flexibility and availability in single-core and multi-core versions make them ideal for installation in conduits, trunking, and even surface-mounted systems. For example, the familiar twin-and-earth flat cable used by electricians across the UK is designed in accordance with BS6004, making it the go-to choice for domestic wiring.
Commercial buildings also rely heavily on BS6004-compliant products. Office spaces, retail outlets, and schools require reliable, safe cabling for everything from lighting networks to power sockets. These environments often involve long hours of usage and higher loads, so compliance with BS6004 ensures the electrical infrastructure can handle daily demands without compromise.
Even in light industrial facilities, BS6004 cables find application in control wiring and distribution boards. Though not intended for heavy-duty outdoor or underground use like armoured cables (such as BS5467 SWA cables), BS6004 cables play a critical role in internal circuits where mechanical protection is not the main concern.
A Typical BS6004-Compliant Product: The 6242Y Twin & Earth Cable

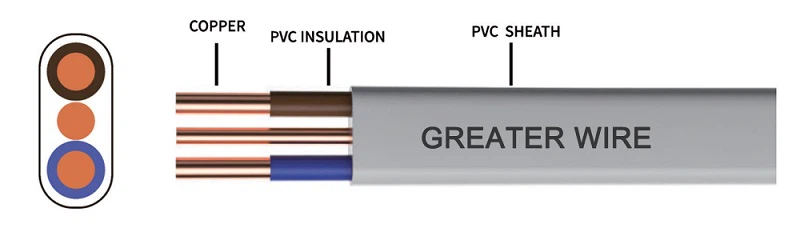

No discussion of BS6004 would be complete without mentioning the 6242Y Twin & Earth cable, perhaps the most widely used building wire in the UK. This flat-profile cable contains two insulated conductors (brown for live, blue for neutral) and an uninsulated bare copper earth conductor, all sheathed in PVC.
The twin-and-earth design makes installation straightforward: it is flat, easy to clip along surfaces, and fits neatly into conduits or trunking. Electricians value its balance of flexibility and robustness, while building contractors trust it for compliance with BS6004 safety and performance requirements. From wiring kitchen sockets to lighting circuits, the 6242Y has become the standard choice for electricians precisely because it embodies the principles of BS6004-safety, reliability, and practicality.
There are also variations like 6242B, which uses low-smoke zero halogen (LSZH) insulation for applications where smoke toxicity during fire must be minimized. This demonstrates how the BS6004 framework allows flexibility for specialized needs while maintaining overall compliance.
Why Choose Dongguan Greater Wire & Cable Co., Ltd. for BS6004 Cables?
While understanding the BS6004 standard is important, choosing the right supplier is what truly ensures you benefit from everything the standard promises. That is where Dongguan Greater Wire & Cable Co., Ltd. comes in.
Our company has been manufacturing high-quality electrical cables for more than 30 years, with a production facility covering over 50,000 square meters and equipped with advanced automated machinery. This scale allows us to deliver BS6004-compliant products efficiently and with consistent quality. Every cable undergoes rigorous testing for conductor resistance, insulation integrity, flame retardancy, and mechanical performance, ensuring strict adherence to the BS6004 requirements as well as other international standards like IEC, AS/NZS, and BS5467.
One of our greatest strengths lies in flexibility and customization. We understand that not every project is the same, so we offer cables in customized lengths, colors, packaging, and even with personalized markings. Whether you are a distributor needing bulk orders or a contractor requiring specific configurations, we adapt to your needs without compromising quality or lead time.
Moreover, our commitment to certification and compliance is unmatched. With more than 50 product certifications across multiple global markets, we make it easier for clients to win tenders, pass inspections, and meet regulatory demands. That translates into fewer project delays and stronger market competitiveness for our partners.
Equally important is our customer service. We offer 24/7 support to clients worldwide, providing technical guidance on cable selection, installation practices, and after-sales troubleshooting. This combination of technical know-how and customer-first philosophy ensures you not only get a product but also a long-term partner invested in your success.
And let's not forget logistics. Thanks to our global export experience, we guarantee fast delivery and reliable shipping solutions, helping customers avoid costly delays in their projects. In today's fast-paced construction industry, having a supplier who can deliver quickly and dependably is a competitive advantage you cannot overlook.
The BS6004 Standard represents more than just a technical specification. It is a cornerstone of safe, reliable, and compliant building wiring. From its strict rules on conductor design and insulation to its focus on fire safety and long-term performance, BS6004 ensures that the cables powering our homes, offices, and commercial spaces are up to the task.
By choosing BS6004-compliant products such as the widely trusted 6242Y Twin & Earth cable, contractors, electricians, and end-users can rest assured that their installations are safe, efficient, and built to last. Yet the true value comes when you combine the assurance of BS6004 with the expertise and capabilities of a manufacturer committed to excellence.
At Dongguan Greater Wire & Cable Co., Ltd., we don't just produce cables-we deliver trust, compliance, and partnership. With our advanced facilities, extensive certifications, customization options, rapid logistics, and round-the-clock support, we are the go-to supplier for BS6004-standard electrical cables and beyond.
If you are looking for a reliable partner to supply BS6004-compliant cables for your next project, we invite you to connect with us today.
