When setting up a solar power system, choosing the right type of wire is critical. Many DIY solar enthusiasts wonder: Can you use UF-B wire for DC solar? Using the wrong wire can lead to energy loss, safety hazards, and even NEC (National Electrical Code) violations.
In this article, we'll break down what UF-B wire is, why DC solar wiring has specific requirements, and directly answer this common question. We'll also compare UF-B wire with PV wire, offer practical tips for selecting the right wiring, and introduce the advantages of working with Dongguan Greater Wire & Cable Co., Ltd., a trusted supplier of UL and CUL certified products.
What is UF-B Wire?
Before answering whether UF-B wire can be used in a solar DC system, it's important to understand what UF-B wire actually is.
Definition

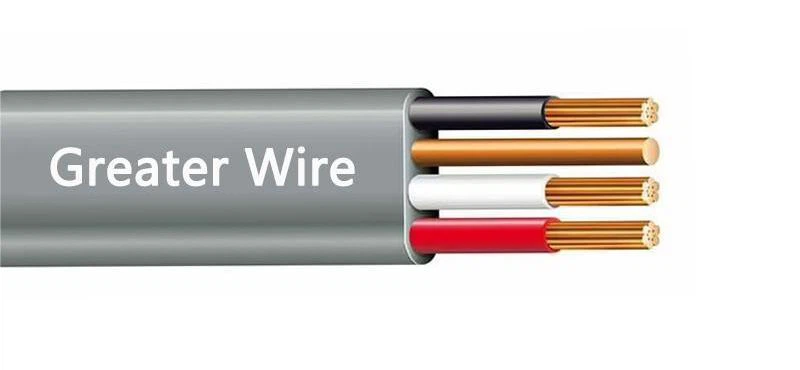

UF-B stands for "Underground Feeder, Type B". It is a type of direct-burial electrical cable designed for outdoor and underground applications. UF-B wire is most commonly used for residential or agricultural power distribution, especially for powering outdoor lighting, sheds, garages, and water pumps.
Common Applications of UF-B Wire
- Underground lighting circuits for gardens or yards
- Powering outdoor garages, sheds, and barns
- Agricultural irrigation or pump systems
- Temporary or semi-permanent outdoor electrical setups
Note:
While UF-B is moisture-resistant and suitable for burial, it was not designed specifically for solar photovoltaic (PV) systems.
UF-B Wire Structure & Features
| Component | Description | Function |
|---|---|---|
| Solid Copper Conductor | Single solid copper core per wire | Good conductivity but low flexibility |
| Individual Insulation | PVC insulation around each conductor | Prevents short circuits and leakage |
| Outer Sheath | Gray PVC jacket | Moisture-resistant, suitable for burial |
| Temperature Rating | Typically 60°C | Not ideal for high-temperature environments |
Summary:
UF-B wire excels in underground and moisture-prone environments, but its insulation is not UV-resistant and degrades quickly when exposed to direct sunlight, making it unsuitable for long-term solar applications.
Basics of DC Solar Wiring
To determine whether UF-B wire is appropriate for a solar system, it's essential to understand the basic requirements for DC solar wiring.
DC Current Characteristics
Solar panels generate direct current (DC), which behaves differently from household alternating current (AC). Key characteristics include:
- Continuous Flow: DC current is constant and can generate more heat over time.
- High Insulation Requirements: Damaged or insufficient insulation can easily cause arcing, potentially leading to fires.
- Voltage Drop Concerns: Longer distances increase resistance and energy loss, requiring careful wire size selection.
Example:
If the wrong wire type or gauge is used, efficiency drops, and sensitive equipment like inverters or controllers can be damaged.
NEC Requirements for Solar Wiring
The National Electrical Code (NEC) sets clear rules for solar installations:
- Wires must be "Sunlight Resistant", high-temperature rated, and double insulated for safety.
- Commonly approved solar wire types include:
- PV Wire: Designed specifically for solar panels, with superior UV resistance and high temperature ratings (90°C or 105°C).
- USE-2 Wire: Typically used between solar modules and junction boxes.
- THHN/THWN-2 Wire: Used indoors or as a transition between indoor and outdoor wiring.
Key Point:
UF-B wire is not listed in NEC-approved wire types for solar PV systems, meaning it cannot be used legally in many jurisdictions.
Can You Use UF-B Wire for DC Solar?
The Short Answer: No, It's Not Recommended
Technically, UF-B wire can carry DC current, but it is not safe or compliant for long-term use in a solar photovoltaic system.
Reasons Why UF-B Wire Should Not Be Used
- Lack of UV Resistance
UF-B's gray PVC outer jacket degrades rapidly under direct sunlight, leading to cracks and failures.
- Low Temperature Rating
Most UF-B cables are rated for only 60°C, while solar cables need at least 90°C or higher.
- NEC Code Non-Compliance
NEC requires PV systems to use wires like PV Wire or USE-2. UF-B is not approved, risking code violations.
- Safety Hazards
Aging insulation increases the risk of short circuits, arcing, and even fire hazards.
UF-B Wire vs PV Wire: Detailed Comparison
| Feature | UF-B Wire | PV Wire |
|---|---|---|
| Designed For | Underground, outdoor residential power | Solar photovoltaic systems |
| UV Resistance | No | Yes, UL-certified Sunlight Resistant |
| Temperature Rating | 60°C | 90°C – 105°C |
| Insulation | Single-layer PVC | Double insulation, durable and abrasion-resistant |
| Lifespan | 5–10 years | 25+ years |
| NEC Compliance | Limited | Fully compliant |
| Safety | Moderate | High, purpose-built for solar |
PV Wire is specifically engineered for solar applications, ensuring durability, safety, and compliance. UF-B wire simply cannot match these critical performance standards.
How to Choose the Right Solar Wiring
Selecting the proper wire for your solar system ensures safety, efficiency, and longevity. Here's how to make the best choice:
Verify NEC Compliance
- Check the wire's printed markings for UL certification and Sunlight Resistant labels.
- Confirm that its temperature rating is 90°C or higher.
Recommended Wire Types
- PV Wire: The gold standard for outdoor, exposed solar applications.
- USE-2 Wire: Ideal for module-to-junction box connections.
- THHN/THWN-2 Wire: Common for indoor-to-outdoor transitions.
Buying Tips
- Copper vs. Aluminum Conductors:
Copper has superior conductivity but costs more.
Aluminum is lighter and cheaper but requires a larger gauge.
- Wire Size Calculation Formula:
Wire Size = (2 × Distance × Current × Resistance Factor) ÷ Voltage Drop
- Durability Factors:
Choose double-insulated, water-resistant, and abrasion-resistant cables for maximum safety.
Why Choose Dongguan Greater Wire & Cable Co., Ltd.
As a leading manufacturer of high-quality wires and cables, Dongguan Greater Wire & Cable Co., Ltd. specializes in solar PV wiring solutions and offers comprehensive products and services.
Fully Certified Products
Our products are UL and CUL certified, meeting strict international standards.
We provide a complete range of solar cables, including PV Wire, USE-2, and THHN types.
Professional Technical Support
Our team offers one-stop service from project design to installation and after-sales support.
Whether for a large-scale commercial project or a small residential system, we deliver customized solutions tailored to your needs.
Contact Us Today
If you are looking for reliable, NEC-compliant solar wires, reach out to us:
