In home renovations, commercial buildings, or outdoor electrical installations, UF-B Cable (Underground Feeder-B Cable) has become a widely used choice due to its high performance, durability, and waterproof properties. However, many users face a critical question during installation: how to safely and professionally splice UF-B cable? This article provides a comprehensive guide on splicing UF-B cables and introduces how to choose high-quality UF-B wire to ensure every connection is safe and reliable.
What is UF-B Cable?

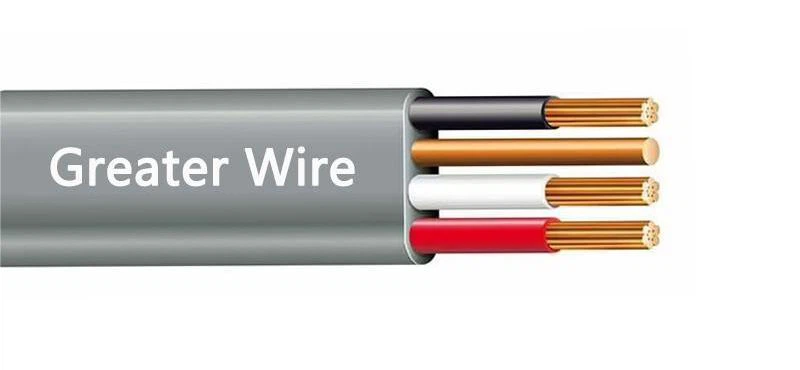

UF-B Cable, short for Underground Feeder-B Cable, is specially designed for underground or outdoor installations. Compared to standard electrical cables, it offers several distinct advantages:
- Strong Waterproof and Weather Resistance: UF-B cables have a durable PVC outer jacket resistant to UV, abrasion, and moisture, allowing direct burial underground without additional conduits.
- Multi-Core Copper Design: Multiple copper cores inside ensure stable transmission, suitable for outdoor lighting, outlets, and equipment power supply.
- High Temperature and Corrosion Resistance: Ideal for outdoor environments including high heat, humidity, rain, and mild chemical exposure.
- Difference from Other Cables: Unlike NM-B cables, UF-B can be buried directly without conduit and features thicker insulation, providing a higher safety factor.
Choosing high-quality UF-B cables ensures stable power transmission and reduces long-term maintenance costs, making it a reliable investment.
Why Do You Need to Splice UF-B Cable?
In practical applications, splicing UF-B cables is usually necessary in the following scenarios:
Extending Cable Length
On-site projects often require longer cable runs than standard lengths. Splicing is the most direct way to extend cables.
Repairing Damaged Cables
During underground construction or transportation, cables may be cut or damaged. Splicing allows quick repair, avoiding the high cost of replacing the entire cable.
Connecting Different Devices or Accessories
Different devices, such as lighting fixtures, outlets, and switches, often require connecting multiple cables. Safe and reliable splicing ensures stable power supply.
Proper splicing not only ensures electrical safety but also extends the lifespan of the cable.
Tools and Materials Needed
Before splicing UF-B cables, it is essential to prepare the following tools and materials to ensure smooth operation:
Tools
- Wire Stripper / Multi-Tool: To remove the outer jacket and strip the copper conductors.
- Wire Cutter: To cut cables to the required length or trim wires.
- Screwdriver: For installing wire connectors or terminals.
- Heat Gun: For shrinking heat shrink tubing for waterproofing.
- Multimeter (optional): To test continuity and resistance after splicing.
Materials
- UF-B Cable: Select the appropriate gauge for your project.
- Wire Nuts / Crimp Connectors / Terminal Connectors: Ensure secure connections.
- Heat Shrink Tubing or Electrical Tape: For insulation and waterproofing.
- Waterproof Sealant: For outdoor splices.
UF-B Cable Stripping and Preparation
Before splicing, UF-B cables must be properly stripped and prepared:
- Measure and Cut the Cable: Measure the required length and cut the cable using wire cutters.
- Strip the Outer Jacket: Remove approximately 5–10 cm of the PVC jacket without damaging the inner copper wires.
- Separate Conductors: Arrange the copper wires by color or function to prepare for splicing.
- Inspect Conductors: Ensure all copper wires are intact, without breaks or damage.
Common Splicing Methods
Using Wire Nuts
- Twist the stripped copper wires together and secure them with a wire nut.
- Tighten properly to ensure a solid connection.
- For outdoor use, cover with heat shrink tubing or electrical tape for waterproofing.
Using Crimp Connectors
- Insert copper wires into the connector and crimp with a proper tool.
- Cover with heat shrink tubing for waterproofing and insulation.
- Ideal for long-term or high-load applications.
Twisting and Taping (Temporary Use Only)
- Twist copper wires together and wrap with electrical tape.
- Not recommended for long-term use as it provides limited waterproofing and durability.
Safety Precautions
- Turn Off Power: Always disconnect the power source before splicing.
- Wear Insulated Gloves: Protect yourself from electric shock.
- Avoid Wet Environments: Prevent electric shock or short circuits.
- Ensure Secure Connections: All conductors must be tightly connected to avoid fire or short circuits.
Waterproofing and Protection
- Heat Shrink Tubing: Cover the splice with heat shrink tubing and use a heat gun to secure it.
- Electrical Tape: Additional wrapping for extra protection.
- Buried Installations: Avoid placing splices in areas prone to standing water.
Testing and Inspection
- Continuity Test: Use a multimeter to verify that connections are conductive.
- Resistance Test: Check that the splice resistance is normal and there is no excessive heat.
- Load Test: Connect the actual load and observe cable performance to ensure safety.
Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| Loose Connection | Wires not twisted tightly or crimped poorly | Re-crimp or tighten wire nuts |
| Damaged Cable | Cut or crushed during installation | Remove damaged section and splice again |
| Poor Waterproofing | Heat shrink not applied properly or tape loose | Extend heat shrink tubing and reheat |
