1. Understanding XHHW and XHHW-2 Wires
XHHW (Cross-Linked Polyethylene High Heat-Resistant Water-Resistant) wire is a type of electrical cable designed for durability and resistance to environmental stressors. Its insulation consists of cross-linked polyethylene (XLPE), a material known for its excellent thermal stability, abrasion resistance, and moisture resistance.
The XHHW-2 wire is an upgraded version of XHHW, offering enhanced performance in extreme conditions. Both cables are rated for 600V applications, but their suitability for wet locations depends on specific certifications and construction features.
2. Wet Location Ratings: XHHW vs. XHHW-2

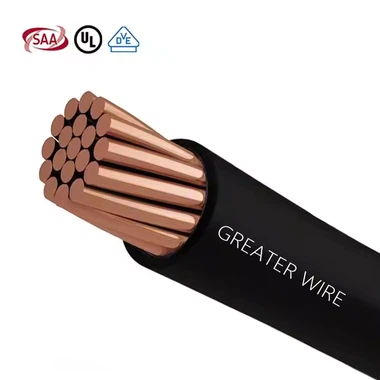

XHHW Wire in Wet Locations
Standard XHHW wire is not universally rated for wet locations. According to UL 44 standards, XHHW is primarily approved for dry and damp environments, with a maximum conductor temperature of 90°C in dry conditions. However, its moisture-resistant XLPE insulation allows it to perform in damp locations (e.g., indoors with occasional humidity).

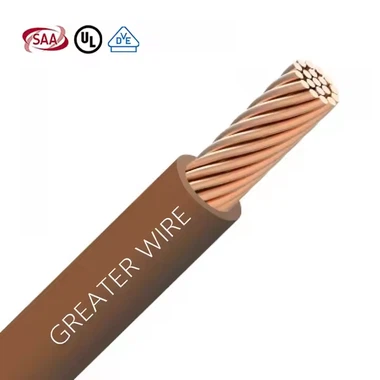

XHHW-2 Wire: The Wet Location Solution
In contrast, XHHW-2 wire is explicitly rated for wet and dry locations. Its insulation and jacketing materials undergo additional chemical cross-linking, enabling it to withstand prolonged exposure to water, humidity, and temperature fluctuations. Key advantages include:
Temperature Tolerance: Rated for 90°C in both wet and dry environments.
Sunlight and Moisture Resistance: UV-stabilized XLPE insulation prevents degradation in outdoor or underground installations.
Compliance with UL 44 and NEC: Approved for conduit, direct burial, and raceway applications per the National Electrical Code (NEC).
3. Technical Specifications of XHHW-2 Wire 600V
XHHW-2 wire's construction ensures reliability in harsh conditions:
Conductor Material: Available in aluminum or copper. Aluminum variants (e.g., 300 MCM, 2 AWG) are cost-effective for large-scale projects, while copper offers superior conductivity.
Insulation: XLPE provides resistance to abrasion, heat (up to 90°C), and chemicals.
Voltage Rating: 600V, suitable for power distribution, service entrance cables, and photovoltaic systems.
Standards Compliance: Meets UL 44, UL 854, and UL 1581, ensuring compatibility with U.S. and international electrical codes.
4. Applications in Wet Environments
XHHW-2's wet location rating makes it ideal for:
Underground Installations: Direct burial in conduits for outdoor lighting or irrigation systems.
Industrial Facilities: Wiring in chemical plants, wastewater treatment centers, or marine environments.
Solar Power Systems: Photovoltaic (PV) arrays exposed to rain, snow, and humidity.
Commercial Buildings: Service entrance cables and feeder lines in humid basements or rooftops.
5. Key Differences Between XHHW and XHHW-2
|
Feature |
XHHW Wire |
XHHW-2 Wire |
|---|---|---|
|
Wet Location Rating |
Limited to damp |
Fully rated |
|
Temperature Range |
90°C (dry) |
90°C (wet/dry) |
|
Insulation |
XLPE |
Enhanced XLPE |
|
Common Uses |
Indoor conduits |
Outdoor/underground |
6. Choosing the Right Wire for Wet Locations
When selecting between XHHW and XHHW-2, consider:
Environmental Exposure: For constant moisture, XHHW-2 is mandatory.
Cost vs. Longevity: XHHW-2 may have a higher upfront cost but reduces long-term maintenance risks.
Certifications: Verify UL listings and NEC compliance for your region.
7. Industry Standards and Certifications
XHHW-2 wire meets stringent requirements:
UL 44: Governs thermoset-insulated wires for 600V–2000V applications.
NEC Article 310: Specifies installation guidelines for wet locations.
CSA Standards: Recognized in Canada for similar applications.
8. Supplier Spotlight: Reliable XHHW-2 Sources
Manufacturers like Qingdao Qingcang Technology Co., Ltd. (China) and Nassau National Cable (U.S.) produce UL-certified XHHW-2 cables. Key products include:
300 MCM Aluminum XHHW-2: $130 for 50–1000 ft lengths, ideal for high-amperage systems.
2 AWG Aluminum XHHW-2: $80 for 100–1000 ft, used in power distribution.
