In industrial electrical installations, cables often need to travel beyond cable trays to reach motors, control panels, sensors, and other equipment. Choosing a cable for these connections requires more than checking its voltage rating or conductor size. Installers must also understand the cable's listing, permitted installation methods, and protection requirements.
This is where TC-ER cable becomes important. The term "Exposed Run" indicates that a properly listed and marked tray cable may be used for certain exposed wiring applications under specified conditions. It does not mean the cable can be installed anywhere without additional protection.
This guide explains what exposed run means for TC-ER cable, how it differs from other cable types, and what electrical contractors, engineers, and procurement teams should verify before selecting a product.
1. What Does Exposed Run Mean for TC-ER Cable?
TC-ER stands for Tray Cable–Exposed Run. It identifies a tray cable that is suitable for certain exposed-run installations when the cable is appropriately listed and marked and the installation complies with the applicable electrical code.
Traditional Type TC cable is commonly installed in cable trays in industrial facilities. However, machinery and electrical equipment are not always positioned directly beside the tray. Cables may need to leave the tray and continue to a motor, control cabinet, or other utilization equipment.
A qualifying TC-ER cable can provide an option for these connections without requiring every exposed section to be installed in a separate raceway. Whether a particular installation is permitted depends on the applicable National Electrical Code (NEC) edition, the cable's listing, and the physical conditions at the installation site.
What Does "Exposed" Actually Mean?
In this context, "exposed" describes the wiring installation method, not simply whether a cable can be seen.
An exposed run may include a section of cable routed outside a cable tray to reach equipment. The cable remains subject to requirements governing support, securing, and protection against physical damage.
For example, a cable connecting a tray to a nearby motor may qualify for exposed-run installation if the product and installation meet the applicable requirements.
By contrast, a cable routed through an area where forklifts, sharp metal edges, moving machinery, or other hazards could damage it may need additional mechanical protection or a different wiring method.
The key point: TC-ER does not mean "unprotected cable suitable for every environment." It means the cable is intended for specific exposed-run applications under defined conditions.
2. How Does TC-ER Cable Work Under NEC Requirements?
In the United States, Type TC cable installations are addressed by NEC Article 336. The applicable edition and local amendments should always be checked because requirements can change.
The code establishes where Type TC cable may be used and under what conditions. The TC-ER designation is particularly relevant when an installation requires qualifying exposed runs beyond cable trays.
Common Installation Considerations
Before approving an exposed-run installation, verify the following:
Cable listing: Confirm that the exact product is listed and marked for the intended TC-ER application.
Support and securing: Follow the applicable code requirements for supporting and securing the cable.
Physical protection: Evaluate whether the route exposes the cable to impact, crushing, abrasion, or other physical damage.
Environmental suitability: Confirm that the cable is rated for the expected sunlight, moisture, oil, temperature, and other environmental conditions.
Circuit requirements: Verify voltage, conductor sizing, grounding, and ampacity requirements.
Local approval: Confirm compliance with the adopted NEC edition and the authority having jurisdiction (AHJ).
A cable's TC-ER marking does not automatically establish suitability for hazardous locations, direct burial, continuous-flex applications, or every outdoor installation.
Does Every Exposed Run Require a Conduit?
Not necessarily. A properly listed TC-ER cable may be permitted for qualifying exposed runs under the applicable NEC conditions. However, additional protection may be necessary where the cable is subject to physical damage or where another code provision requires a different wiring method.
The correct decision depends on the installation location, cable construction, routing, and applicable code requirements. Installers should not assume that every exposed section is permitted simply because the cable carries a TC-ER marking.
3. What Is the Difference Between Type TC and TC-ER Cable?
Type TC and TC-ER are closely related designations, but the distinction matters when planning industrial wiring.
Type TC generally refers to tray cable intended for installations permitted by its listing and applicable code. TC-ER identifies a tray cable that also qualifies for specified exposed-run applications.
| Feature | Type TC Cable | TC-ER Cable |
|---|---|---|
| Primary application | Permitted cable-tray and other listed wiring methods | Permitted tray installations and qualifying exposed runs |
| Exposed-run suitability | Must be verified; ordinary TC marking alone does not establish TC-ER permission | Specifically identified for qualifying exposed-run use |
| Installation requirements | Applicable product listing and NEC requirements | Applicable product listing, NEC requirements, and exposed-run conditions |
| Mechanical protection | Depends on the installation conditions and applicable rules | Required where specified by code or where physical-damage protection is necessary |
| Typical applications | Industrial power and control wiring | Industrial wiring between trays and equipment, where permitted |
When reviewing a quotation, do not rely only on a product description such as "industrial tray cable." Confirm the actual cable designation, listing, and markings.
For projects requiring exposed runs, this simple verification can help prevent the purchase of a cable that does not meet the installation specification.
4. TC-ER Cable Installation Method: What Should Installers Check?
The correct TC-ER Cable Installation Method depends on the cable's listing, the adopted code, and the installation environment.
Although exposed-run installations can simplify industrial wiring, they still require careful route planning and mechanical protection.
Step 1: Confirm the Cable Is Suitable
Review the product datasheet and certification information. Check the voltage rating, conductor size, insulation system, jacket material, and required TC-ER marking.
If the project specifies additional properties, such as sunlight resistance or oil resistance, confirm that the exact cable carries the appropriate rating or marking.
Step 2: Plan the Cable Route
Identify the path from the cable tray to the connected equipment. Avoid unnecessary exposure to sharp edges, moving components, hot surfaces, and areas where maintenance work could damage the cable.
Where the cable passes through equipment enclosures or metal openings, ensure that the routing and entry arrangements comply with applicable requirements.
Step 3: Provide Appropriate Support
Install supports and secure the cable in accordance with the applicable code and manufacturer instructions.
Unsupported cable sections may sag, experience excessive mechanical stress, or become vulnerable to damage. Support spacing should be determined from the applicable requirements rather than assumed from the cable's appearance.
Step 4: Assess Physical-Damage Risks
Review the route for potential impact, crushing, abrasion, and interference with machinery.
Where physical damage is likely, use an approved protective method or choose a more suitable wiring arrangement. A TC-ER designation does not remove the obligation to protect the installation.
Step 5: Verify Environmental Conditions
Check ambient temperature, moisture, sunlight exposure, oil, chemicals, and other site conditions.
Not every TC-ER cable has the same environmental ratings. A product suitable for an indoor manufacturing area may not be suitable for an exposed outdoor route.
Step 6: Complete the Code and Certification Review
Before installation, verify the adopted NEC edition, applicable local requirements, the cable's certification, and any project-specific restrictions.
For projects outside the United States, do not assume that a TC-ER marking automatically satisfies IEC, CSA, AS/NZS, or local regulatory requirements. Confirm the approvals required in the destination market.
5. TC-ER vs PLTC Cable: What Is the Difference?
The comparison TC-ER vs PLTC Cable is important when selecting products for industrial power, control, and instrumentation systems.
TC-ER and PLTC are different cable designations associated with different applications and product requirements. They should not be treated as interchangeable simply because both may be used in industrial facilities.
PLTC stands for Power-Limited Tray Cable. It is associated with power-limited control and signaling circuits and is covered by the applicable requirements for PLTC cable, including UL 13 where relevant.
TC-ER, by contrast, identifies tray cable with exposed-run suitability for qualifying applications.
| Comparison | TC-ER Cable | PLTC Cable |
|---|---|---|
| Full designation | Tray Cable–Exposed Run | Power-Limited Tray Cable |
| Typical circuit applications | Industrial power and control circuits within the product's ratings | Power-limited control, instrumentation, and signaling circuits |
| Product-standard framework | UL 1277 for covered power and control tray cables | UL 13 for covered power-limited circuit cables |
| Voltage rating | Commonly 600 V, depending on the product | Commonly associated with lower-voltage power-limited applications; check the specific rating |
| Exposed-run permission | Depends on the TC-ER listing and applicable code conditions | Must be verified under the applicable PLTC listing and installation rules |
| Key selection factor | Circuit requirements and permitted installation method | Circuit classification, electrical requirements, and permitted installation method |
Can PLTC Cable Replace TC-ER Cable?
Not automatically. The suitability of a cable depends on the circuit, product listing, voltage rating, installation method, and applicable code.
A PLTC cable approved for a power-limited signaling circuit should not be substituted for a TC-ER cable specified for an industrial power or control application without a complete technical and code review.
Similarly, a TC-ER cable should not automatically replace PLTC cable where the project requires a particular power-limited circuit cable designation.
The safest approach is to match the cable to the circuit and installation requirements rather than selecting products solely by their appearance or general industrial use.
6. Is TC-ER Cable the Same as THHN Nylon Jacket Cable?
No. A THHN Nylon Jacket Cable search may return products that look similar to industrial tray cables, but THHN and TC-ER describe different aspects of cable construction and application.
THHN is a conductor insulation designation used in the North American wire and cable industry. It commonly describes an individual insulated conductor with a thermoplastic insulation system and a nylon outer covering.
TC-ER, on the other hand, identifies a complete tray-cable assembly with qualifying exposed-run suitability.
| Feature | THHN Wire | TC-ER Cable |
|---|---|---|
| Product form | Typically an individual insulated conductor | Typically a multiconductor cable assembly |
| Outer construction | Individual conductor insulation with a nylon covering | Multiple insulated conductors under an overall cable jacket |
| Typical installation | Permitted raceways and other approved wiring methods | Permitted tray installations and qualifying exposed runs |
| Application | General building and industrial conductor wiring | Industrial power and control cable installations |
| Substitution | Must follow the applicable conductor and wiring-method requirements | Must follow the applicable tray-cable listing and installation requirements |

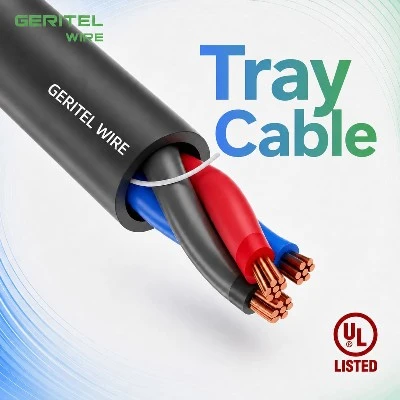

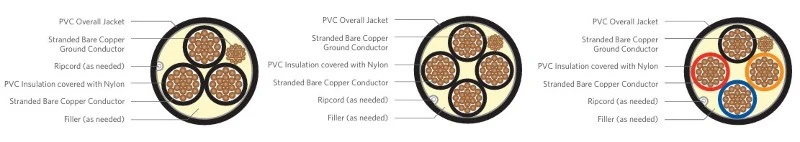

Some TC-ER products may incorporate conductors with THHN or other recognized insulation designations, depending on their construction and certification.
However, the presence of THHN-insulated conductors inside a cable does not automatically make the complete assembly a listed TC-ER cable.
When the project specification calls for TC-ER, buyers should verify the complete cable's listing rather than relying on the insulation designation of its individual conductors.
7. Can TC-ER Cable Be Used in a Solar Power System?
A TC-ER Cable for Solar Power System search requires particular care because solar installations include several different circuit types.
A solar photovoltaic (PV) system may include DC wiring between modules, string circuits, inverter connections, AC output circuits, monitoring circuits, and control wiring. Each part of the system may have different electrical and environmental requirements.
Where TC-ER May Be Relevant
Depending on the specific cable listing and applicable codes, TC-ER cable may be considered for certain permitted industrial control or power wiring applications associated with solar equipment.
For example, a project may include control connections between equipment cabinets or auxiliary systems where the cable's ratings and installation permissions are suitable.
Where Additional Verification Is Essential
TC-ER should not automatically be used as a substitute for cable specifically listed for photovoltaic source circuits or other solar DC applications.
Before selecting a cable for a solar installation, confirm:
The circuit's maximum operating voltage and current.
Whether the application involves PV source circuits, output circuits, AC power, or control wiring.
The required PV cable or other applicable product listing.
Sunlight, wet-location, temperature, and environmental ratings.
The applicable NEC requirements, including relevant provisions of Article 690 where applicable.
Compatibility with the equipment manufacturer's installation instructions.
A cable that is suitable for industrial tray wiring may not meet the requirements for direct PV module connections. The correct choice depends on the exact circuit and the approvals required for that application.
8. What Should Buyers Look for When Sourcing TC-ER Cable?
For distributors, contractors, and original equipment manufacturers (OEMs), purchasing the correct TC-ER cable starts with a clear technical specification.
Certification and Product Documentation

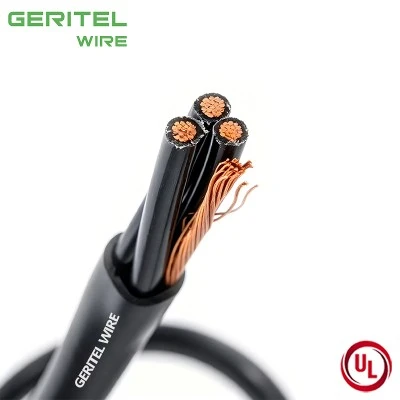

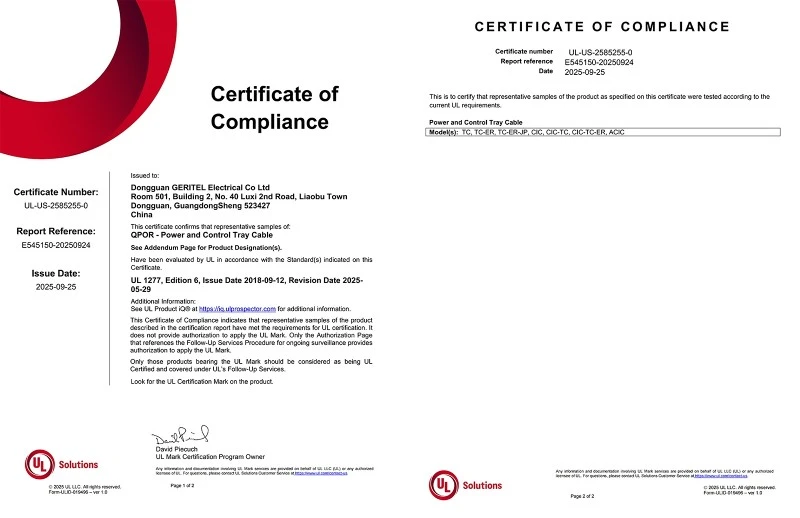

Ask the supplier for the exact cable designation, applicable listing information, datasheet, and product markings.
Where certification is required, verify that it applies to the specific product being quoted. General claims such as "UL compliant" or "industrial grade" are not sufficient substitutes for checking the actual certification.
Electrical Ratings
Confirm the voltage rating, conductor material, conductor size, number of conductors, grounding configuration, and applicable temperature ratings.
These details help determine whether the cable is suitable for the intended circuit and installation.
Environmental and Mechanical Requirements
Identify whether the installation requires sunlight resistance, oil resistance, moisture resistance, enhanced abrasion protection, or other specific characteristics.
For outdoor equipment or demanding industrial environments, these properties can be as important as the basic electrical ratings.
Supplier Capability
When evaluating a TC-ER Cable Manufacturer, review its ability to provide clear technical documentation, consistent product specifications, and cable constructions appropriate for the target market.
For buyers sourcing from an Industrial Cable Factory TC-ER, it is useful to provide a detailed inquiry that identifies the application, required cable designation, conductor size, voltage rating, temperature rating, environmental conditions, and any mandatory approvals.
This information helps the supplier assess the request and reduces the risk of receiving an unsuitable product quotation.
9. Common Mistakes to Avoid
Even experienced procurement teams can encounter cable-selection problems when product terminology is misunderstood.
Mistake 1: Assuming "Exposed Run" means no protection is needed.
TC-ER permits only qualifying exposed-run installations. Support, securing, and protection against physical damage remain important.
Mistake 2: Assuming all tray cables are TC-ER.
A cable described as Type TC does not automatically have exposed-run suitability. Verify the exact designation and listing.
Mistake 3: Treating TC-ER and PLTC as interchangeable.
Their intended applications and product requirements differ. Confirm that the cable is appropriate for the specific circuit.
Mistake 4: Using THHN wire as a direct substitute.
Individual THHN conductors and complete TC-ER cable assemblies have different construction and installation requirements.
Mistake 5: Assuming TC-ER is suitable for every outdoor or solar application.
Environmental ratings and circuit-specific approvals must be checked independently.
Mistake 6: Ignoring the destination market.
UL and NEC requirements are primarily associated with the U.S. regulatory framework. Other markets may require different certifications and installation rules.
Conclusion
Exposed run is an important part of understanding TC-ER cable selection. The designation identifies tray cable suitable for certain exposed wiring applications, but it does not grant unrestricted installation permission or eliminate the need for mechanical protection.
Before specifying TC-ER cable, verify the product's listing, voltage and temperature ratings, environmental properties, support requirements, and the applicable electrical code. Also distinguish TC-ER from PLTC cable and individual THHN conductors, particularly when considering substitutions or specialized applications such as solar power systems.
For successful procurement, start with the intended circuit and installation conditions, then select a cable whose certification and construction meet the project requirements.
